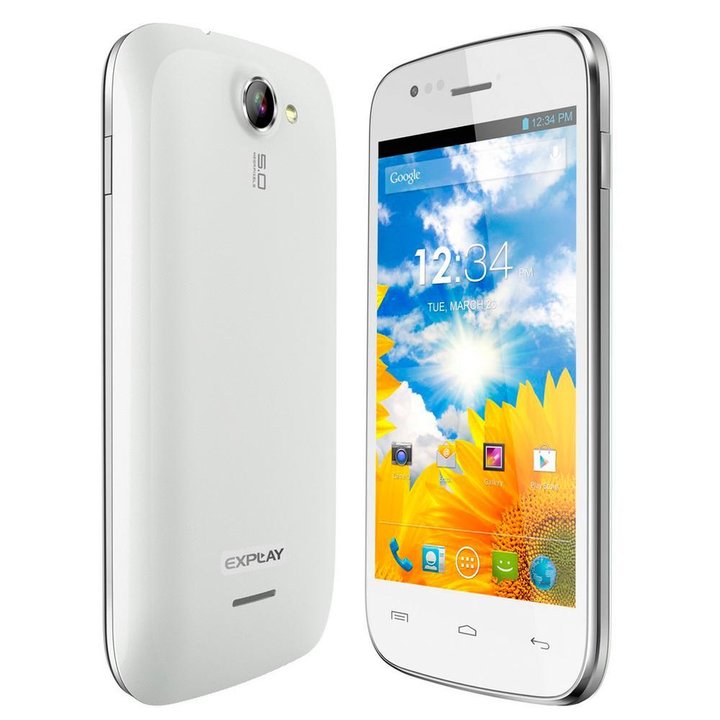

Explay A400
Explay A400
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Explay A400 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Explay A400, Step 1/1 How to disassemble Explay A400, Step 1/2

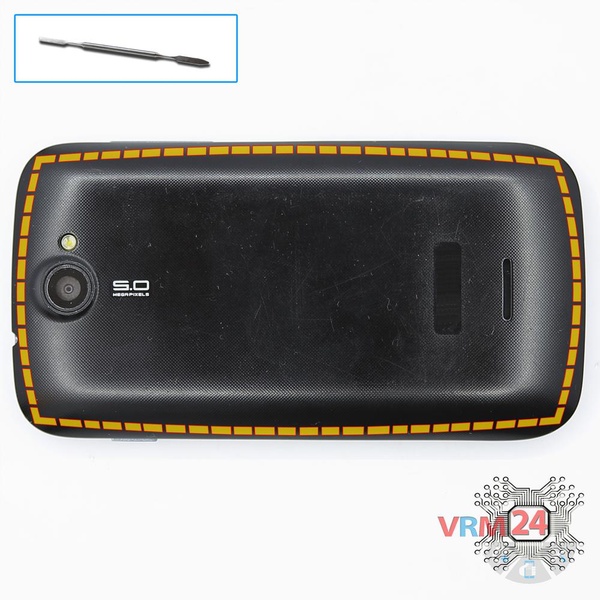

Step 1.

Open the back cover.

How to disassemble Explay A400, Step 2/1 How to disassemble Explay A400, Step 2/2

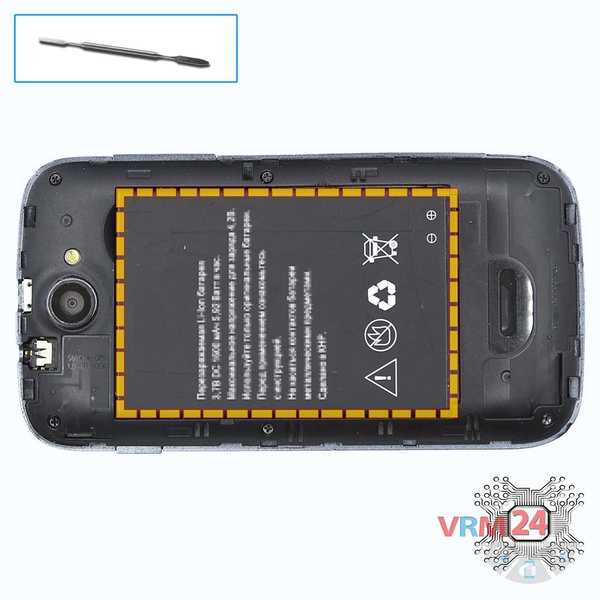

Step 2.

Lift and remove the battery.

How to disassemble Explay A400, Step 3/1 How to disassemble Explay A400, Step 3/2

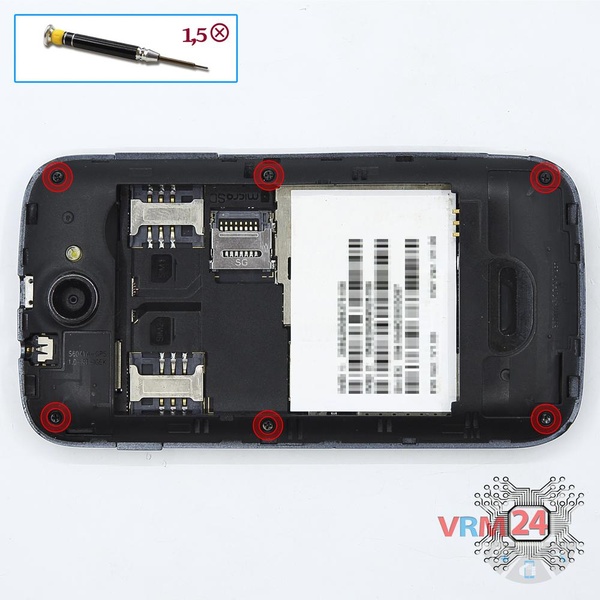

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the frame of the phone.

How to disassemble Explay A400, Step 4/1 How to disassemble Explay A400, Step 4/2

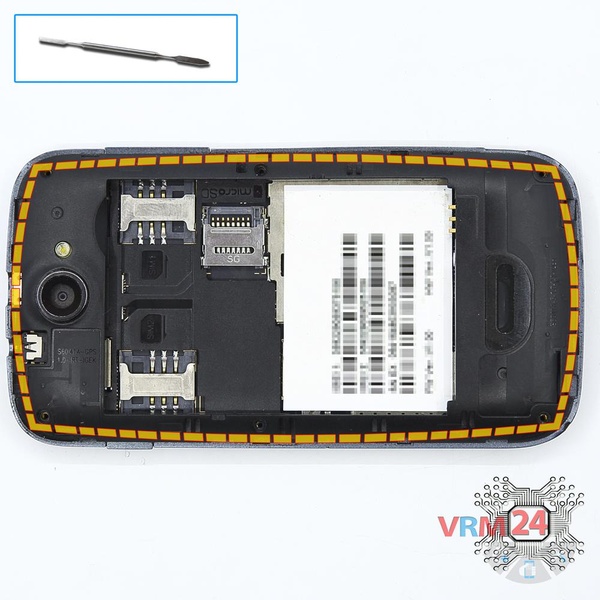

Step 4.

Pry and remove the middle frame.

How to disassemble Explay A400, Step 5/1 How to disassemble Explay A400, Step 5/2

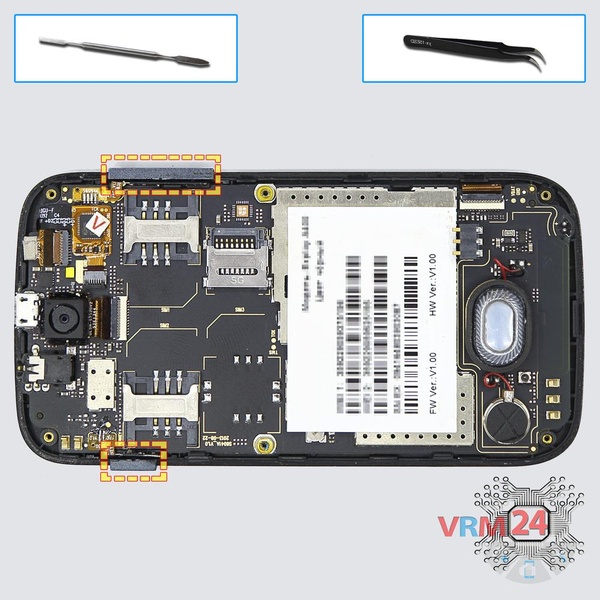

Step 5.

Remove the keys of the volume and power buttons.

How to disassemble Explay A400, Step 6/1 How to disassemble Explay A400, Step 6/2

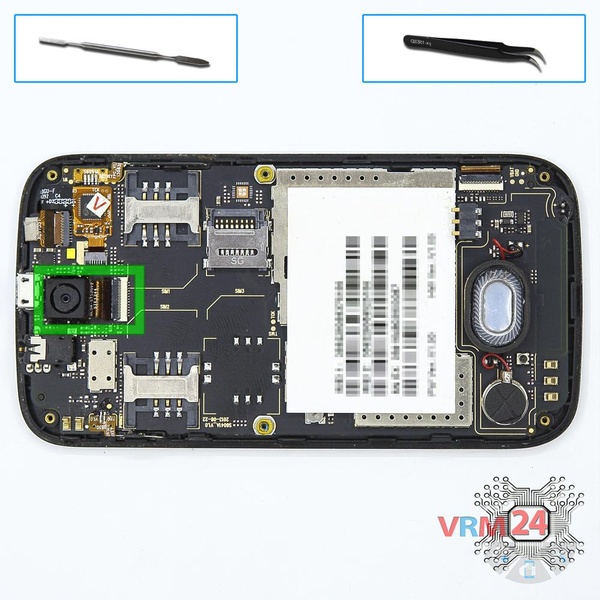

Step 6.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Explay A400, Step 7/1 How to disassemble Explay A400, Step 7/2

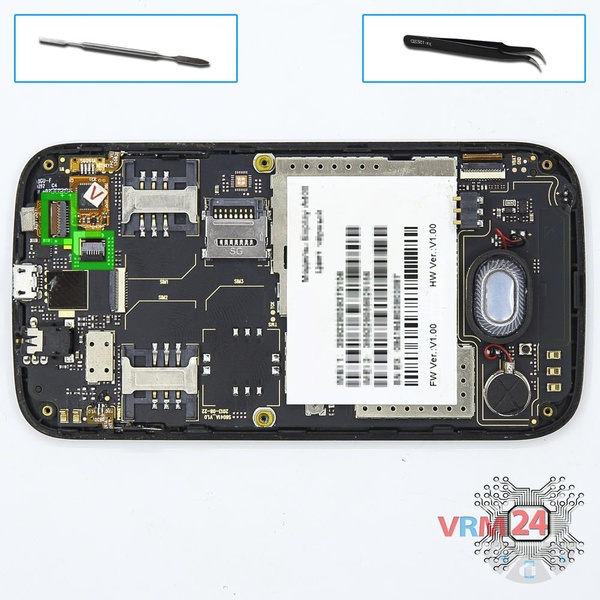

Step 7.

Disconnect connector on the PCB.

How to disassemble Explay A400, Step 8/1 How to disassemble Explay A400, Step 8/2

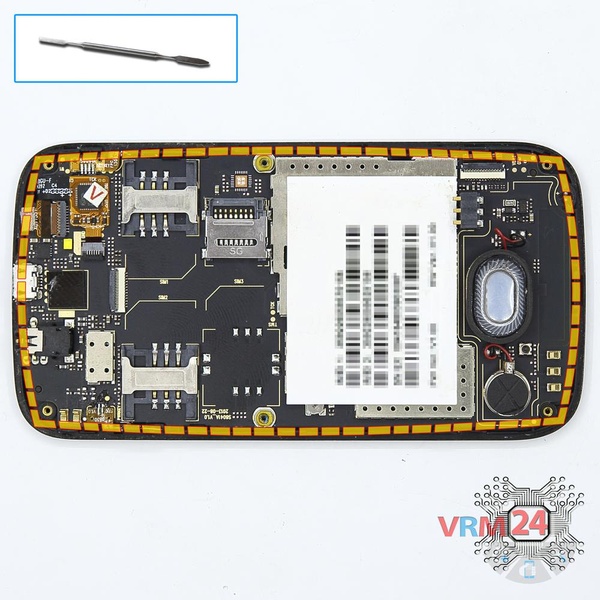

Step 8.

Remove the PCB.

How to disassemble Explay A400, Step 9/1

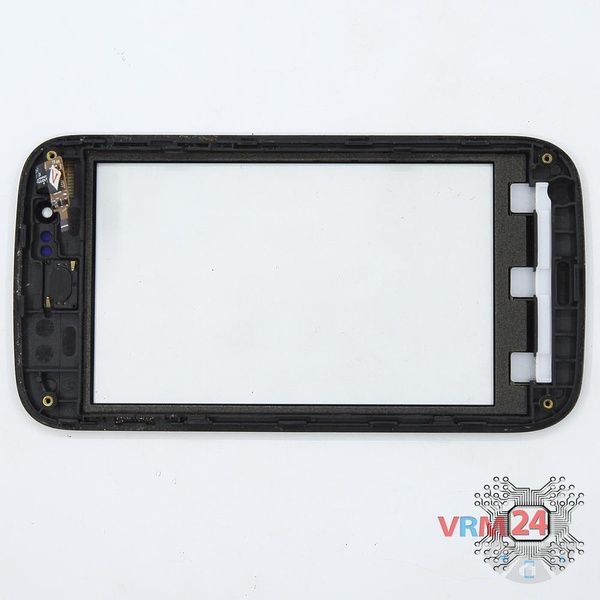

Step 9.

The touchscreen.

How to disassemble Explay A400, Step 10/1 How to disassemble Explay A400, Step 10/2 How to disassemble Explay A400, Step 10/3

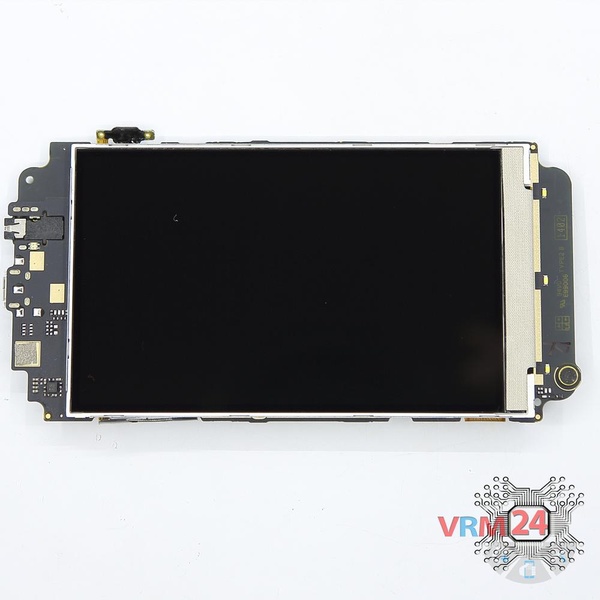

Step 10.

The display.

Detailed disassembly instructions of Explay A400 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Explay #Explay A400
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Explay A400 released for markets in different countries.
