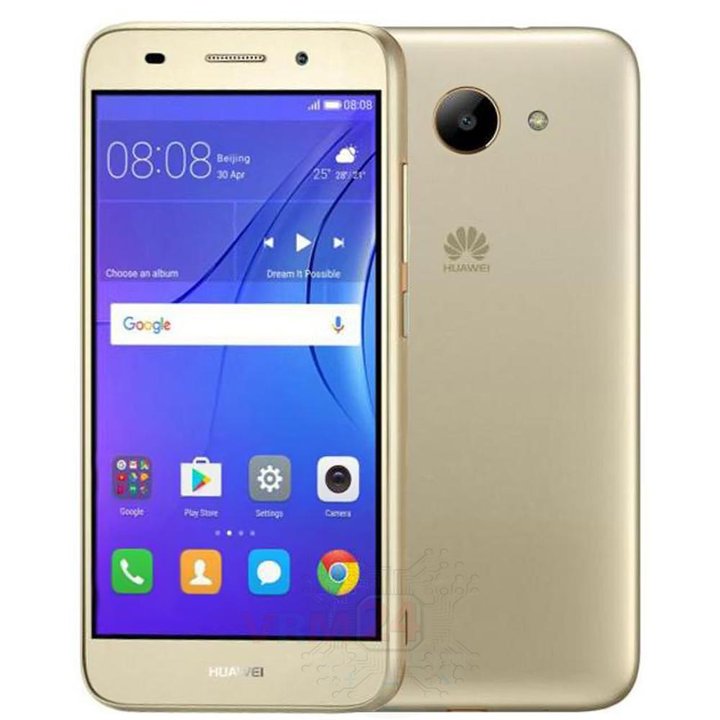

Huawei Y3 (2017)
Huawei Y3 (2017)
Teardown difficulty:
Easy

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Huawei Y3 (2017) (Huawei Y3 2017 CRO-U00) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

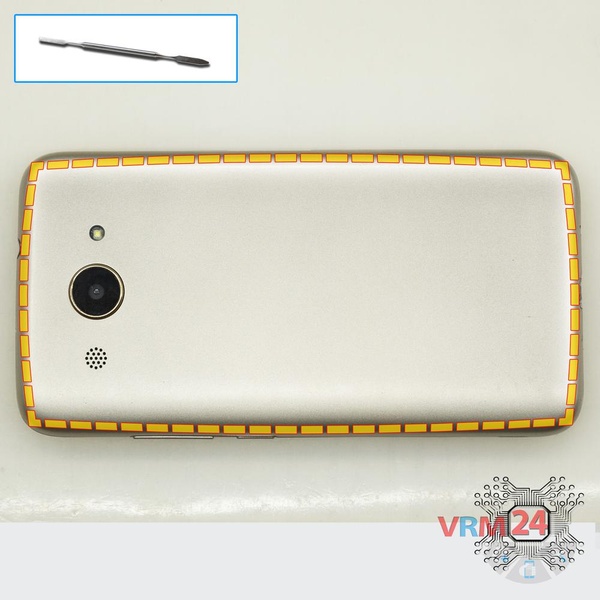

How to disassemble Huawei Y3 (2017), Step 1/1 How to disassemble Huawei Y3 (2017), Step 1/2

Step 1.

Open the back cover.

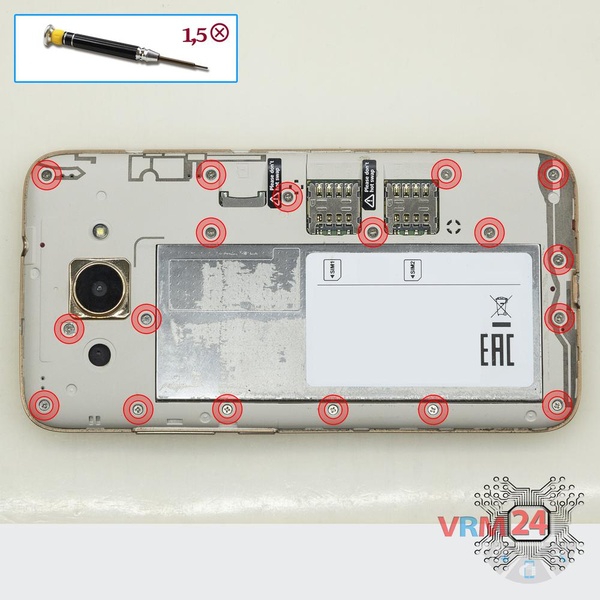

How to disassemble Huawei Y3 (2017), Step 2/1 How to disassemble Huawei Y3 (2017), Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 18 bolts in the frame of the phone.

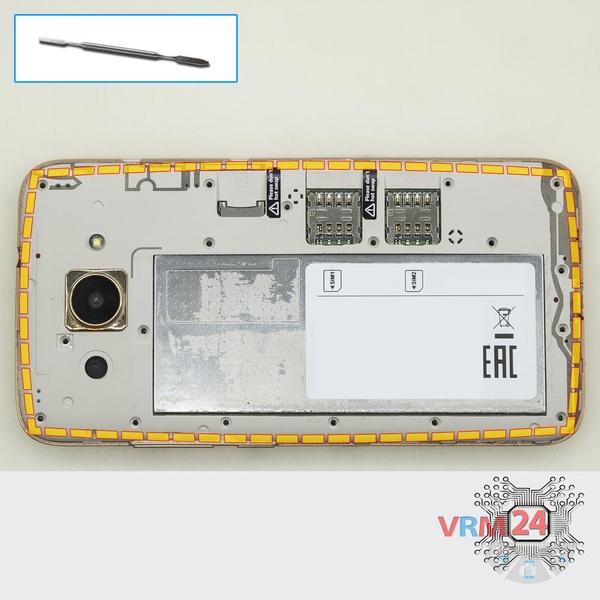

How to disassemble Huawei Y3 (2017), Step 3/1 How to disassemble Huawei Y3 (2017), Step 3/2

Step 3.

Pry and remove the middle frame.

How to disassemble Huawei Y3 (2017), Step 4/1 How to disassemble Huawei Y3 (2017), Step 4/2 How to disassemble Huawei Y3 (2017), Step 4/3

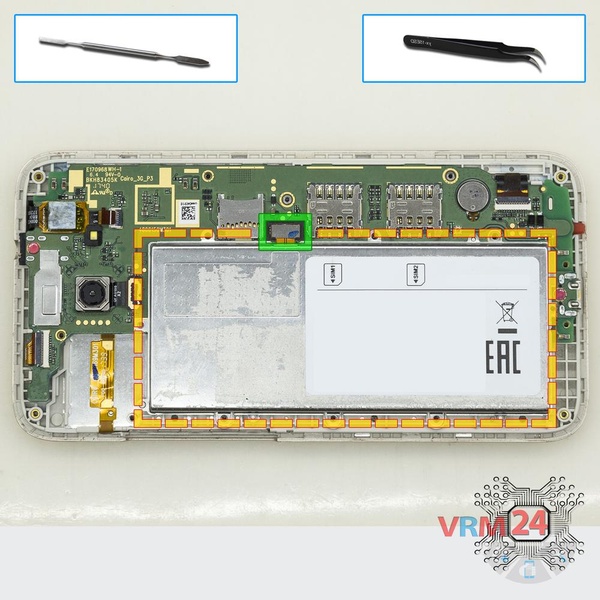

Step 4.

Disconnect the connector on PCB and remove the battery.

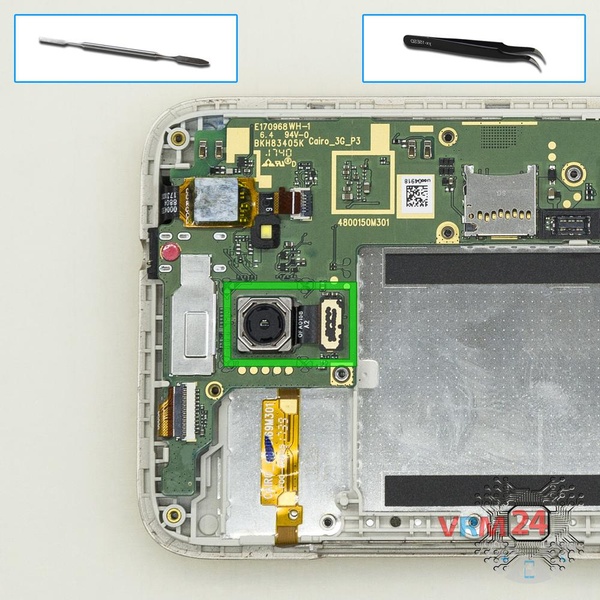

How to disassemble Huawei Y3 (2017), Step 5/1 How to disassemble Huawei Y3 (2017), Step 5/2

Step 5.

Disconnect the connector on PCB, and remove the main camera.

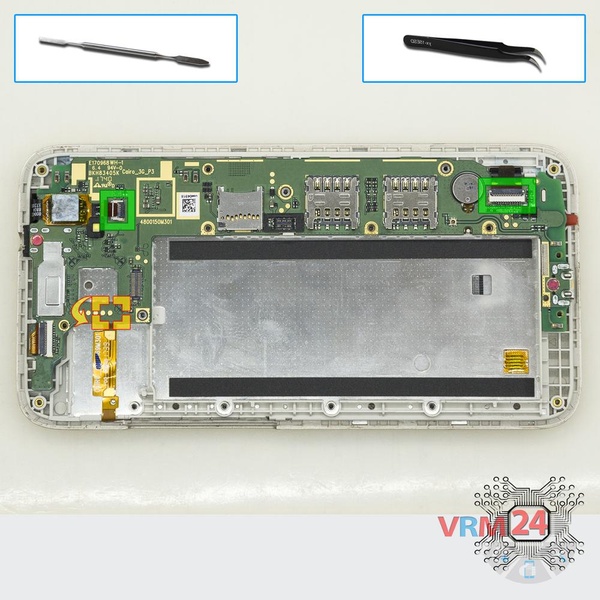

How to disassemble Huawei Y3 (2017), Step 6/1 How to disassemble Huawei Y3 (2017), Step 6/2 How to disassemble Huawei Y3 (2017), Step 6/3

Step 6.

Disconnect connectors on the PCB.

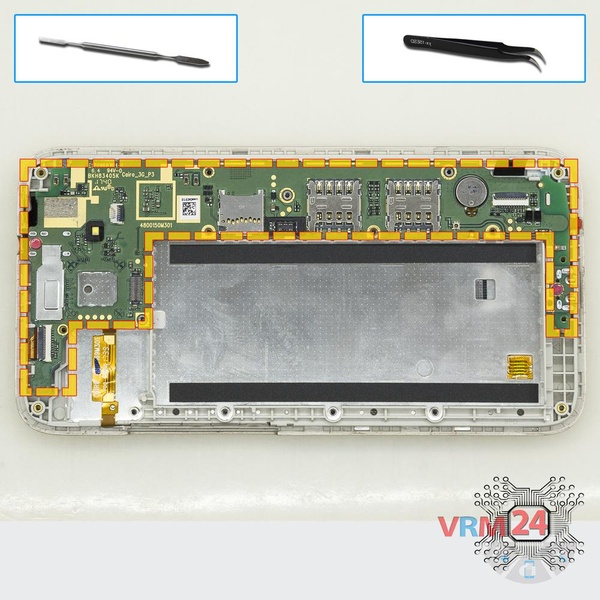

How to disassemble Huawei Y3 (2017), Step 7/1 How to disassemble Huawei Y3 (2017), Step 7/2

Step 7.

Remove the PCB.

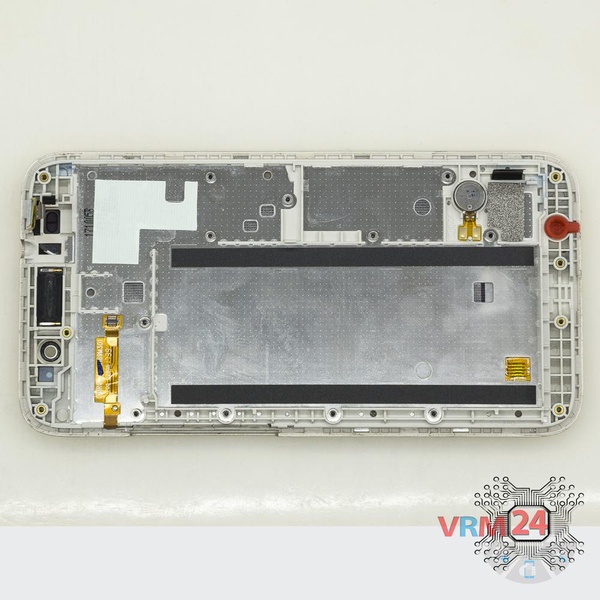

How to disassemble Huawei Y3 (2017), Step 8/1 How to disassemble Huawei Y3 (2017), Step 8/2 How to disassemble Huawei Y3 (2017), Step 8/3

Step 8.

Parts are in the frame of the display module.

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei Y3 (2017)
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about minutes in time.
Our manual is suitable for all models Huawei Y3 (2017) — Huawei Y3 2017 CRO-U00 released for markets in different countries.
