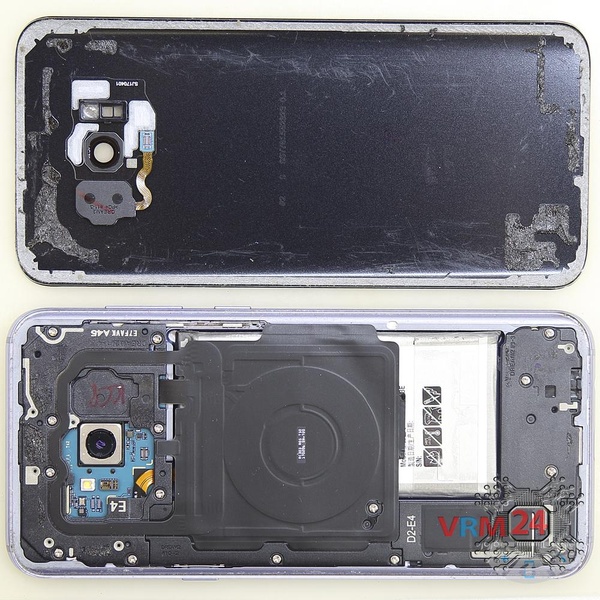

Open the back cover.
⚠️ Warning!
For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.
Teardown difficulty:
Hard
Hard
Duration:
13 min
13 min
Recommended tools
Disassembly/Repair of the mobile device Samsung Galaxy S8 Plus SM-G955 (Samsung G955F (Europe, Global Single-SIM); G955FD (Global Dual-SIM); G955W (Canada); G955A (AT&T); G955P (Sprint); G955T (T-Mobile); G955V (Verizon); G955R4 (US Cellular); G955U (USA Unlocked); G955S/G955K/G955L (South Korea); G9550 (China)) with each step description and the required set of tools.
Step 2.

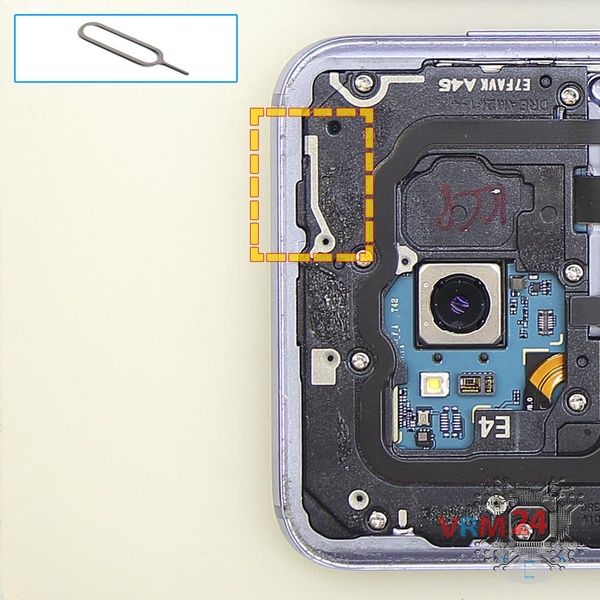

Using the key tool, open the SIM card tray and remove it.
⚠️ Warning!
Do not push too hard this may cause damage.
Step 5.

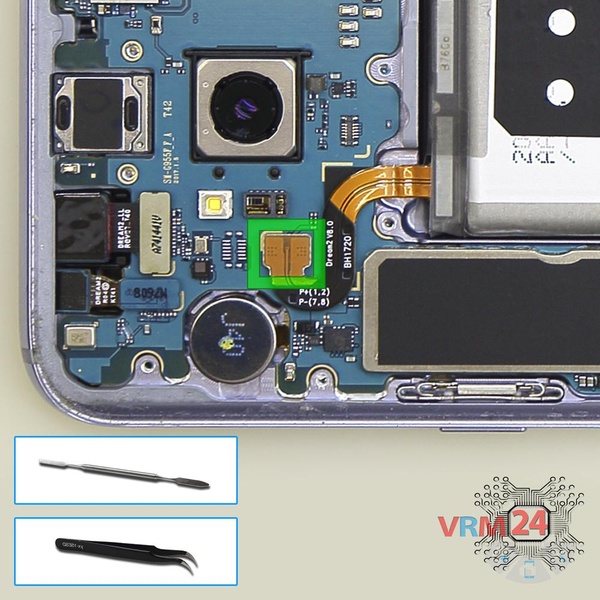

Disconnect the battery connector.
⚠️ Warning!
We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.
Step 8.

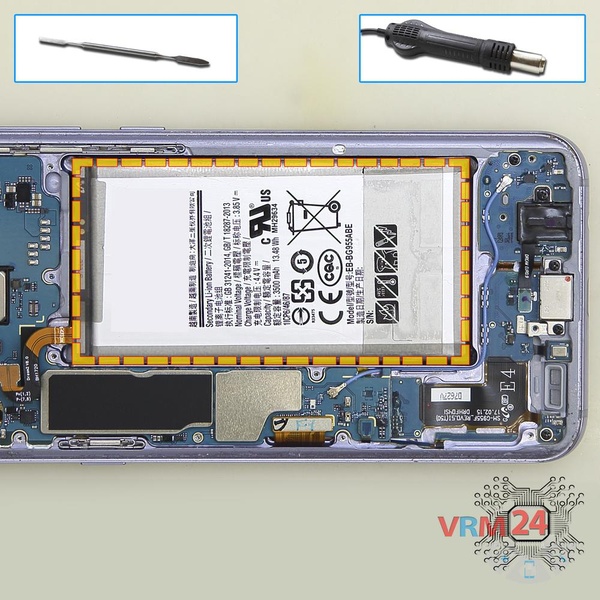

Separate the battery from the display frame.
⚠️ Warning!
For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.
Step 11.

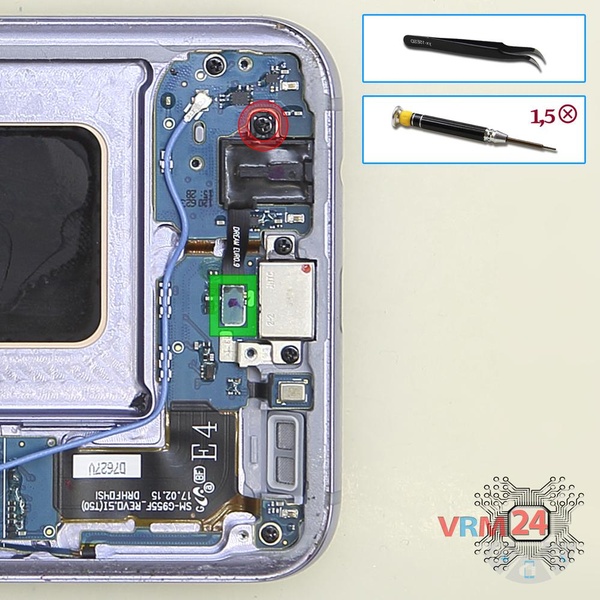

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt. Pry up the connector and remove the headphone jack/socket.
Detailed disassembly instructions of Samsung Galaxy S8 Plus SM-G955 in the video, made by our mobile repair & service center:
If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.
Disassembling\Repair has hard complexity and takes about 13 minutes in time.
Our manual is suitable for all models Samsung Galaxy S8 Plus SM-G955 — Samsung G955F (Europe, Global Single-SIM); G955FD (Global Dual-SIM); G955W (Canada); G955A (AT&T); G955P (Sprint); G955T (T-Mobile); G955V (Verizon); G955R4 (US Cellular); G955U (USA Unlocked); G955S/G955K/G955L (South Korea); G9550 (China) released for markets in different countries.
