Samsung Galaxy Tab E 9.6'' SM-T560
Samsung Galaxy Tab E 9.6'' SM-T560
Teardown difficulty:
Easy
Duration:
9 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Tab E 9.6'' SM-T560 (Samsung Galaxy Tab E 9.6'' SM-T561) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 1/1 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 1/2

Step 1.

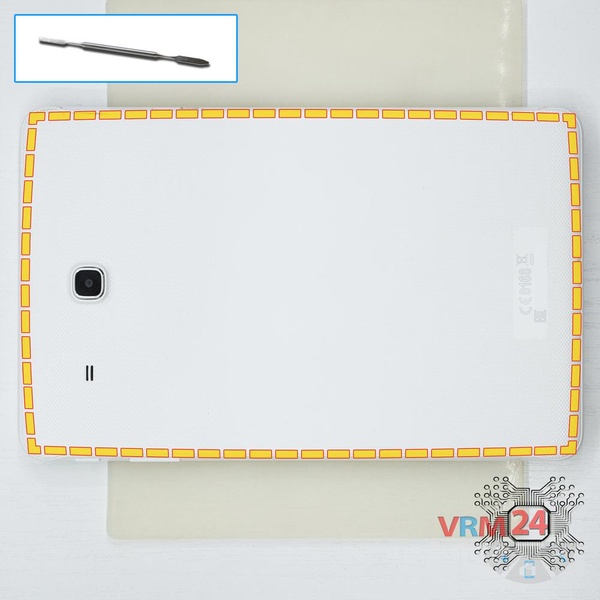

Open the back cover.

How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 2/1 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 2/2 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 2/3

Step 2.

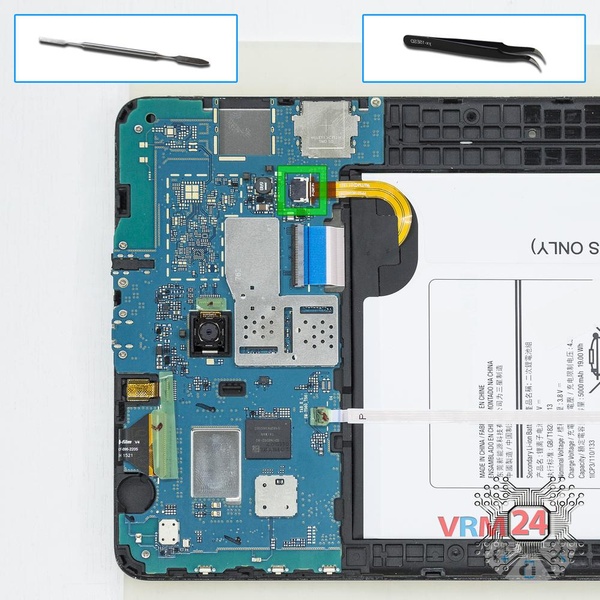

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 3/1 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 3/2 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 3/3 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 3/4 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 3/5

Step 3.

Peel off the protective stickers, pry up the connectors and remove inter-board cable.

How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 4/1 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 4/2

Step 4.

Remove the protective stickers.

How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 5/1 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 5/2 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 5/3

Step 5.

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 6/1 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 6/2

Step 6.

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 7/1 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 7/2

Step 7.

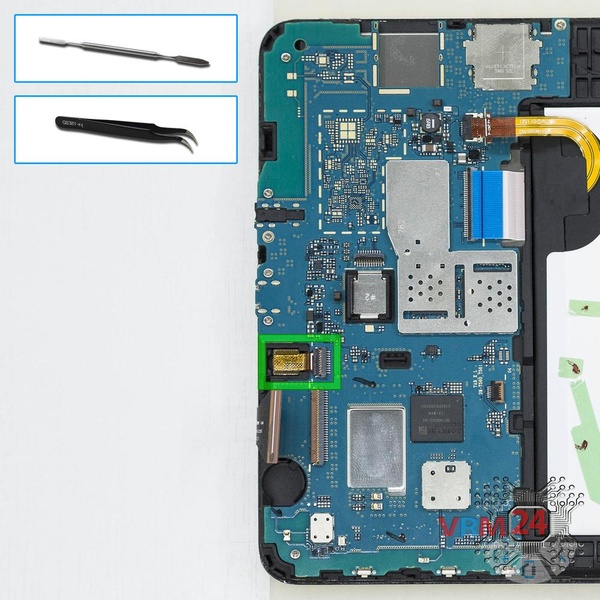

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 8/1 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 8/2

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the PCB.

How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 9/1 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 9/2

Step 9.

Remove the PCB.

How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 10/1 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 10/2 How to disassemble Samsung Galaxy Tab E 9.6'' SM-T560, Step 10/3

Step 10.

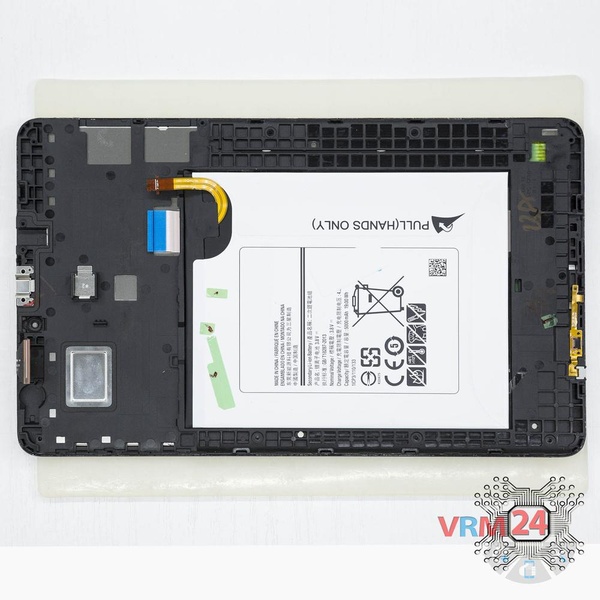

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy Tab E 9.6'' SM-T560 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy Tab E 9.6'' SM-T560
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 9 minutes in time.
Our manual is suitable for all models Samsung Galaxy Tab E 9.6'' SM-T560 — Samsung Galaxy Tab E 9.6'' SM-T561 released for markets in different countries.
