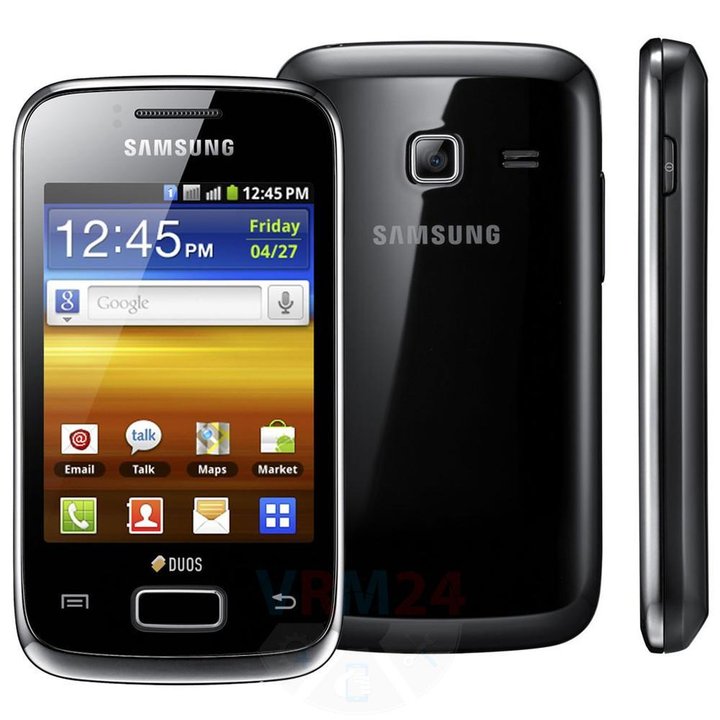

Samsung Galaxy Y Duos GT-S6102
Samsung Galaxy Y Duos GT-S6102
Teardown difficulty:
Easy
Duration:
3 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Y Duos GT-S6102 (Samsung GT-S6102, Samsung GT-S6102B) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 1/1 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 1/2

Step 1.

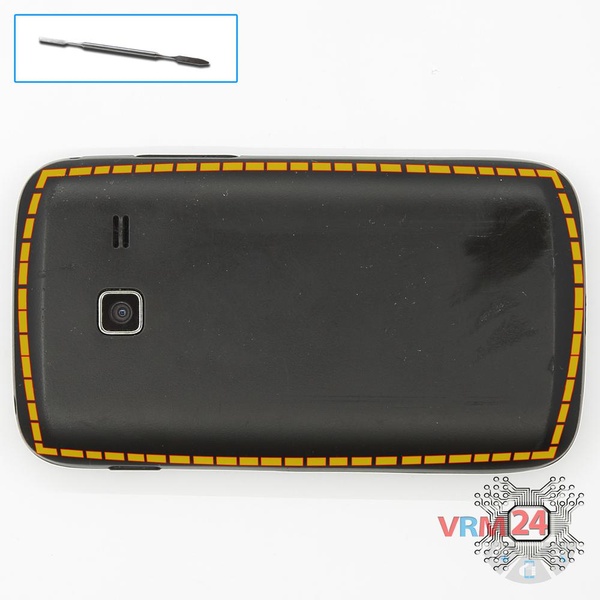

Open the back cover.

How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 2/1 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 2/2

Step 2.

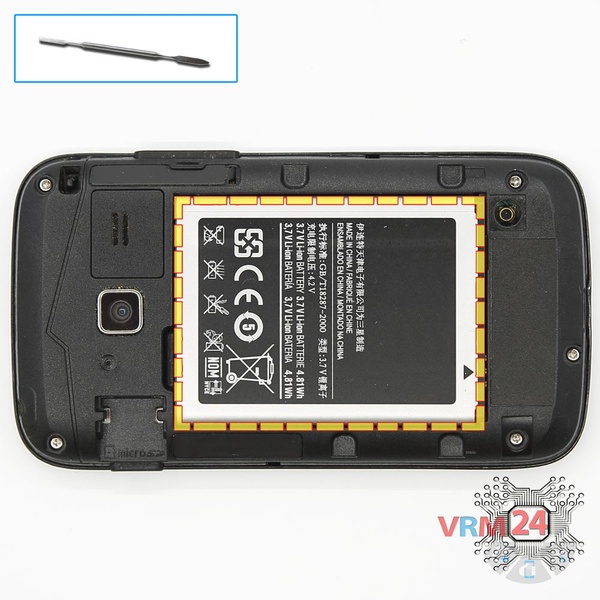

Lift and remove the battery.

How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 3/1 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 3/2

Step 3.

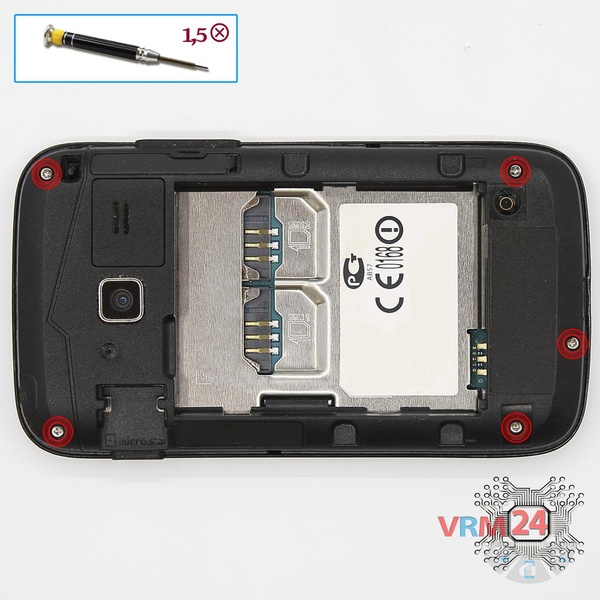

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts in the frame of the phone.

How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 4/1 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 4/2

Step 4.

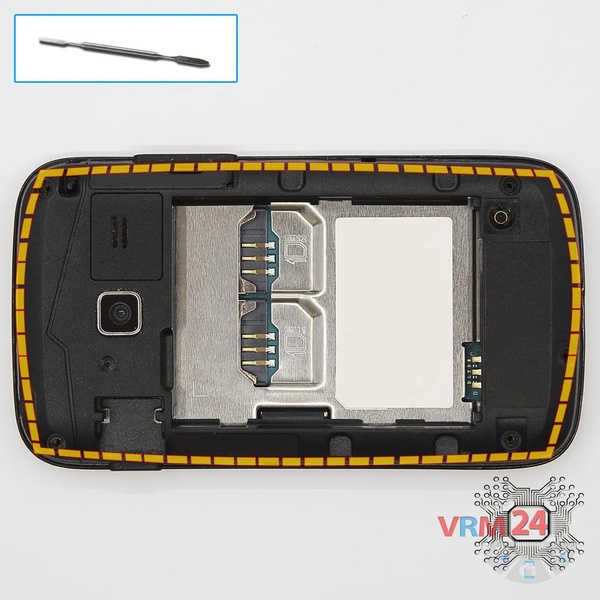

Pry and remove the middle frame.

How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 5/1 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 5/2 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 5/3

Step 5.

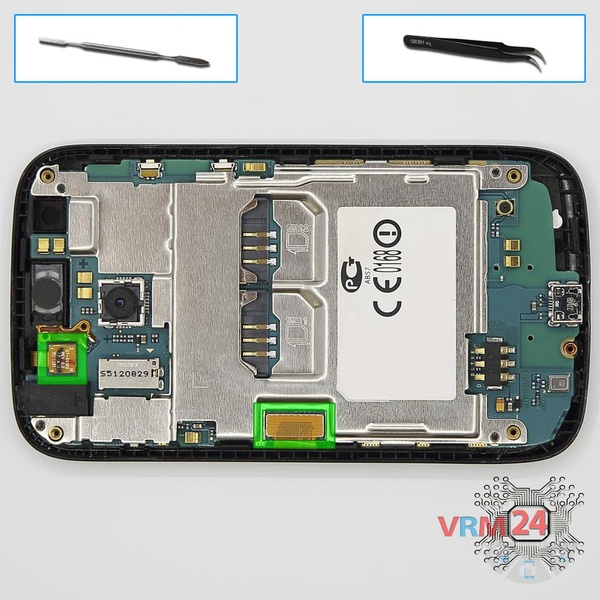

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 6/1 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 6/2

Step 6.

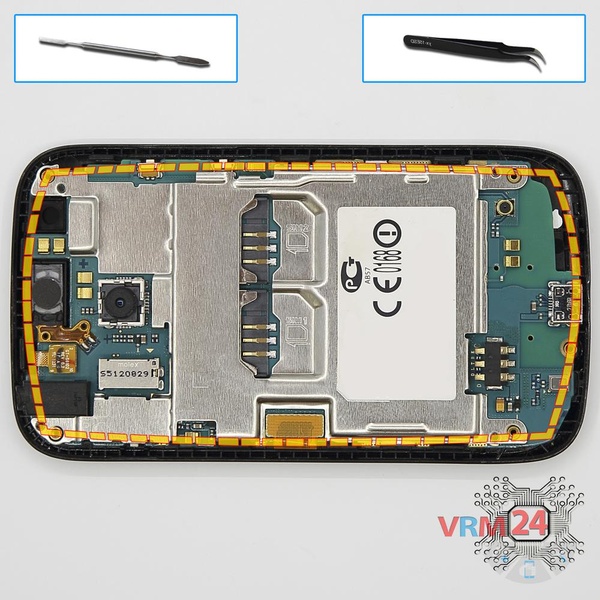

Remove the PCB.

How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 7/1

Step 7.

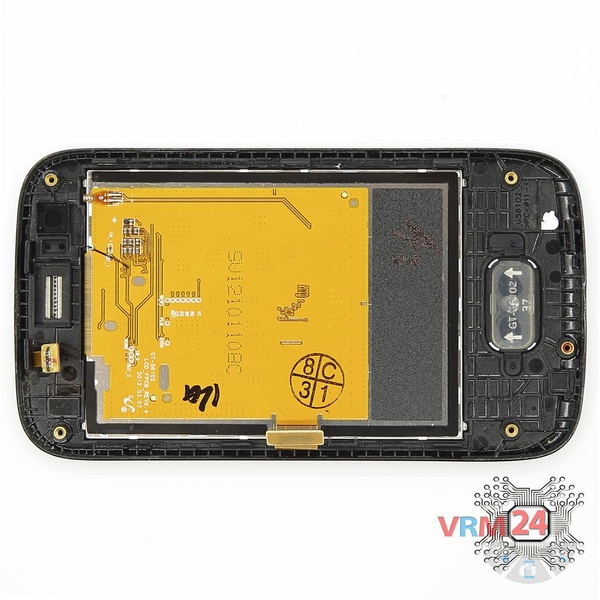

Parts are in the frame of the display module.

How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 8/1 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 8/2

Step 8.

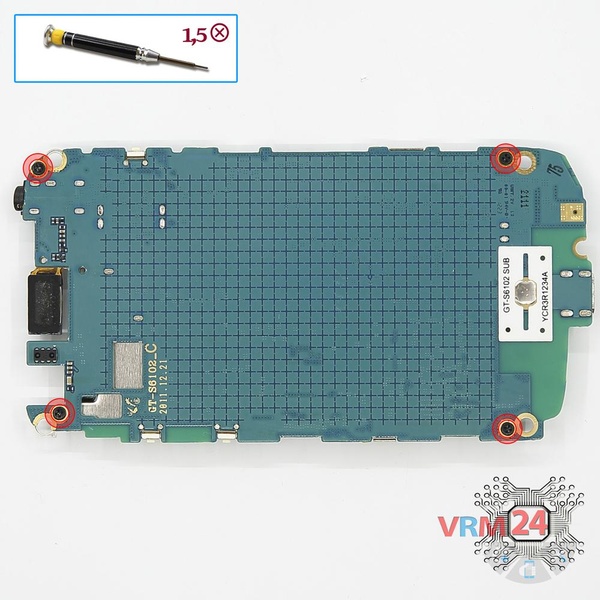

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts and remove the protective cover/shield.

Detailed disassembly instructions of Samsung Galaxy Y Duos GT-S6102 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy Y Duos GT-S6102
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Samsung Galaxy Y Duos GT-S6102 — Samsung GT-S6102, Samsung GT-S6102B released for markets in different countries.
