☝️ Detailed disassembly instructions available at: Link

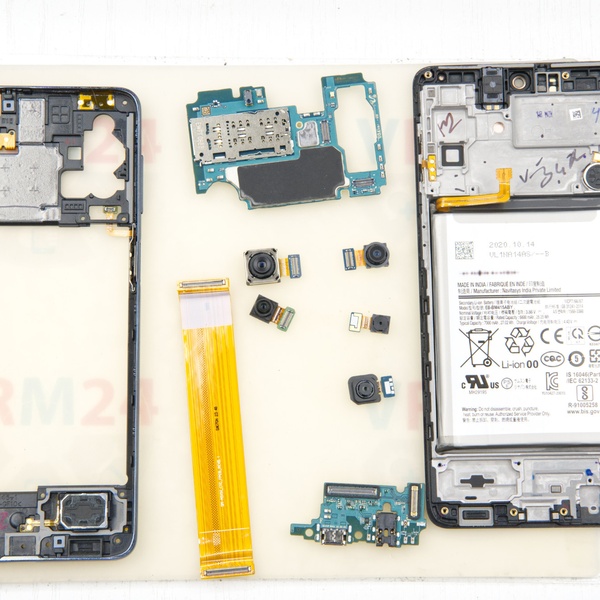

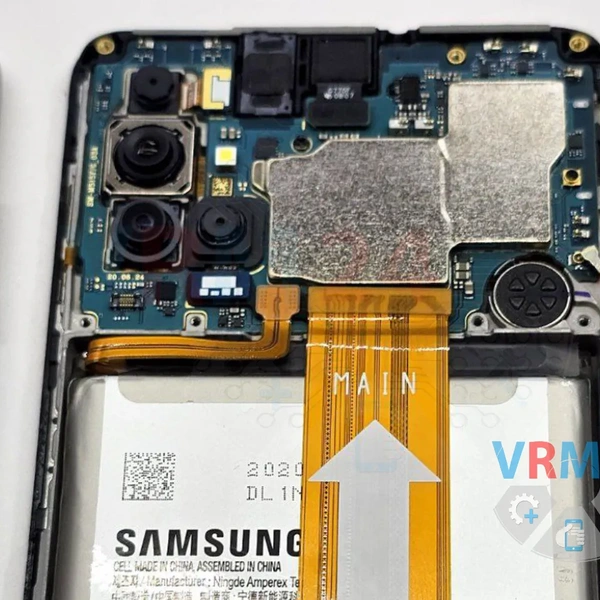

1️⃣ Our first step is disassembling the phone.
We already know that this model, like similar ones, often has connectors and external contacts that break due to poor design.

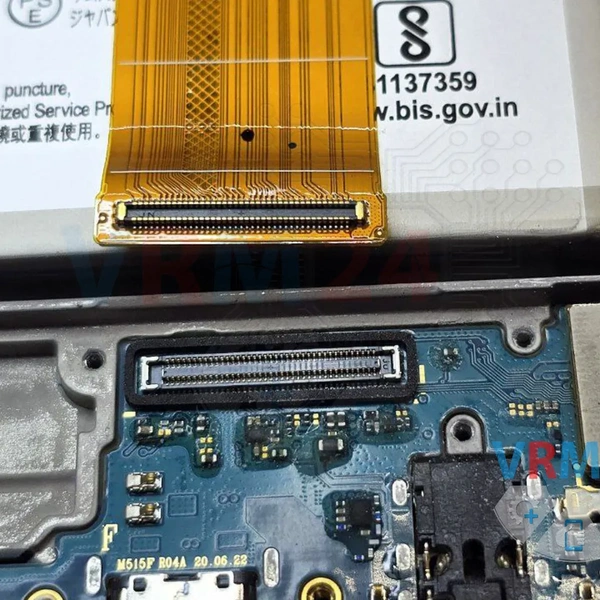

2️⃣ The next step is to inspect the connectors on the sub-board and on the interboard cable.
A visual inspection shows that everything is in order.

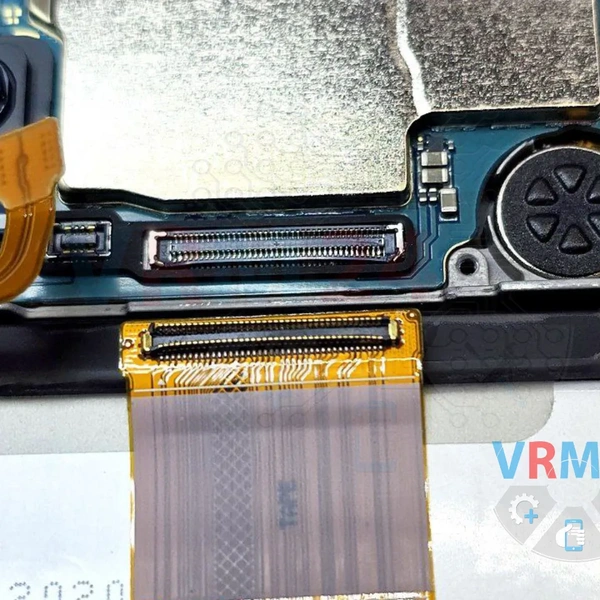

3️⃣ After that, we inspect the connector on the main board and on the inter-board cable at the top.
It is evident that both connectors are damaged and need replacement.
4️⃣ Our fourth step is preparing the new connectors.

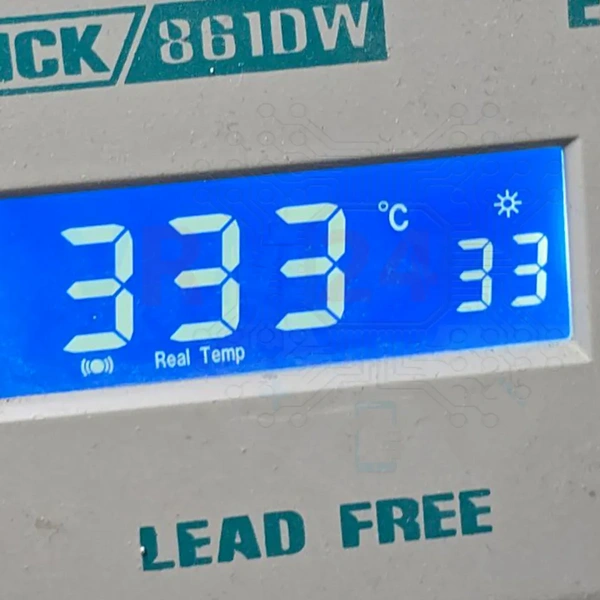

Set the hot air soldering station to 330° С or 625° F, medium airflow, and proceed with replacing the damaged inter-board cable connector.

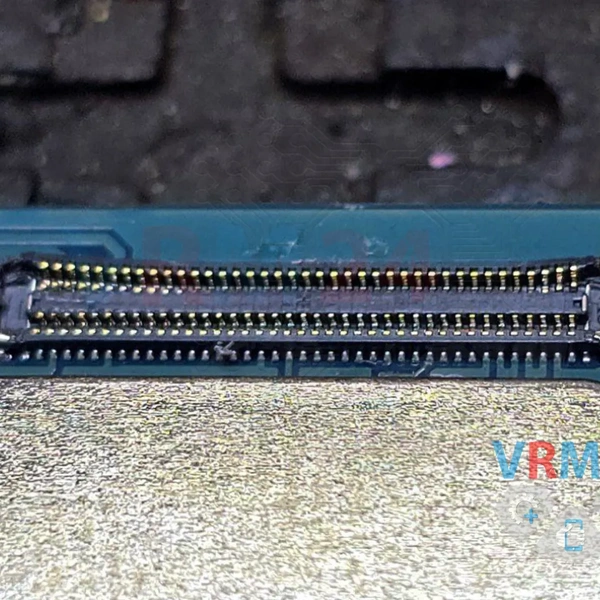

5️⃣ Finally, we replace the connector on the main board.
Replace the connector and additionally solder the outer contacts to increase the reliability of the connection.
6️⃣ In the end, we perform a work check.

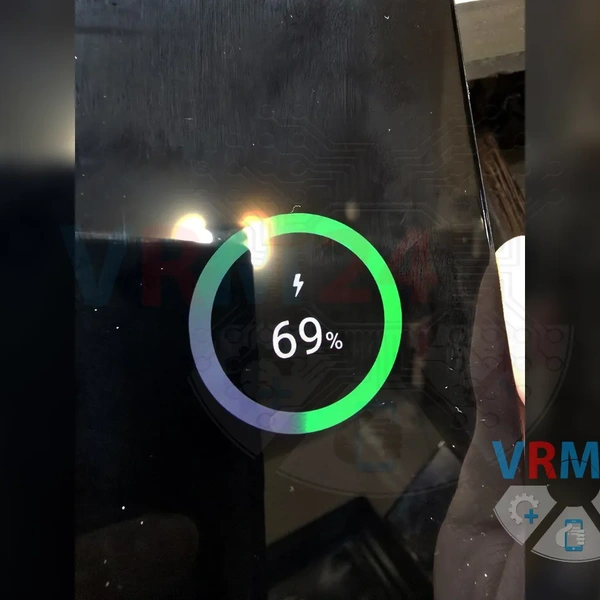

Reinstall the board and connect the phone to the charger. The tester shows that the device charges normally in all modes.
Mission accomplished! 👍
If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.
