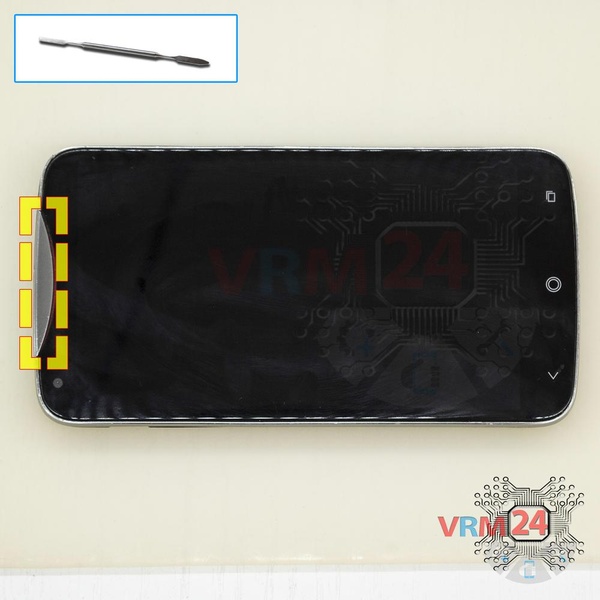

Unstick the cover on the front upper side. This notch hides two screws securing the housing.
Easy
9 min
Recommended tools
![Heat gun](/media/sorl-cache/2d/b4/2db4e10ce07455bf2ce597a75f6484b7.jpg)
![Screwdriver Torx T3](/media/sorl-cache/93/61/93610f31af6aba781bf0a759dc59c7d1.jpg)
![Screwdriver Phillips #000](/media/sorl-cache/5a/49/5a49f52add8fce973969602f5c3c80bd.jpg)
![Opening tool / Spudger](/media/sorl-cache/6c/d0/6cd069d1d27c3406e338146bf76ed63f.jpg)
![Tweezers](/media/sorl-cache/7e/85/7e8537a1cd045d70191aaca0724e8f7d.jpg)
Disassembly/Repair of the mobile device Acer Liquid S2 S520 with each step description and the required set of tools.
Specialist in content creation, distribution and content management.
![How to disassemble Acer Liquid S2 S520, Step 2/1](/media/sorl-cache/b0/4f/b04f46e5ef840c9e8ecec36537e6bc66.webp)

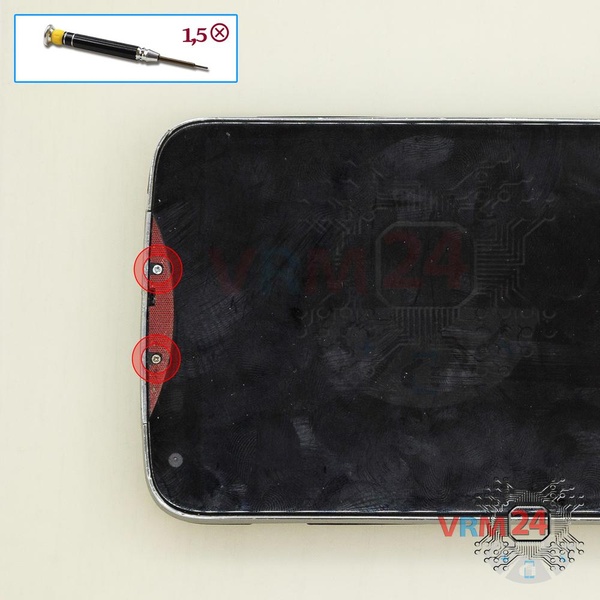

Step 2. Unscrew the screws
Using a screwdriver (Philips 1.5 mm PH000), unscrew two screws securing the back cover.
![How to disassemble Acer Liquid S2 S520, Step 3/1](/media/sorl-cache/8e/98/8e98527cbf979cb67599986ab0264346.webp)
![How to disassemble Acer Liquid S2 S520, Step 3/2](/media/sorl-cache/70/f1/70f121b3f24a30b2ec2a3230e724b48d.webp)

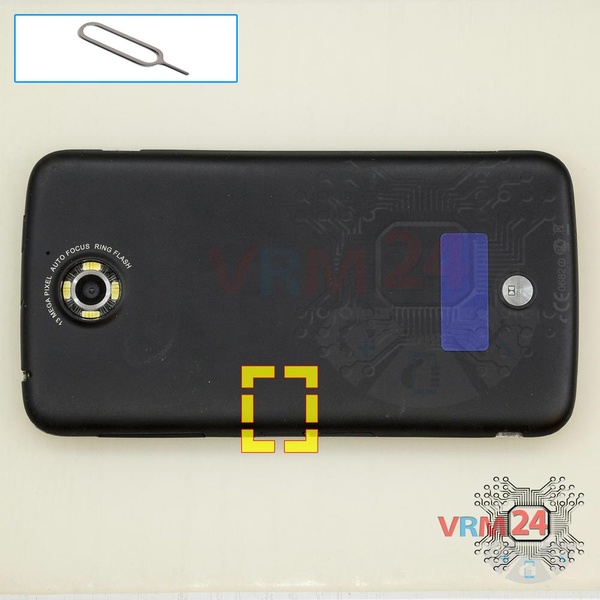

Step 3. Remove the tray
Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of the SIM card out.
â ī¸ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.
![How to disassemble Acer Liquid S2 S520, Step 4/1](/media/sorl-cache/64/f9/64f9d7f6ce32a7cfd62ee041affd1005.webp)
![How to disassemble Acer Liquid S2 S520, Step 4/2](/media/sorl-cache/83/88/8388daf6c181f0a1f6256106363dc7f0.webp)

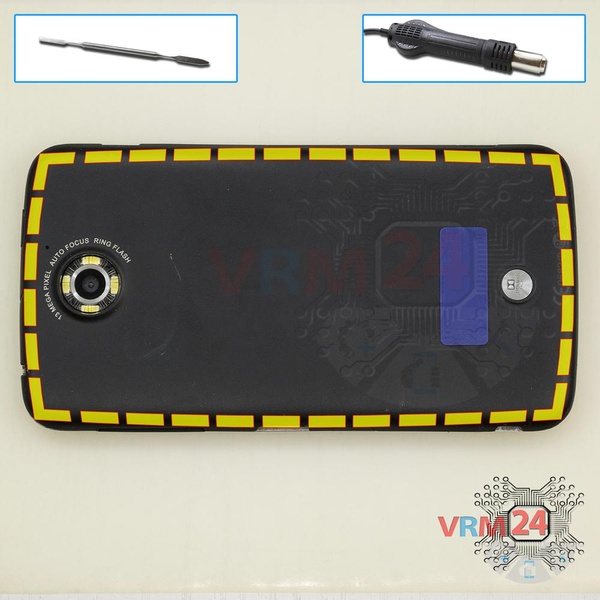

Step 4. Open the back cover
Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.
Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.
â ī¸ī¸ Be careful when opening the cover from the volume and power buttons side. Thin cable and fragile buttons are straightforward to damage.
The back cover may be glued to the battery. So we can heat the cover with a heat gun a bit to facilitate the process.
![How to disassemble Acer Liquid S2 S520, Step 5/1](/media/sorl-cache/1c/34/1c3452b59fbe930d99154d0eb9dbc997.webp)
![How to disassemble Acer Liquid S2 S520, Step 5/2](/media/sorl-cache/42/ca/42cab7bec2111b723bede9c787e71409.webp)

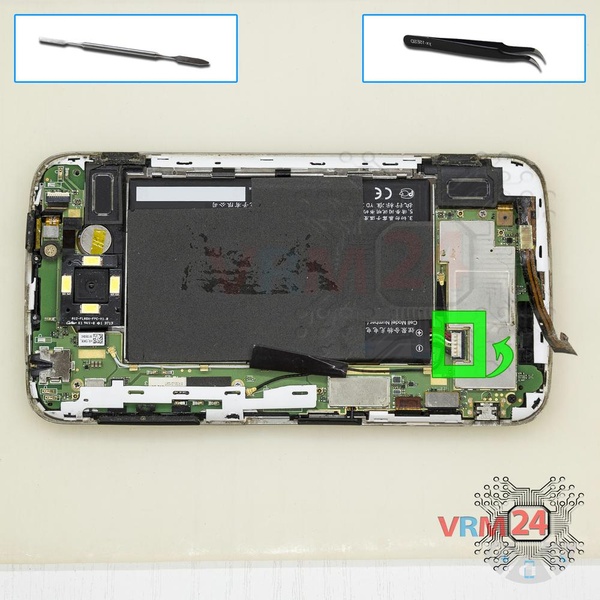

Step 5. Disconnect the battery connector
âšī¸ī¸ The Acer Liquid S2 S520 model has a battery BAT-M10 (1ICP5/58/94) with 3000 mAh capacity (aka rechargeable battery).
â ī¸ī¸ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.
Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.
![How to disassemble Acer Liquid S2 S520, Step 6/1](/media/sorl-cache/0b/02/0b023f75e9b350f402148cacdc5e3517.webp)
![How to disassemble Acer Liquid S2 S520, Step 6/2](/media/sorl-cache/30/af/30afd1997c5255656e0612fc93d8045f.webp)

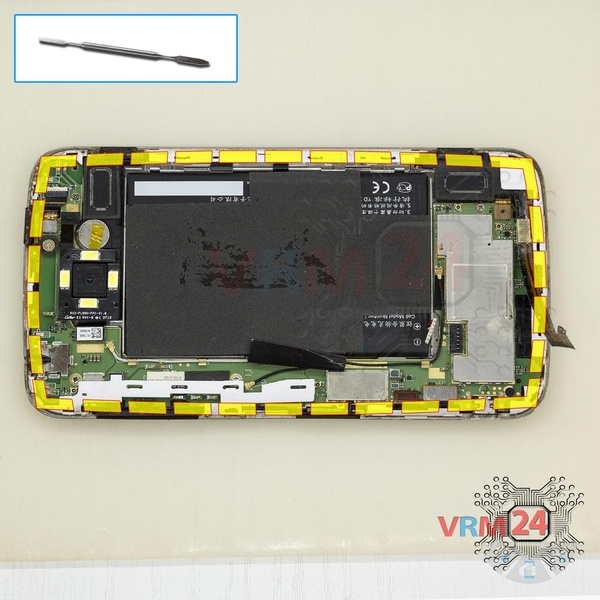

Step 6. Remove the frame of cameras
Pry around the edges. Disconnect attached clips by moving the opening tool along the edge.
Carefully remove the middle frame.

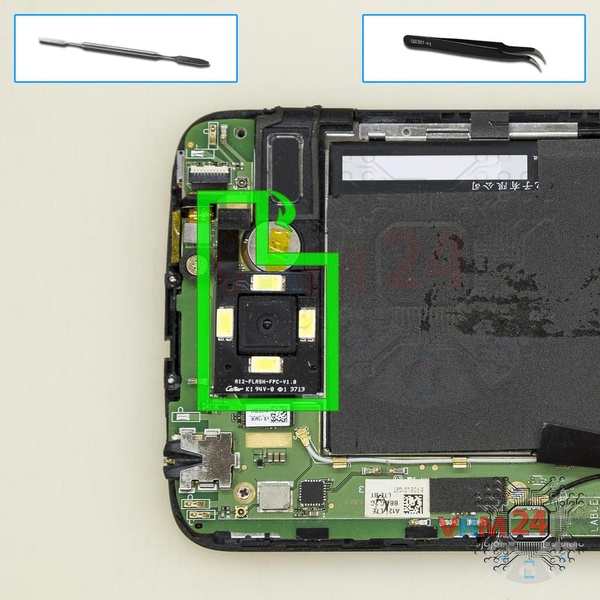

![How to disassemble Acer Liquid S2 S520, Step 8/1](/media/sorl-cache/29/c2/29c2191ed345178877fb620ff9ec7e4d.webp)
![How to disassemble Acer Liquid S2 S520, Step 8/2](/media/sorl-cache/7e/79/7e7940ab05752c43f3dbf9d0db0bda64.webp)

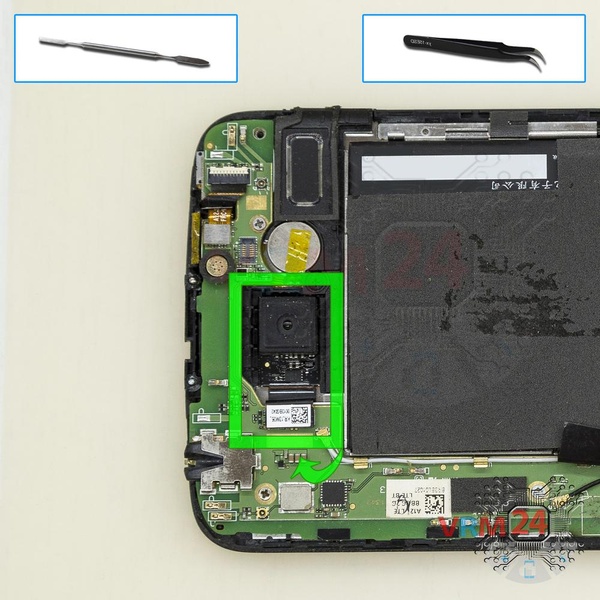

Step 8. Remove the rear camera
Disconnect the connector and remove the rear camera. Be careful! The camera may be glued to the display module frame.
![How to disassemble Acer Liquid S2 S520, Step 9/1](/media/sorl-cache/0d/37/0d3701f6071f5afafbb8358354c01e9e.webp)
![How to disassemble Acer Liquid S2 S520, Step 9/2](/media/sorl-cache/88/39/88391d19aa4d0f0e9fb1b8cb55d4cfb9.webp)

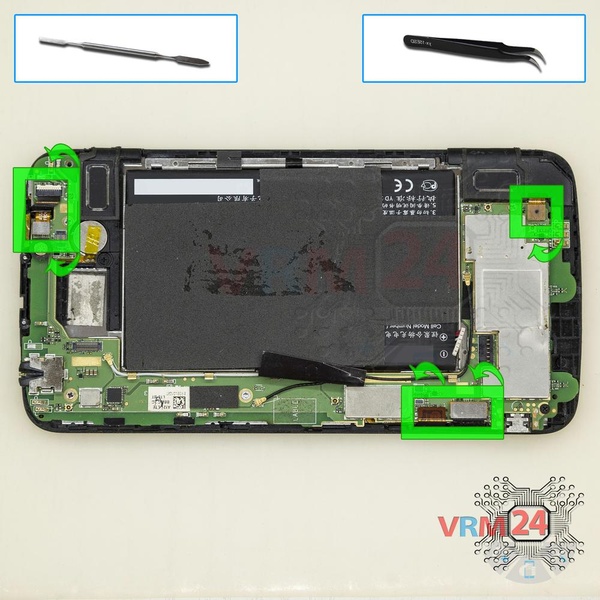

Step 9. Disconnect the connectors
Pry up the connectors for display, touchscreen, sensors, loudspeaker, front camera.
â ī¸ī¸ Be careful when removing the cables from the connectors. The cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.
![How to disassemble Acer Liquid S2 S520, Step 10/1](/media/sorl-cache/3f/d0/3fd0da9a9a62eeca4bc9ce5480645b6e.webp)
![How to disassemble Acer Liquid S2 S520, Step 10/2](/media/sorl-cache/fa/00/fa00523037c7b935b58b77f5b0be0e95.webp)

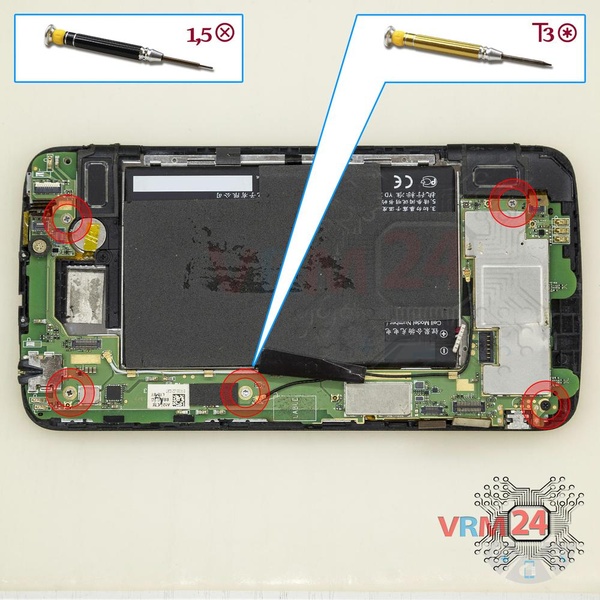

Step 10. Unscrew the screws
Using a screwdriver (Philips 1.5 mm PH000), unscrew five screws securing the circuit board.
![How to disassemble Acer Liquid S2 S520, Step 11/1](/media/sorl-cache/77/7e/777e5352ad78738b4966819d5d9768f6.webp)
![How to disassemble Acer Liquid S2 S520, Step 11/2](/media/sorl-cache/77/6a/776a18d54343837b3c9a44055791eac3.webp)

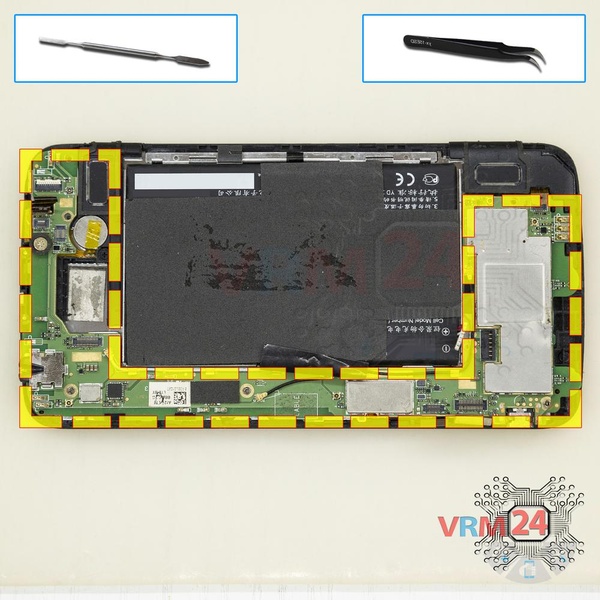

Step 11. Remove the motherboard
Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.
â ī¸ī¸ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.
![How to disassemble Acer Liquid S2 S520, Step 12/1](/media/sorl-cache/a6/82/a6823d826d74260aa3a4e3f001c4b146.webp)
![How to disassemble Acer Liquid S2 S520, Step 12/2](/media/sorl-cache/ef/c2/efc24c2e2259a2c8bda2cc3d596d1dd4.webp)

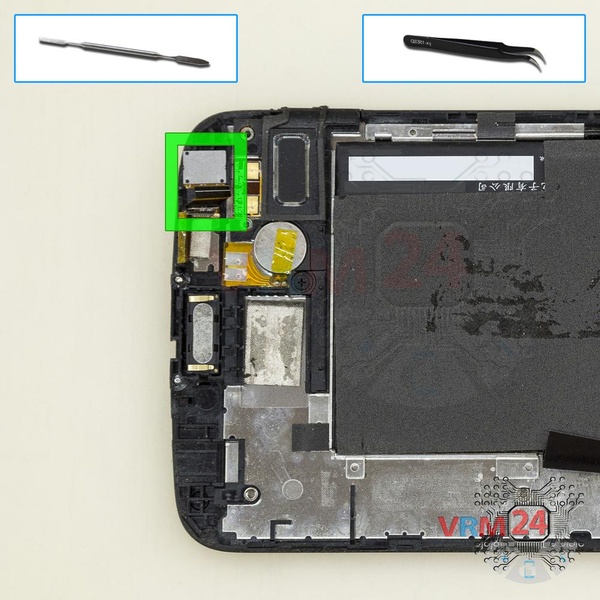

Step 12. Remove the front camera
Pry at the edges and remove the front (selfie) camera. The camera may be glued a bit so be careful.
![How to disassemble Acer Liquid S2 S520, Step 13/1](/media/sorl-cache/5e/d4/5ed4af4bd599ca110353eb31c34eb66c.webp)
![How to disassemble Acer Liquid S2 S520, Step 13/2](/media/sorl-cache/8f/86/8f86b574d2e6532b209647e082eeef43.webp)
![How to disassemble Acer Liquid S2 S520, Step 13/3](/media/sorl-cache/80/3e/803eff6e3894a065f7bf1e332d060e67.webp)

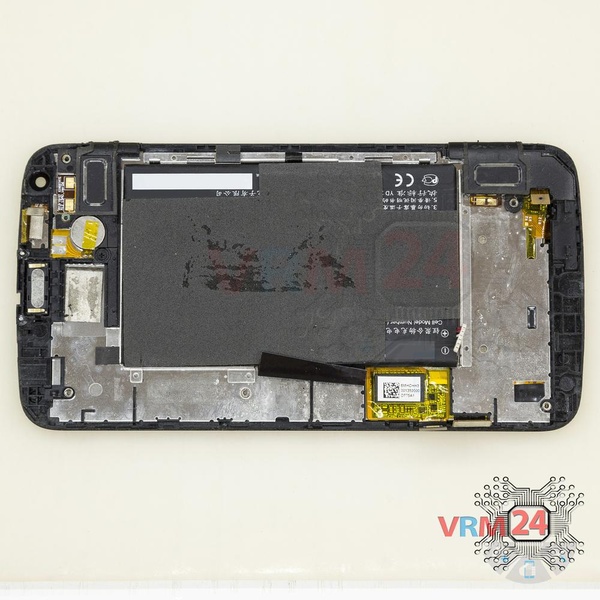

Step 13. In the display frame remained
âšī¸ī¸ In the display frame remained: the earpiece speaker, battery, vibration motor, two loudspeakers.
Detailed disassembly instructions of Acer Liquid S2 S520 in the video, made by our mobile repair & service center:
If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.
