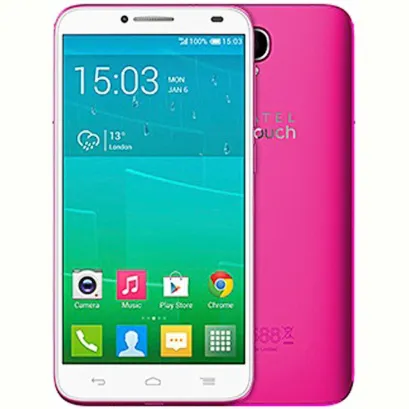

Alcatel OT Idol 2 6037Y
Alcatel OT Idol 2 6037Y
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Alcatel OT Idol 2 6037Y (Alcatel OneTouch Idol 2) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Alcatel OT Idol 2 6037Y, Step 1/1 How to disassemble Alcatel OT Idol 2 6037Y, Step 1/2

Step 1.

Open the back cover.

How to disassemble Alcatel OT Idol 2 6037Y, Step 2/1 How to disassemble Alcatel OT Idol 2 6037Y, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 11 bolts in the frame of the phone.

How to disassemble Alcatel OT Idol 2 6037Y, Step 3/1 How to disassemble Alcatel OT Idol 2 6037Y, Step 3/2

Step 3.

Remove the protection of the chips and the panel with the antenna.

How to disassemble Alcatel OT Idol 2 6037Y, Step 4/1 How to disassemble Alcatel OT Idol 2 6037Y, Step 4/2 How to disassemble Alcatel OT Idol 2 6037Y, Step 4/3

Step 4.

Disconnect the connector on the PCB and remove the battery.

How to disassemble Alcatel OT Idol 2 6037Y, Step 5/1 How to disassemble Alcatel OT Idol 2 6037Y, Step 5/2

Step 5.

Pry and remove the bottom part with buzzer (speaker).

How to disassemble Alcatel OT Idol 2 6037Y, Step 6/1 How to disassemble Alcatel OT Idol 2 6037Y, Step 6/2 How to disassemble Alcatel OT Idol 2 6037Y, Step 6/3

Step 6.

Disconnect the connectors on the bottom PCB and remove it.

How to disassemble Alcatel OT Idol 2 6037Y, Step 7/1 How to disassemble Alcatel OT Idol 2 6037Y, Step 7/2

Step 7.

Disconnect the connectors on PCB and remove the main camera.

How to disassemble Alcatel OT Idol 2 6037Y, Step 8/1 How to disassemble Alcatel OT Idol 2 6037Y, Step 8/2

Step 8.

Disconnect the connectors on the PCB.

How to disassemble Alcatel OT Idol 2 6037Y, Step 9/1 How to disassemble Alcatel OT Idol 2 6037Y, Step 9/2

Step 9.

Lift and remove the PCB.

How to disassemble Alcatel OT Idol 2 6037Y, Step 10/1 How to disassemble Alcatel OT Idol 2 6037Y, Step 10/2 How to disassemble Alcatel OT Idol 2 6037Y, Step 10/3

Step 10.

Parts in the frame of the display module.

Detailed disassembly instructions of Alcatel OT Idol 2 6037Y in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Alcatel #Alcatel OT Idol 2 6037Y
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Alcatel OT Idol 2 6037Y — Alcatel OneTouch Idol 2 released for markets in different countries.
