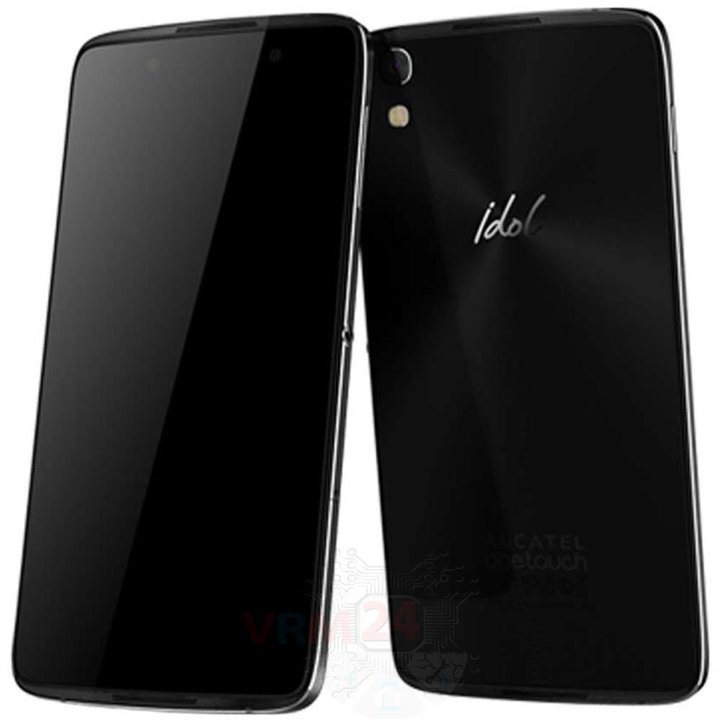

Disassembly/Repair of the mobile device Alcatel OT Idol 4s 6070K (Alcatel OneTouch Idol 4S) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Alcatel OT Idol 4s 6070K, Step 1/1 How to disassemble Alcatel OT Idol 4s 6070K, Step 1/2

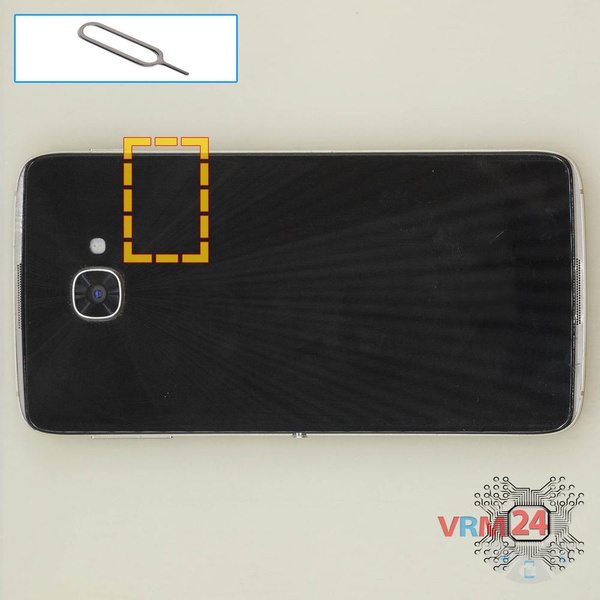

Step 1.

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.


How to disassemble Alcatel OT Idol 4s 6070K, Step 2/1 How to disassemble Alcatel OT Idol 4s 6070K, Step 2/2

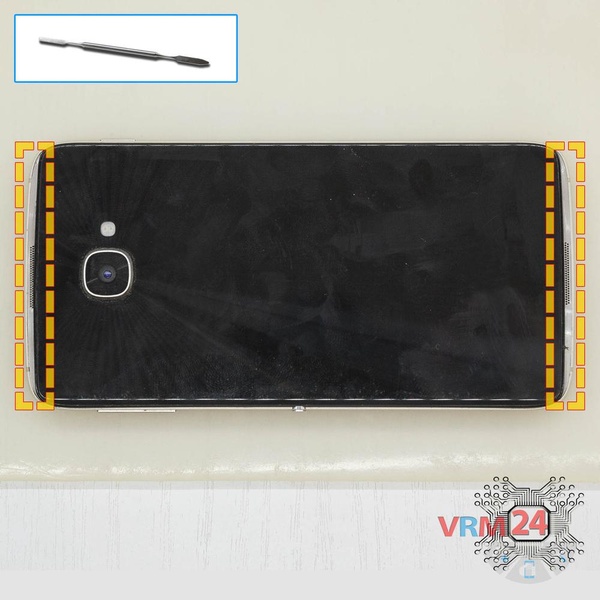

Step 2.

Remove the covers.


How to disassemble Alcatel OT Idol 4s 6070K, Step 3/1 How to disassemble Alcatel OT Idol 4s 6070K, Step 3/2

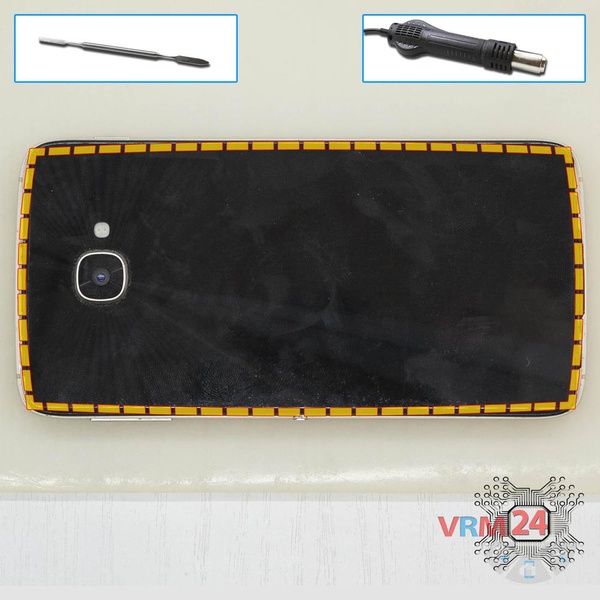

Step 3.

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.


How to disassemble Alcatel OT Idol 4s 6070K, Step 4/1 How to disassemble Alcatel OT Idol 4s 6070K, Step 4/2 How to disassemble Alcatel OT Idol 4s 6070K, Step 4/3

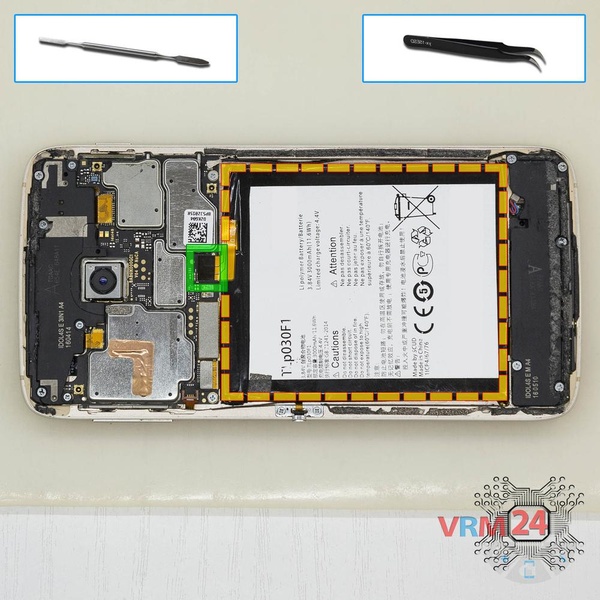

Step 4.

Disconnect the connector on PCB and remove the battery.


How to disassemble Alcatel OT Idol 4s 6070K, Step 5/1 How to disassemble Alcatel OT Idol 4s 6070K, Step 5/2

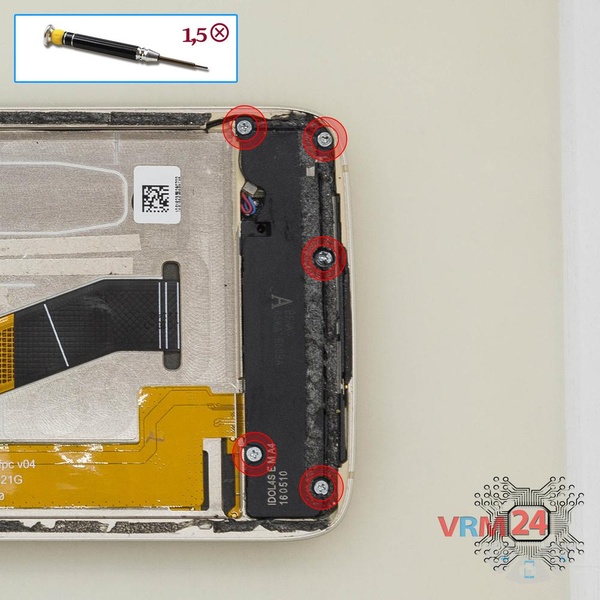

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts.


How to disassemble Alcatel OT Idol 4s 6070K, Step 6/1 How to disassemble Alcatel OT Idol 4s 6070K, Step 6/2

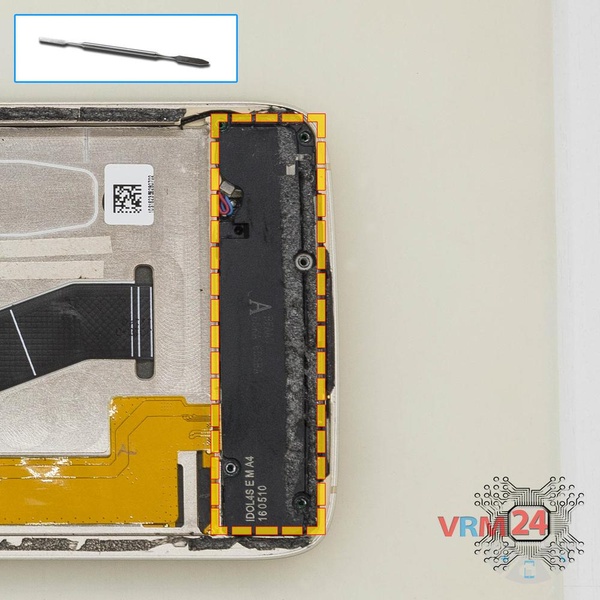

Step 6.

Pry and remove the buzzer (speaker) assembly.


How to disassemble Alcatel OT Idol 4s 6070K, Step 7/1 How to disassemble Alcatel OT Idol 4s 6070K, Step 7/2

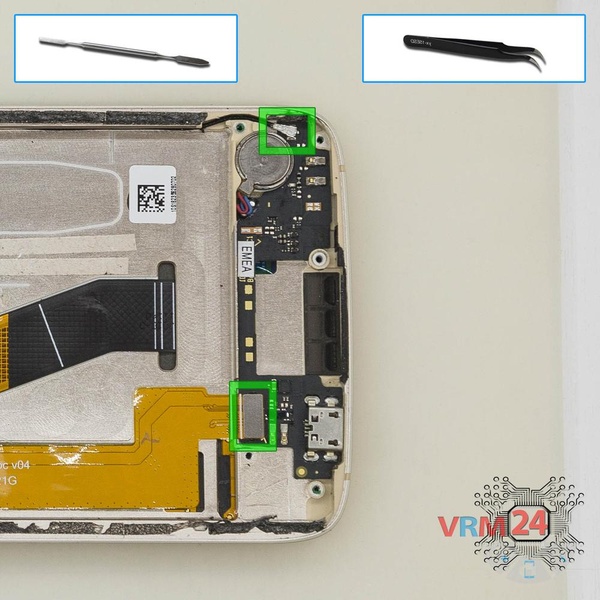

Step 7.

Disconnect connectors on the daughterboard.


How to disassemble Alcatel OT Idol 4s 6070K, Step 8/1 How to disassemble Alcatel OT Idol 4s 6070K, Step 8/2

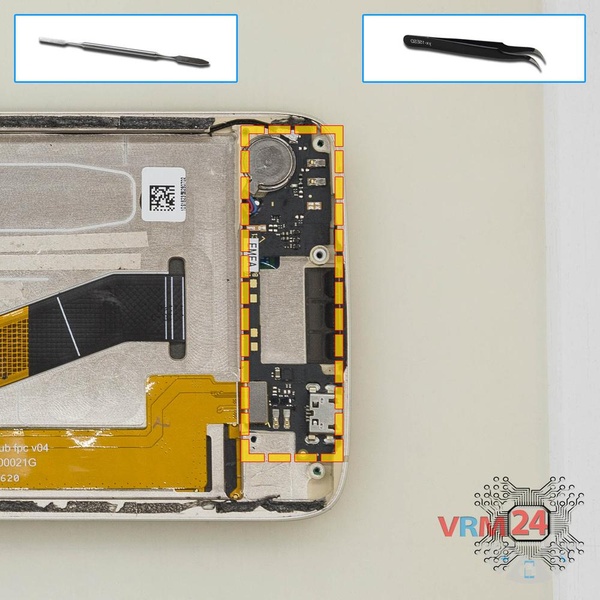

Step 8.

Remove the daughterboard, also known as sub-board.


How to disassemble Alcatel OT Idol 4s 6070K, Step 9/1 How to disassemble Alcatel OT Idol 4s 6070K, Step 9/2 How to disassemble Alcatel OT Idol 4s 6070K, Step 9/3

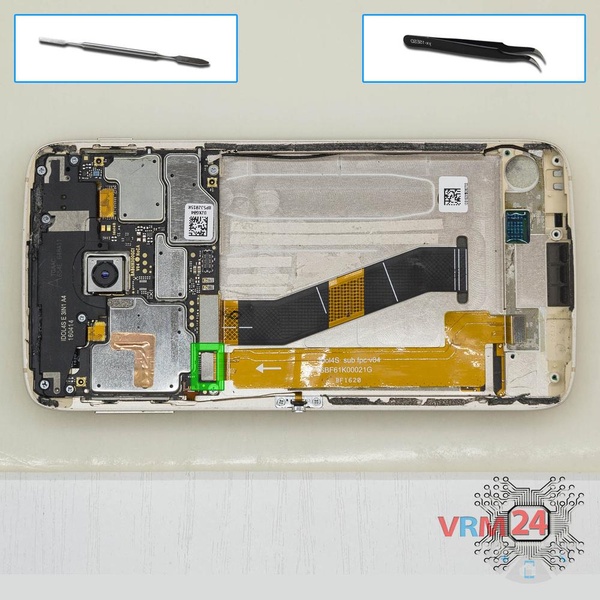

Step 9.

Disconnect the connector and remove the inter-board cable.


How to disassemble Alcatel OT Idol 4s 6070K, Step 10/1 How to disassemble Alcatel OT Idol 4s 6070K, Step 10/2

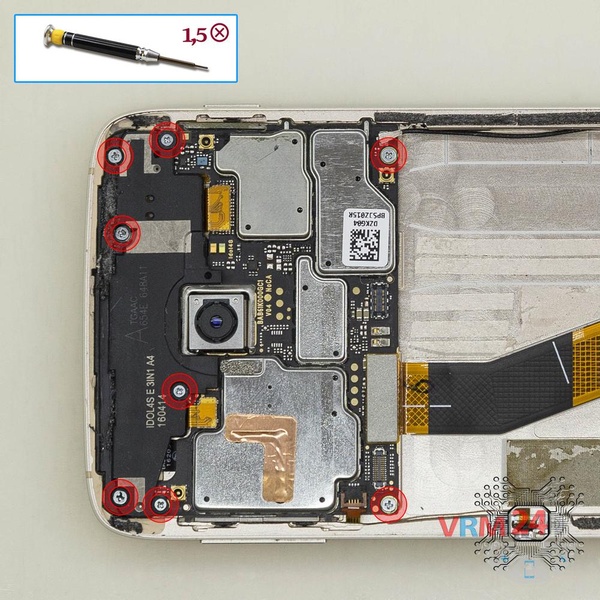

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts.


How to disassemble Alcatel OT Idol 4s 6070K, Step 11/1 How to disassemble Alcatel OT Idol 4s 6070K, Step 11/2 How to disassemble Alcatel OT Idol 4s 6070K, Step 11/3

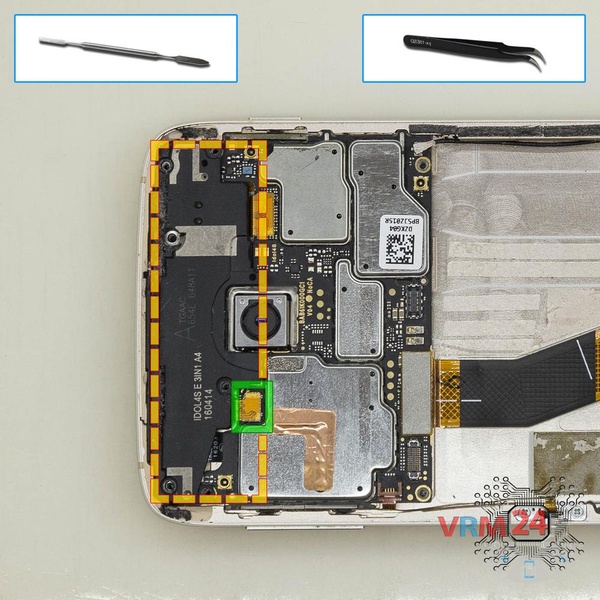

Step 11.

Pry and remove the assembly of the earpiece speaker and proximity sensor.


How to disassemble Alcatel OT Idol 4s 6070K, Step 12/1 How to disassemble Alcatel OT Idol 4s 6070K, Step 12/2 How to disassemble Alcatel OT Idol 4s 6070K, Step 12/3

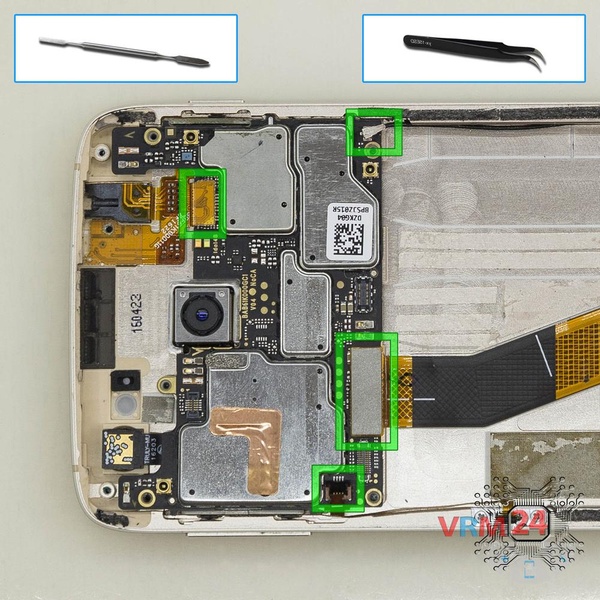

Step 12.

Disconnect connectors on the PCB.


How to disassemble Alcatel OT Idol 4s 6070K, Step 13/1 How to disassemble Alcatel OT Idol 4s 6070K, Step 13/2

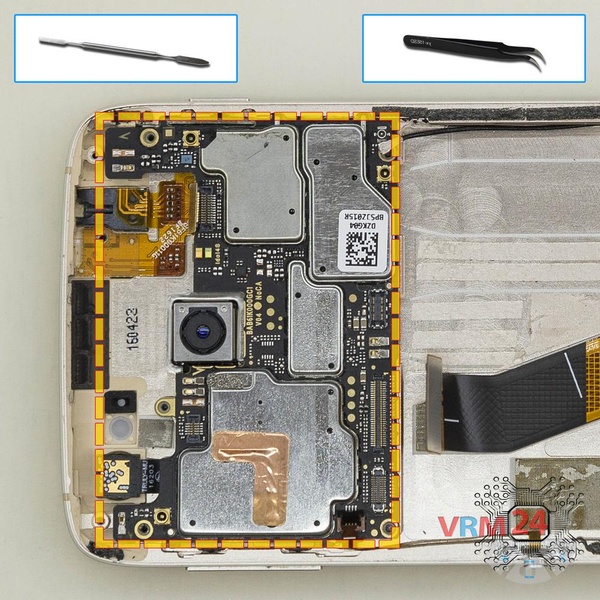

Step 13.

Remove the PCB.


How to disassemble Alcatel OT Idol 4s 6070K, Step 14/1 How to disassemble Alcatel OT Idol 4s 6070K, Step 14/2 How to disassemble Alcatel OT Idol 4s 6070K, Step 14/3

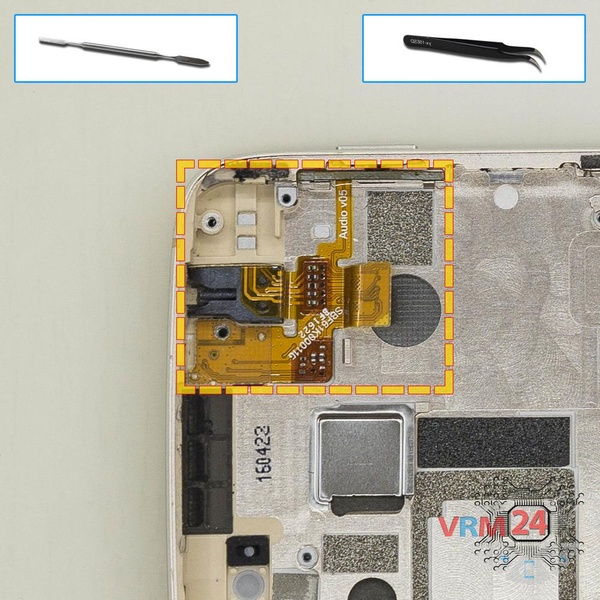

Step 14.

Remove the cable with a headphone jack/socket and power button.


How to disassemble Alcatel OT Idol 4s 6070K, Step 15/1 How to disassemble Alcatel OT Idol 4s 6070K, Step 15/2

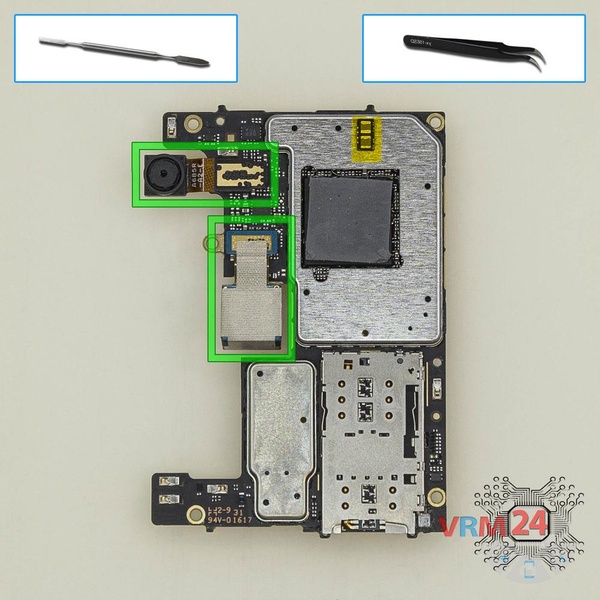

Step 15.

Disconnect connectors on PCB and remove the main and front (selfie) cameras.

Detailed disassembly instructions of Alcatel OT Idol 4s 6070K in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 14 minutes in time.
Our manual is suitable for all models Alcatel OT Idol 4s 6070K — Alcatel OneTouch Idol 4S released for markets in different countries.
