Alcatel OT Idol Alpha 6032X
Alcatel OT Idol Alpha 6032X
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Alcatel OT Idol Alpha 6032X (Alcatel OneTouch Idol Alpha) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Alcatel OT Idol Alpha 6032X, Step 1/1 How to disassemble Alcatel OT Idol Alpha 6032X, Step 1/2

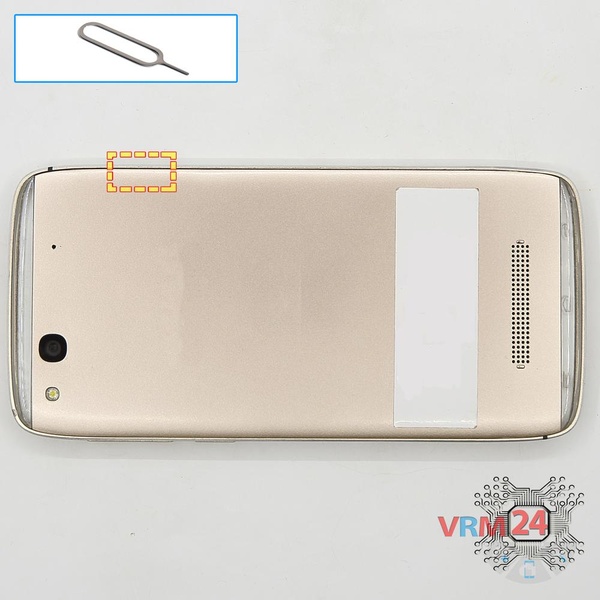

Step 1.

Using the key tool, open the SIM card slot and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Alcatel OT Idol Alpha 6032X, Step 2/1 How to disassemble Alcatel OT Idol Alpha 6032X, Step 2/2

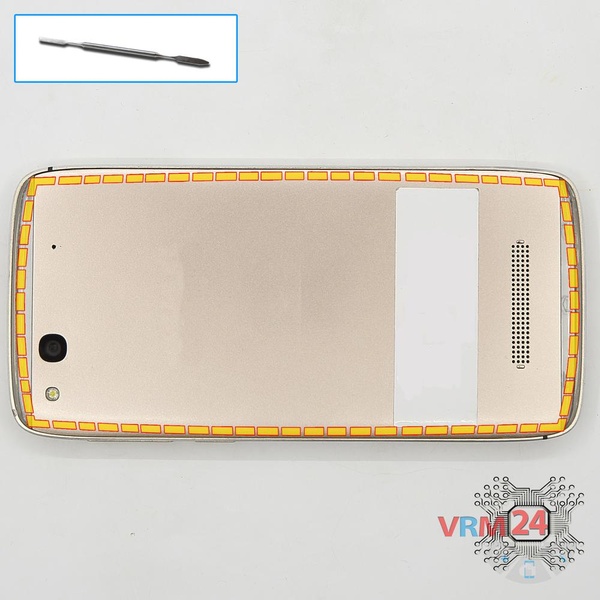

Step 2.

Open the back cover.

How to disassemble Alcatel OT Idol Alpha 6032X, Step 3/1 How to disassemble Alcatel OT Idol Alpha 6032X, Step 3/2

Step 3.

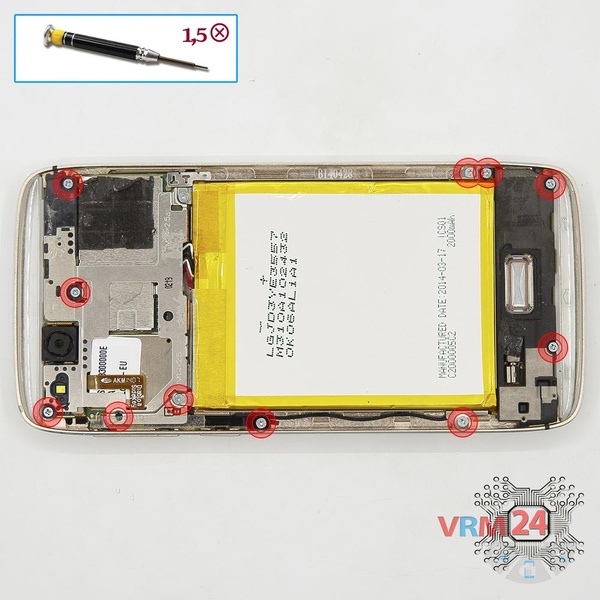

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.

How to disassemble Alcatel OT Idol Alpha 6032X, Step 4/1 How to disassemble Alcatel OT Idol Alpha 6032X, Step 4/2

Step 4.

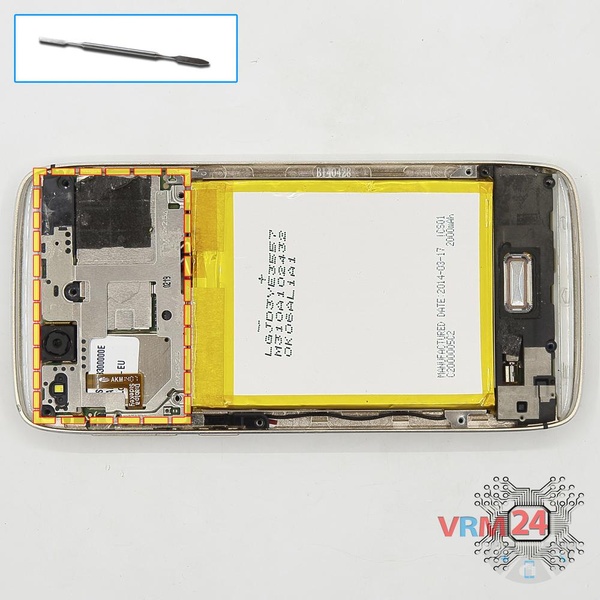

Pry and remove the steel frame hiding the PCB.

How to disassemble Alcatel OT Idol Alpha 6032X, Step 5/1 How to disassemble Alcatel OT Idol Alpha 6032X, Step 5/2

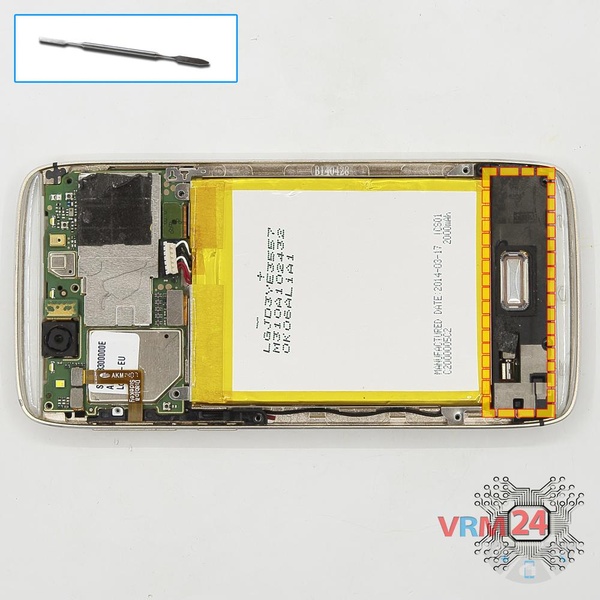

Step 5.

Pry and remove the bottom part with buzzer (speaker).

How to disassemble Alcatel OT Idol Alpha 6032X, Step 6/1 How to disassemble Alcatel OT Idol Alpha 6032X, Step 6/2

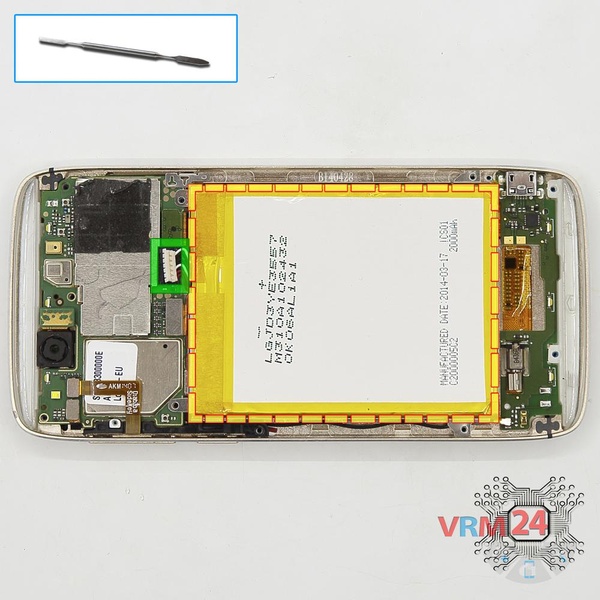

Step 6.

Disconnect the connector on the PCB and remove the battery.

How to disassemble Alcatel OT Idol Alpha 6032X, Step 7/1 How to disassemble Alcatel OT Idol Alpha 6032X, Step 7/2

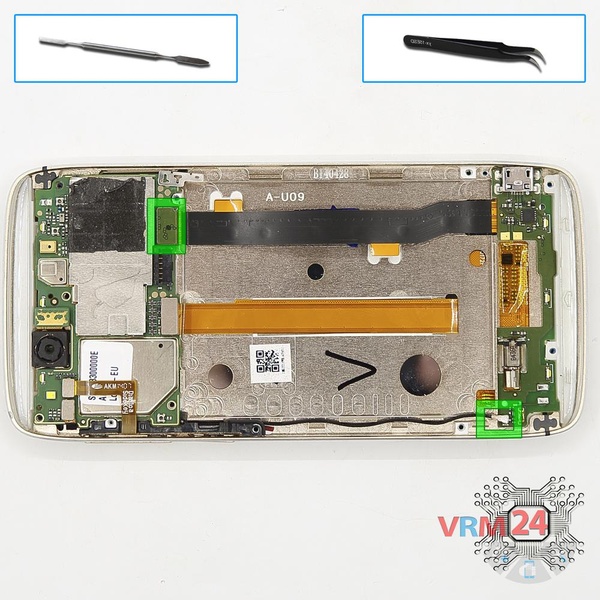

Step 7.

Disconnect the coaxial cable connector on the bottom board and the inter-board flat cable connector on the main board, and remove the bottom PCB with a charging port and a vibrator.

How to disassemble Alcatel OT Idol Alpha 6032X, Step 8/1 How to disassemble Alcatel OT Idol Alpha 6032X, Step 8/2

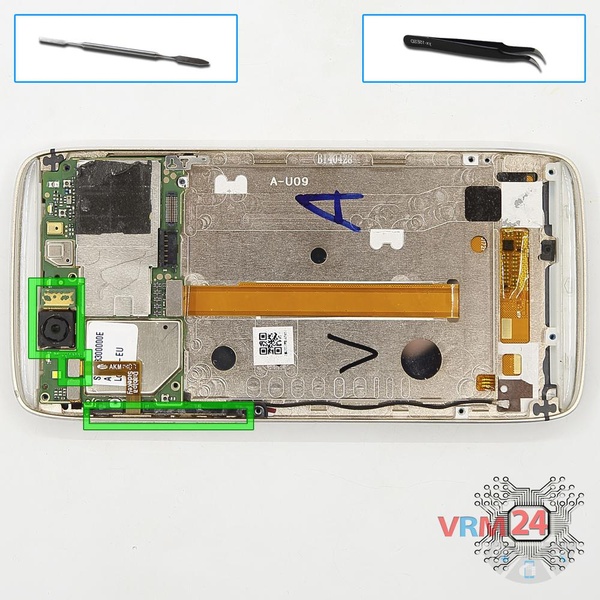

Step 8.

Disconnect the connectors on the PCB and remove the camera and FFC (flexible flat cable) of volume and power buttons.

How to disassemble Alcatel OT Idol Alpha 6032X, Step 9/1 How to disassemble Alcatel OT Idol Alpha 6032X, Step 9/2

Step 9.

Disconnect the connectors on PCB.

How to disassemble Alcatel OT Idol Alpha 6032X, Step 10/1 How to disassemble Alcatel OT Idol Alpha 6032X, Step 10/2

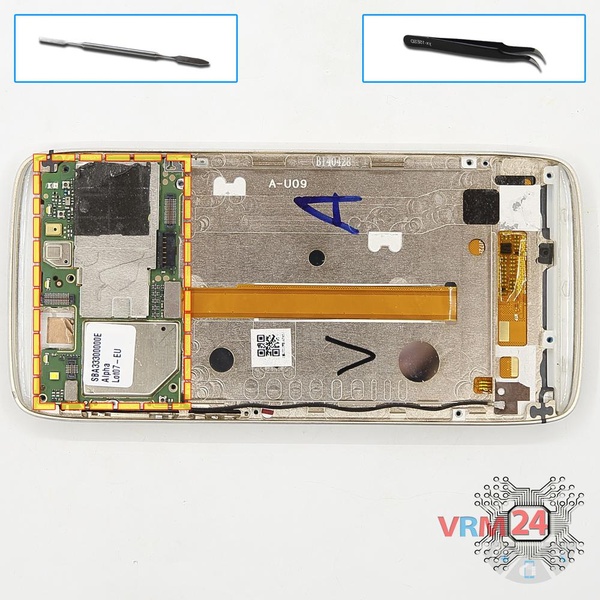

Step 10.

Remove the PCB.

How to disassemble Alcatel OT Idol Alpha 6032X, Step 11/1 How to disassemble Alcatel OT Idol Alpha 6032X, Step 11/2 How to disassemble Alcatel OT Idol Alpha 6032X, Step 11/3

Step 11.

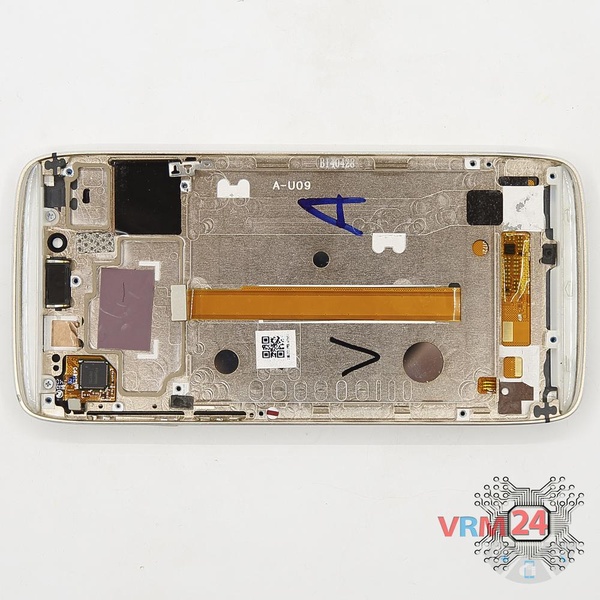

Parts in the frame of the display module.

Detailed disassembly instructions of Alcatel OT Idol Alpha 6032X in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Alcatel #Alcatel OT Idol Alpha 6032X
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Alcatel OT Idol Alpha 6032X — Alcatel OneTouch Idol Alpha released for markets in different countries.
