Recommended tools
Heat gun
Screwdriver Phillips #000
Opening tool / Spudger
Tweezers
Disassembly/Repair of the mobile device Alcatel OT Idol Ultra 6033X (Alcatel OneTouch Idol Ultra) with each step description and the required set of tools.
4282
Views
3
Likes
—
Share
4
Questions
Step 1.

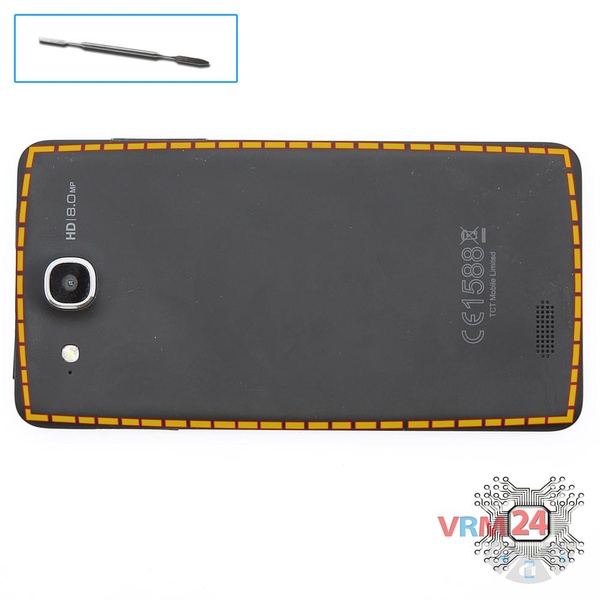

Open the back cover
Open the back cover.
Step 2.
Disconnect the connector

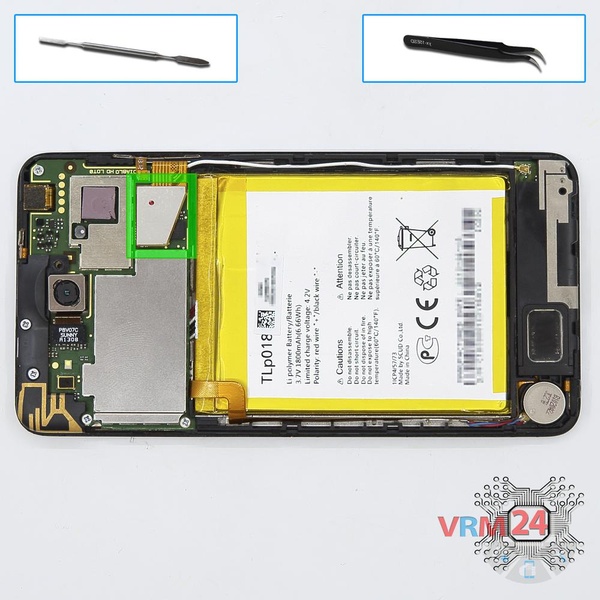

Disconnect the display connector.
Step 3.
Unscrew the screws

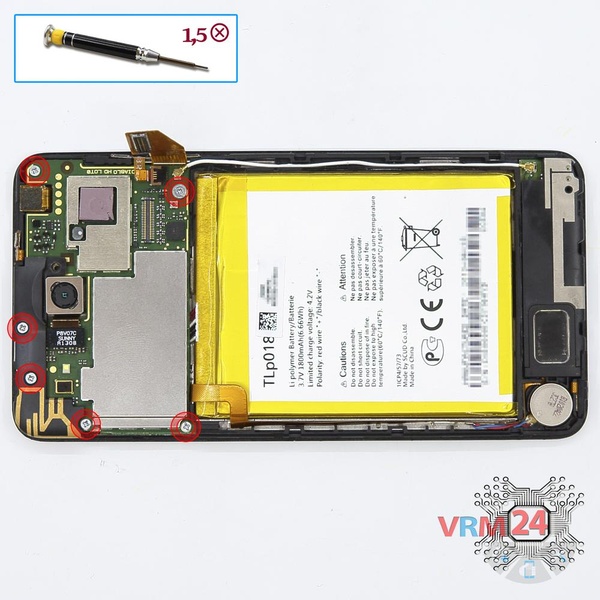

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the PCB.
Step 4.
Remove the coaxial cable

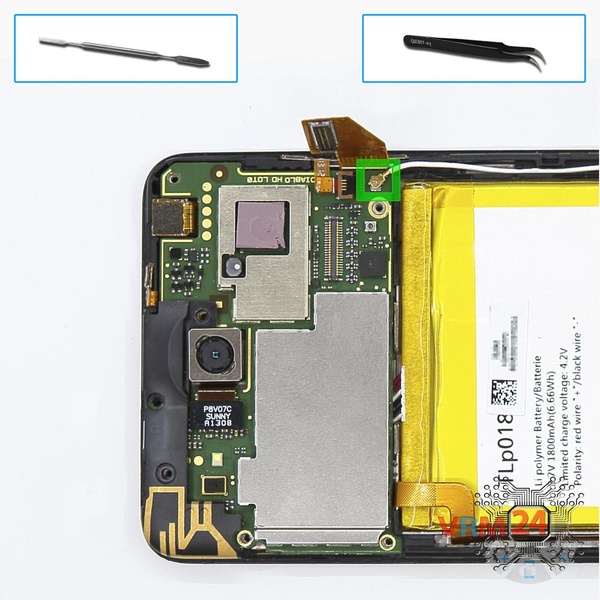

Disconnect the coaxial cable connector.
Step 5.
Remove the motherboard

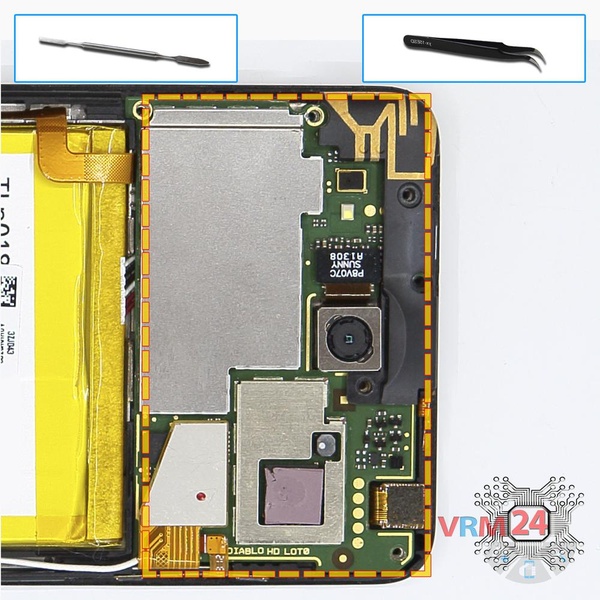

Lift the board, disconnect the connectors from the inside and remove the PCB.
Step 6.
Remove the battery

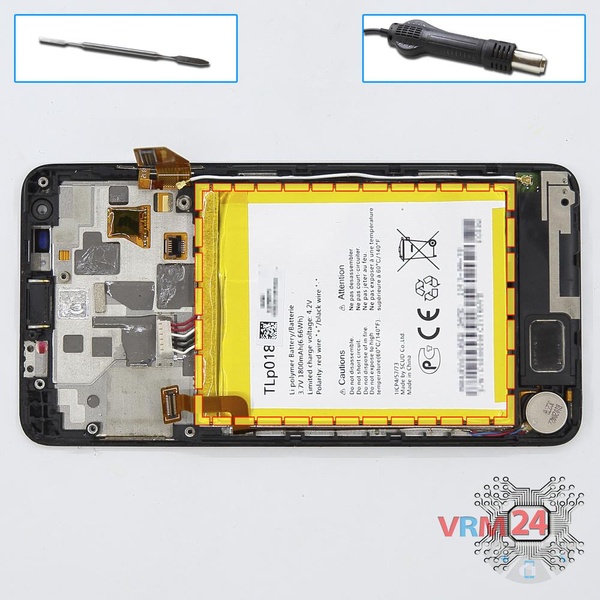

Lift and remove the battery.
⚠ Warning!
The battery can be glued. For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.
Step 7.
Remove the coaxial cable

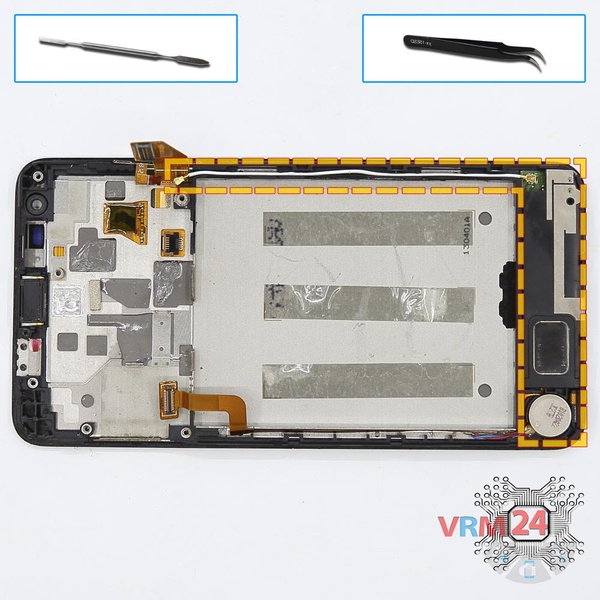

Pry and remove the coaxial cable, the vibrator, the microphone laying and the lower part with the speaker (buzzer).
Step 8.
In the display frame remained

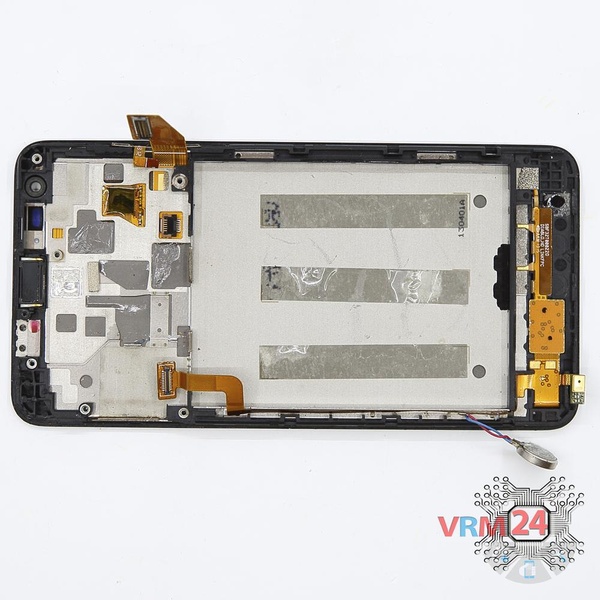

Parts in the frame of the display module.
