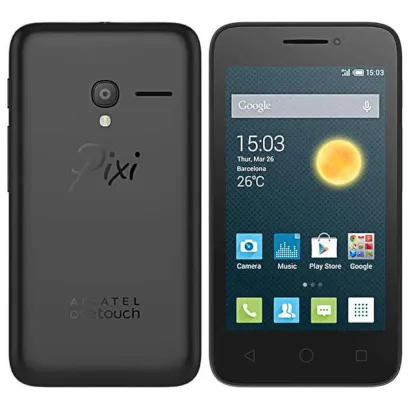

Disassembly/Repair of the mobile device Alcatel OT PIXI 3 4013D (Alcatel OneTouch Pixi 3) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Alcatel OT PIXI 3 4013D, Step 1/1 How to disassemble Alcatel OT PIXI 3 4013D, Step 1/2

Step 1.

Open the back cover.


How to disassemble Alcatel OT PIXI 3 4013D, Step 2/1 How to disassemble Alcatel OT PIXI 3 4013D, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble Alcatel OT PIXI 3 4013D, Step 3/1 How to disassemble Alcatel OT PIXI 3 4013D, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the frame of the phone.


How to disassemble Alcatel OT PIXI 3 4013D, Step 4/1 How to disassemble Alcatel OT PIXI 3 4013D, Step 4/2

Step 4.

Pry and remove the middle frame.


How to disassemble Alcatel OT PIXI 3 4013D, Step 5/1 How to disassemble Alcatel OT PIXI 3 4013D, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.


How to disassemble Alcatel OT PIXI 3 4013D, Step 6/1 How to disassemble Alcatel OT PIXI 3 4013D, Step 6/2 How to disassemble Alcatel OT PIXI 3 4013D, Step 6/3 How to disassemble Alcatel OT PIXI 3 4013D, Step 6/4 How to disassemble Alcatel OT PIXI 3 4013D, Step 6/5 How to disassemble Alcatel OT PIXI 3 4013D, Step 6/6

Step 6.

Disconnect the connector on the PCB.


How to disassemble Alcatel OT PIXI 3 4013D, Step 7/1 How to disassemble Alcatel OT PIXI 3 4013D, Step 7/2

Step 7.

Remove the PCB.


How to disassemble Alcatel OT PIXI 3 4013D, Step 8/1

Step 8.

Frame with LCD and touchscreen.

Detailed disassembly instructions of Alcatel OT PIXI 3 4013D in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Alcatel OT PIXI 3 4013D — Alcatel OneTouch Pixi 3 released for markets in different countries.
