Disassembly/Repair of the mobile device Alcatel OT PIXI First 4024D (Alcatel OneTouch Pixi First) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Alcatel OT PIXI First 4024D, Step 1/1 How to disassemble Alcatel OT PIXI First 4024D, Step 1/2

Step 1.

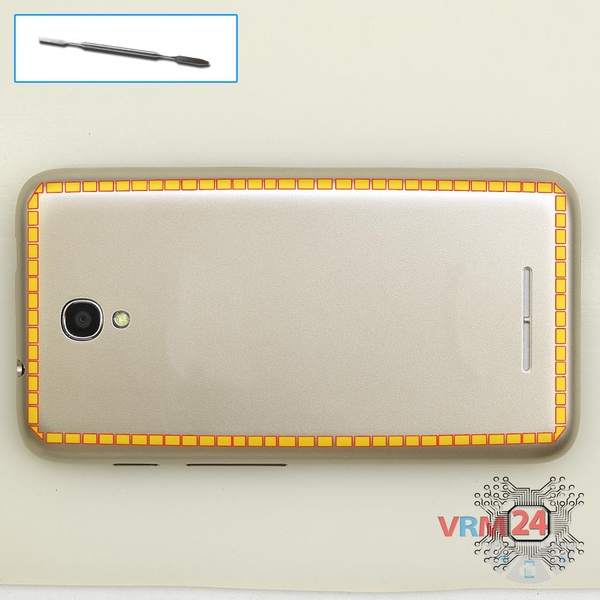

Open the back cover.

How to disassemble Alcatel OT PIXI First 4024D, Step 2/1 How to disassemble Alcatel OT PIXI First 4024D, Step 2/2

Step 2.

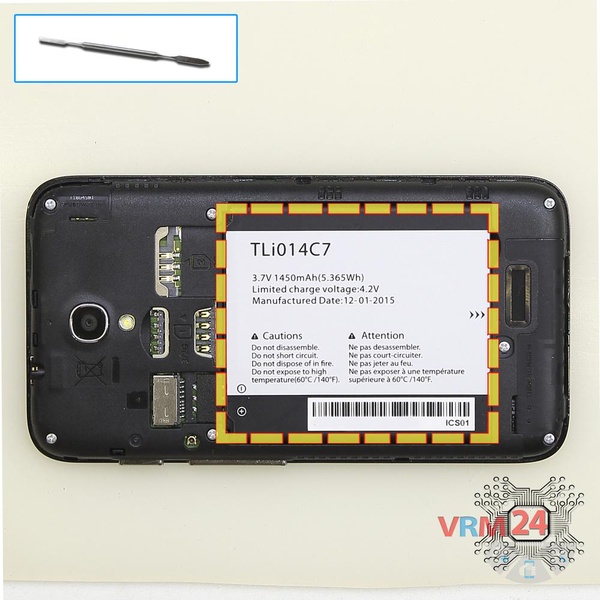

Lift and remove the battery.

How to disassemble Alcatel OT PIXI First 4024D, Step 3/1 How to disassemble Alcatel OT PIXI First 4024D, Step 3/2

Step 3.

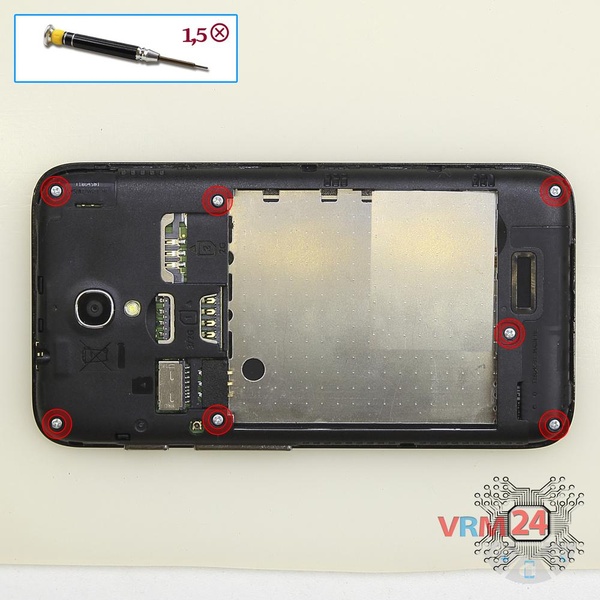

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the frame of the phone.

How to disassemble Alcatel OT PIXI First 4024D, Step 4/1 How to disassemble Alcatel OT PIXI First 4024D, Step 4/2

Step 4.

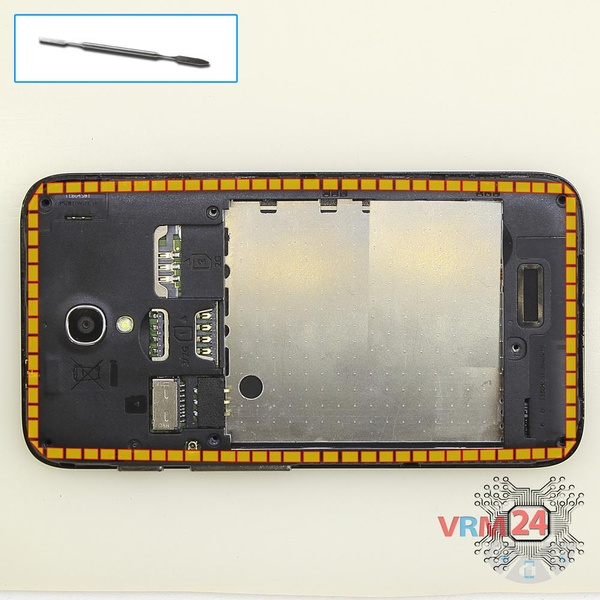

Pry and remove the middle frame and the volume and power buttons.

How to disassemble Alcatel OT PIXI First 4024D, Step 5/1 How to disassemble Alcatel OT PIXI First 4024D, Step 5/2 How to disassemble Alcatel OT PIXI First 4024D, Step 5/3

Step 5.

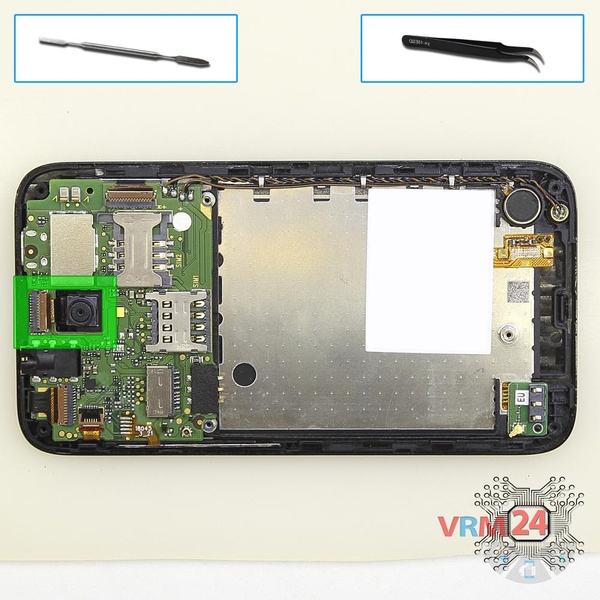

Disconnect the connector on PCB and remove the camera.

How to disassemble Alcatel OT PIXI First 4024D, Step 6/1 How to disassemble Alcatel OT PIXI First 4024D, Step 6/2 How to disassemble Alcatel OT PIXI First 4024D, Step 6/3 How to disassemble Alcatel OT PIXI First 4024D, Step 6/4 How to disassemble Alcatel OT PIXI First 4024D, Step 6/5 How to disassemble Alcatel OT PIXI First 4024D, Step 6/6

Step 6.

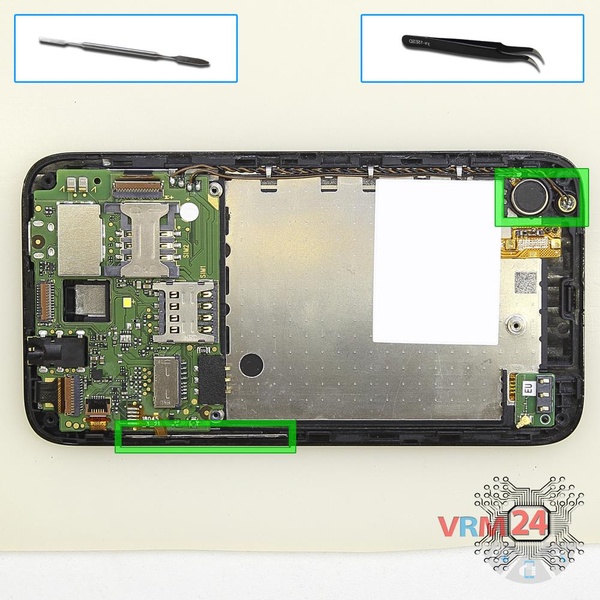

Pry and remove vibrator and FFC (flexible flat cable) of volume and power buttons.

How to disassemble Alcatel OT PIXI First 4024D, Step 7/1 How to disassemble Alcatel OT PIXI First 4024D, Step 7/2 How to disassemble Alcatel OT PIXI First 4024D, Step 7/3 How to disassemble Alcatel OT PIXI First 4024D, Step 7/4 How to disassemble Alcatel OT PIXI First 4024D, Step 7/5 How to disassemble Alcatel OT PIXI First 4024D, Step 7/6

Step 7.

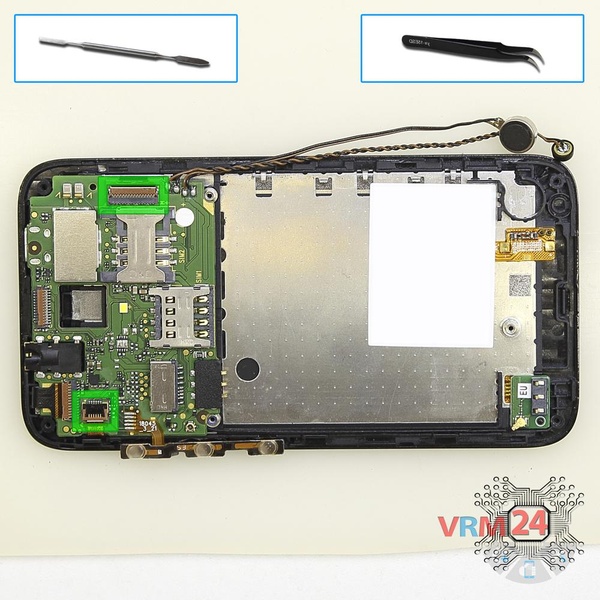

Disconnect the connectors on the PCB.

How to disassemble Alcatel OT PIXI First 4024D, Step 8/1 How to disassemble Alcatel OT PIXI First 4024D, Step 8/2 How to disassemble Alcatel OT PIXI First 4024D, Step 8/3

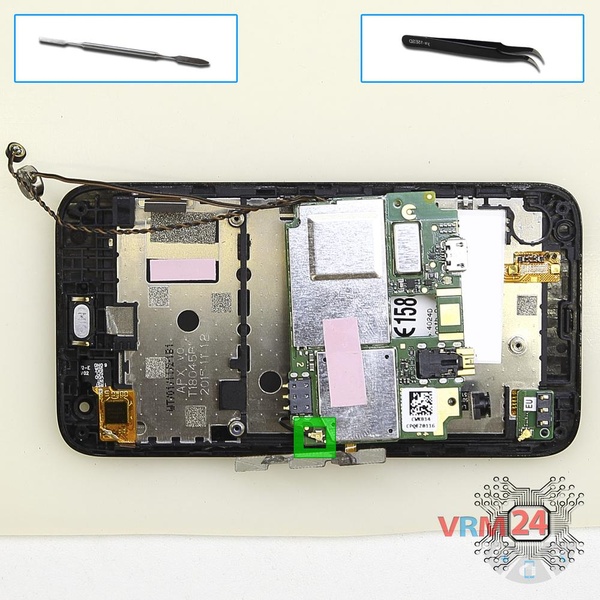

Step 8.

Overturn the main board, disconnect the coaxial cable and remove PCB.

How to disassemble Alcatel OT PIXI First 4024D, Step 9/1 How to disassemble Alcatel OT PIXI First 4024D, Step 9/2 How to disassemble Alcatel OT PIXI First 4024D, Step 9/3 How to disassemble Alcatel OT PIXI First 4024D, Step 9/4

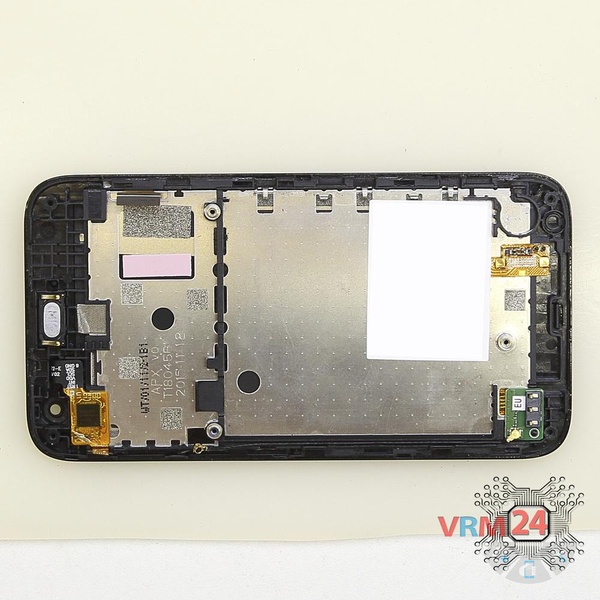

Step 9.

Parts in the frame of the display module.

Detailed disassembly instructions of Alcatel OT PIXI First 4024D in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Alcatel #Alcatel OT PIXI First 4024D
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Alcatel OT PIXI First 4024D — Alcatel OneTouch Pixi First released for markets in different countries.
