Alcatel OT POP 2 5042D
Alcatel OT POP 2 5042D
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

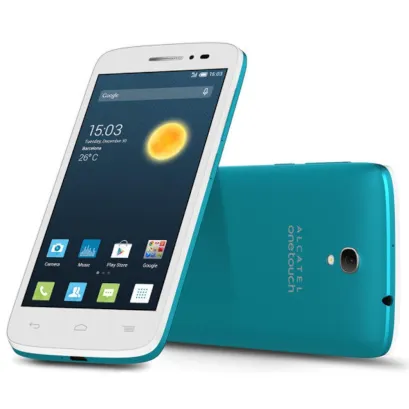

Disassembly/Repair of the mobile device Alcatel OT POP 2 5042D (Alcatel OneTouch Pop 2) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Alcatel OT POP 2 5042D, Step 1/1 How to disassemble Alcatel OT POP 2 5042D, Step 1/2

Step 1.

Open the back cover.

How to disassemble Alcatel OT POP 2 5042D, Step 2/1 How to disassemble Alcatel OT POP 2 5042D, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the frame of the phone.

How to disassemble Alcatel OT POP 2 5042D, Step 3/1 How to disassemble Alcatel OT POP 2 5042D, Step 3/2

Step 3.

Pry and remove the middle frame.

How to disassemble Alcatel OT POP 2 5042D, Step 4/1

Step 4.

The middle frame with speaker (buzzer).

How to disassemble Alcatel OT POP 2 5042D, Step 5/1 How to disassemble Alcatel OT POP 2 5042D, Step 5/2

Step 5.

Disconnect the connector on PCB and the main camera.

How to disassemble Alcatel OT POP 2 5042D, Step 6/1 How to disassemble Alcatel OT POP 2 5042D, Step 6/2 How to disassemble Alcatel OT POP 2 5042D, Step 6/3

Step 6.

Disconnect the connectors on the printed circuit board. Pry and remove the vibrator and FFC (flexible flat cable) of volume and power buttons.

How to disassemble Alcatel OT POP 2 5042D, Step 7/1 How to disassemble Alcatel OT POP 2 5042D, Step 7/2

Step 7.

Remove the PCB.

How to disassemble Alcatel OT POP 2 5042D, Step 8/1 How to disassemble Alcatel OT POP 2 5042D, Step 8/2 How to disassemble Alcatel OT POP 2 5042D, Step 8/3

Step 8.

Parts in the frame of the display module.

Detailed disassembly instructions of Alcatel OT POP 2 5042D in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Alcatel #Alcatel OT POP 2 5042D
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Alcatel OT POP 2 5042D — Alcatel OneTouch Pop 2 released for markets in different countries.
