Alcatel OT POP 2 7043K
Alcatel OT POP 2 7043K
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Alcatel OT POP 2 7043K (Alcatel OneTouch Pop 2) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Alcatel OT POP 2 7043K, Step 1/1 How to disassemble Alcatel OT POP 2 7043K, Step 1/2

Step 1.

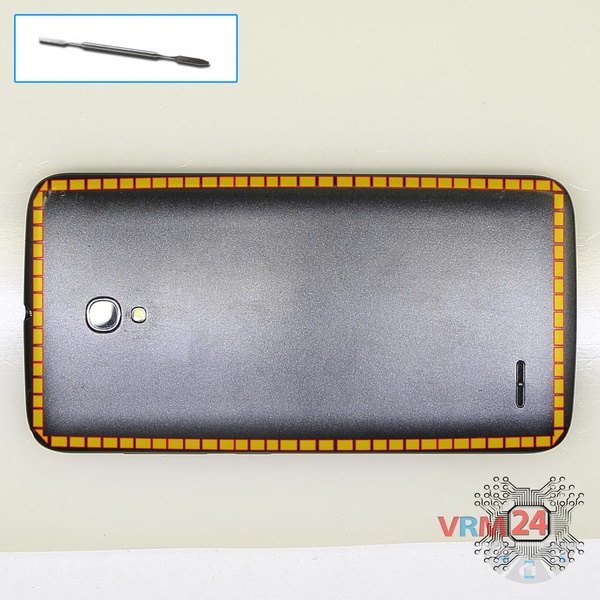

Open the back cover.

How to disassemble Alcatel OT POP 2 7043K, Step 2/1 How to disassemble Alcatel OT POP 2 7043K, Step 2/2

Step 2.

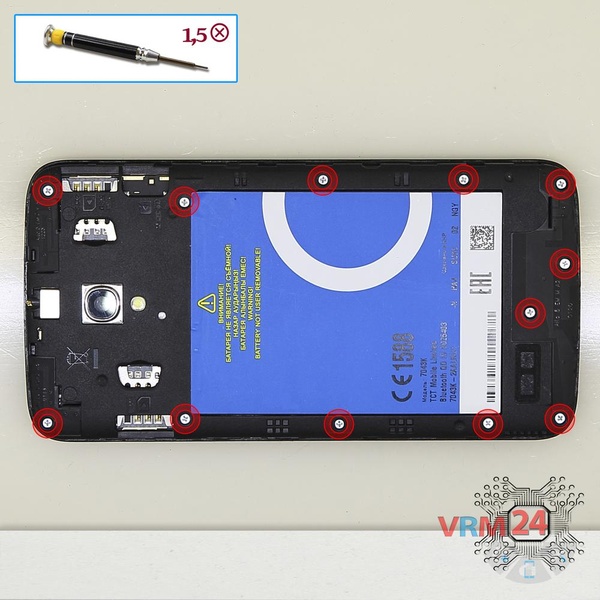

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.

How to disassemble Alcatel OT POP 2 7043K, Step 3/1 How to disassemble Alcatel OT POP 2 7043K, Step 3/2

Step 3.

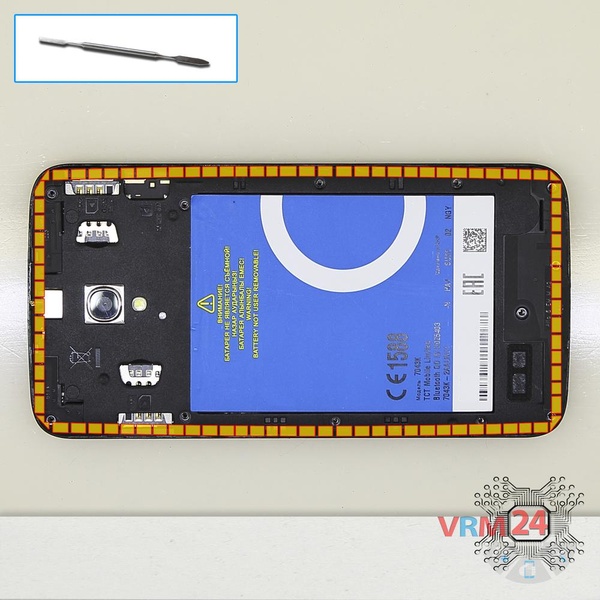

Pry and remove the middle frame.

How to disassemble Alcatel OT POP 2 7043K, Step 4/1 How to disassemble Alcatel OT POP 2 7043K, Step 4/2 How to disassemble Alcatel OT POP 2 7043K, Step 4/3

Step 4.

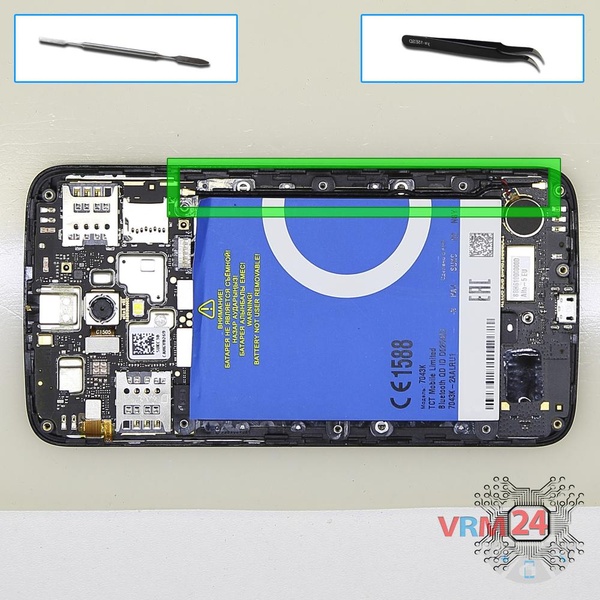

Disconnect connectors & remove the coaxial cable.

How to disassemble Alcatel OT POP 2 7043K, Step 5/1 How to disassemble Alcatel OT POP 2 7043K, Step 5/2 How to disassemble Alcatel OT POP 2 7043K, Step 5/3

Step 5.

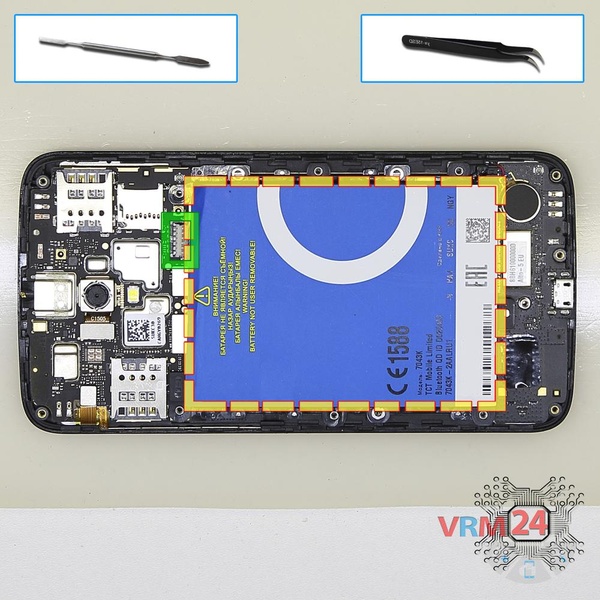

Disconnect connector & remove the battery.

How to disassemble Alcatel OT POP 2 7043K, Step 6/1 How to disassemble Alcatel OT POP 2 7043K, Step 6/2 How to disassemble Alcatel OT POP 2 7043K, Step 6/3 How to disassemble Alcatel OT POP 2 7043K, Step 6/4

Step 6.

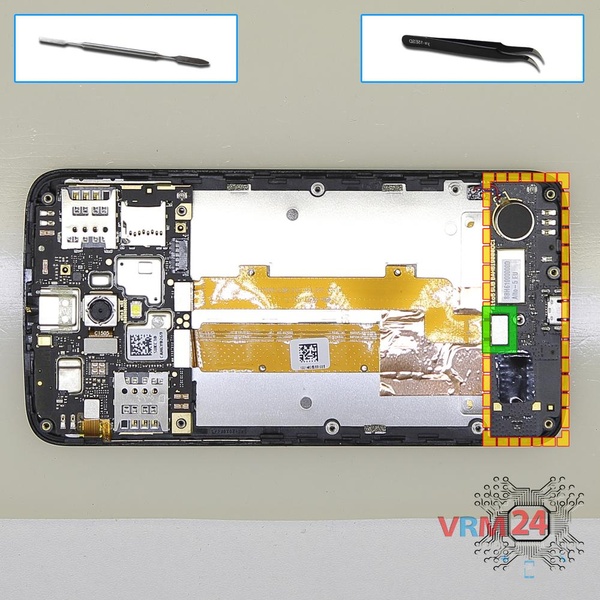

Disconnect the inter-board connector and remove the lower board with a vibrator and a charging port.

How to disassemble Alcatel OT POP 2 7043K, Step 7/1 How to disassemble Alcatel OT POP 2 7043K, Step 7/2 How to disassemble Alcatel OT POP 2 7043K, Step 7/3

Step 7.

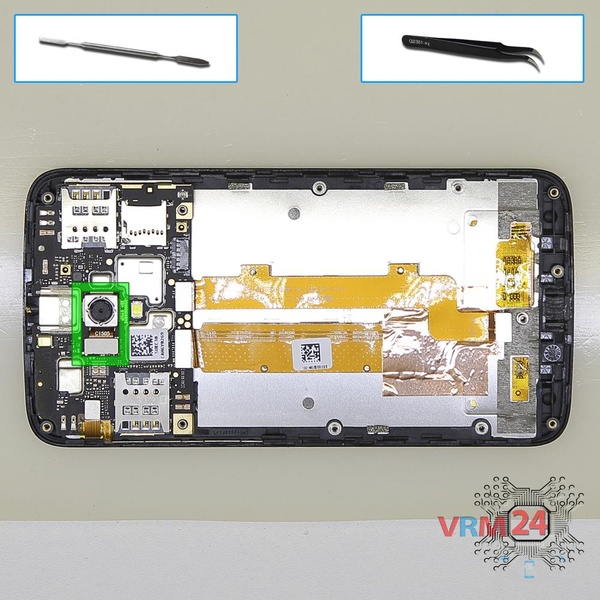

Disconnect connector on the PCB and remove the main camera.

How to disassemble Alcatel OT POP 2 7043K, Step 8/1 How to disassemble Alcatel OT POP 2 7043K, Step 8/2 How to disassemble Alcatel OT POP 2 7043K, Step 8/3 How to disassemble Alcatel OT POP 2 7043K, Step 8/4

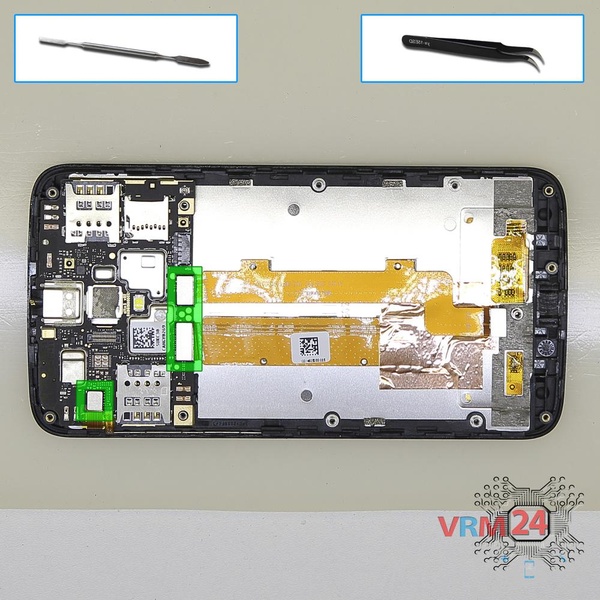

Step 8.

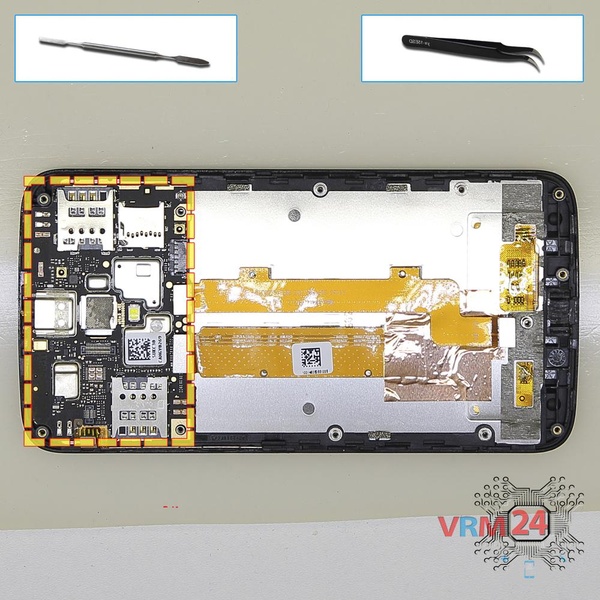

Disconnect connectors on the main PCB.

How to disassemble Alcatel OT POP 2 7043K, Step 9/1 How to disassemble Alcatel OT POP 2 7043K, Step 9/2

Step 9.

Remove the PCB.

How to disassemble Alcatel OT POP 2 7043K, Step 10/1 How to disassemble Alcatel OT POP 2 7043K, Step 10/2 How to disassemble Alcatel OT POP 2 7043K, Step 10/3

Step 10.

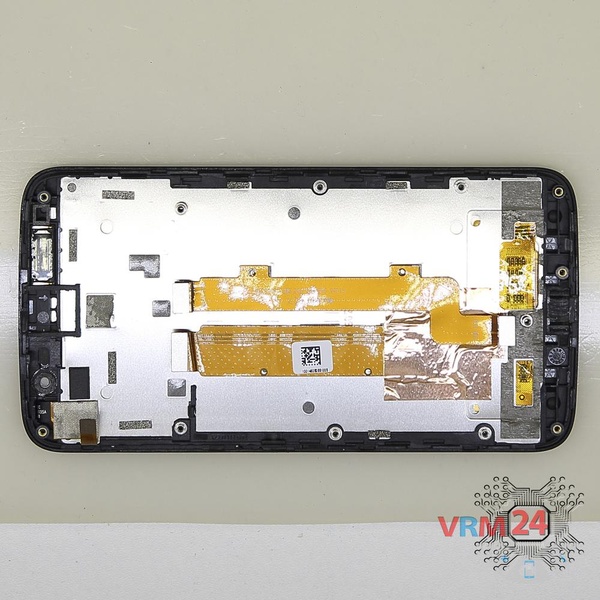

Parts in the frame of the display module.

Detailed disassembly instructions of Alcatel OT POP 2 7043K in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Alcatel #Alcatel OT POP 2 7043K
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Alcatel OT POP 2 7043K — Alcatel OneTouch Pop 2 released for markets in different countries.
