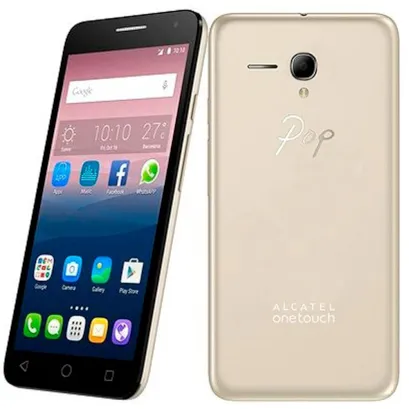

Disassembly/Repair of the mobile device Alcatel OT POP 3 5025D (Alcatel OneTouch Pop 3) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Alcatel OT POP 3 5025D, Step 1/1 How to disassemble Alcatel OT POP 3 5025D, Step 1/2

Step 1.

Open the back cover.


How to disassemble Alcatel OT POP 3 5025D, Step 2/1 How to disassemble Alcatel OT POP 3 5025D, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 13 bolts in the frame of the phone.


How to disassemble Alcatel OT POP 3 5025D, Step 3/1 How to disassemble Alcatel OT POP 3 5025D, Step 3/2

Step 3.

Pry and remove the middle frame.


How to disassemble Alcatel OT POP 3 5025D, Step 4/1 How to disassemble Alcatel OT POP 3 5025D, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.


How to disassemble Alcatel OT POP 3 5025D, Step 5/1 How to disassemble Alcatel OT POP 3 5025D, Step 5/2

Step 5.

Pry & remove the protective panel.


How to disassemble Alcatel OT POP 3 5025D, Step 6/1 How to disassemble Alcatel OT POP 3 5025D, Step 6/2

Step 6.

Disconnect the connector on the PCB and remove the battery.


How to disassemble Alcatel OT POP 3 5025D, Step 7/1 How to disassemble Alcatel OT POP 3 5025D, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the lower PCB.


How to disassemble Alcatel OT POP 3 5025D, Step 8/1 How to disassemble Alcatel OT POP 3 5025D, Step 8/2

Step 8.

Disconnect the connectors on the lower PCB, remove the vibrator and remove the board.


How to disassemble Alcatel OT POP 3 5025D, Step 9/1 How to disassemble Alcatel OT POP 3 5025D, Step 9/2 How to disassemble Alcatel OT POP 3 5025D, Step 9/3

Step 9.

Disconnect connectors on the PCB.


How to disassemble Alcatel OT POP 3 5025D, Step 10/1 How to disassemble Alcatel OT POP 3 5025D, Step 10/2

Step 10.

Remove the PCB.


How to disassemble Alcatel OT POP 3 5025D, Step 11/1 How to disassemble Alcatel OT POP 3 5025D, Step 11/2 How to disassemble Alcatel OT POP 3 5025D, Step 11/3

Step 11.

Parts in the frame of the display module.

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about minutes in time.
Our manual is suitable for all models Alcatel OT POP 3 5025D — Alcatel OneTouch Pop 3 released for markets in different countries.
