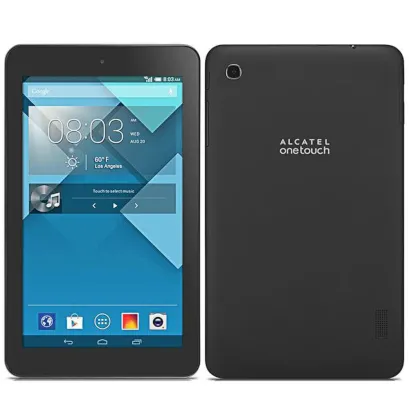

Alcatel OT POP 7 P310X
Alcatel OT POP 7 P310X
Teardown difficulty:
Easy
Duration:
3 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Alcatel OT POP 7 P310X (Alcatel OneTouch Pop7 P310X) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Alcatel OT POP 7 P310X, Step 1/1 How to disassemble Alcatel OT POP 7 P310X, Step 1/2

Step 1.

Open the back cover.

How to disassemble Alcatel OT POP 7 P310X, Step 2/1 How to disassemble Alcatel OT POP 7 P310X, Step 2/2 How to disassemble Alcatel OT POP 7 P310X, Step 2/3

Step 2.

Disconnect the connector and remove the cable with a mic.

How to disassemble Alcatel OT POP 7 P310X, Step 3/1 How to disassemble Alcatel OT POP 7 P310X, Step 3/2

Step 3.

Disconnect the connector coaxial cable.

How to disassemble Alcatel OT POP 7 P310X, Step 4/1 How to disassemble Alcatel OT POP 7 P310X, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the PCB.

How to disassemble Alcatel OT POP 7 P310X, Step 5/1 How to disassemble Alcatel OT POP 7 P310X, Step 5/2 How to disassemble Alcatel OT POP 7 P310X, Step 5/3

Step 5.

Disconnect connectors on the PCB.

How to disassemble Alcatel OT POP 7 P310X, Step 6/1 How to disassemble Alcatel OT POP 7 P310X, Step 6/2

Step 6.

Remove the PCB.

How to disassemble Alcatel OT POP 7 P310X, Step 7/1 How to disassemble Alcatel OT POP 7 P310X, Step 7/2 How to disassemble Alcatel OT POP 7 P310X, Step 7/3

Step 7.

The battery & parts in the frame of the display module.

Detailed disassembly instructions of Alcatel OT POP 7 P310X in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Alcatel #Alcatel OT POP 7 P310X
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Alcatel OT POP 7 P310X — Alcatel OneTouch Pop7 P310X released for markets in different countries.
