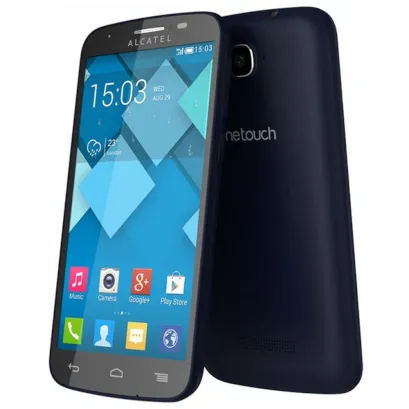

Disassembly/Repair of the mobile device Alcatel OT POP C5 5036D (Alcatel OneTouch Pop C5) with each step description and the required set of tools.

4739

Views

—

Share

8

Questions

Vadim Popoff

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

Open the back cover

Step 1.

Open the back cover

Open the back cover.

Remove the battery

Step 2.

Remove the battery

Lift and remove the battery.

Unscrew the screws

Step 3.

Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the phone.

Open the mid-frame

Step 4.

Open the mid-frame

Pry and remove the middle frame.

Disconnect the connectors

Step 5.

Disconnect the connectors

Disconnect connectors on the PCB.

Remove the motherboard

Step 6.

Remove the motherboard

Remove the PCB.

In the display frame remained

Step 7.

In the display frame remained

Parts in the frame of the display module.

Remove the sub-board

Step 8.

Remove the sub-board

Disconnect the connectors on the PCB and remove the board with SIM card slots. Also remove the main and front cameras.

Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Disassembling\Repair has easy complexity and takes about 4 minutes in time. Our manual is suitable for all models Alcatel OT POP C5 5036D or Alcatel OneTouch Pop C5 released for markets in different countries.
#instructions #Alcatel #Alcatel OT POP C5 5036D
