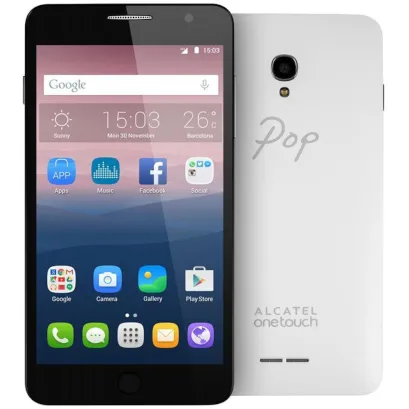

Disassembly/Repair of the mobile device Alcatel OT POP Star 5022D (Alcatel OneTouch Pop Star) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Alcatel OT POP Star 5022D, Step 1/1 How to disassemble Alcatel OT POP Star 5022D, Step 1/2

Step 1.

Open the back cover.


How to disassemble Alcatel OT POP Star 5022D, Step 2/1 How to disassemble Alcatel OT POP Star 5022D, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble Alcatel OT POP Star 5022D, Step 3/1 How to disassemble Alcatel OT POP Star 5022D, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 bolts in the frame of the phone.


How to disassemble Alcatel OT POP Star 5022D, Step 4/1 How to disassemble Alcatel OT POP Star 5022D, Step 4/2

Step 4.

Pry & remove the middle frame and the volume and power buttons.


How to disassemble Alcatel OT POP Star 5022D, Step 5/1 How to disassemble Alcatel OT POP Star 5022D, Step 5/2

Step 5.

Pry & remove the speaker (buzzer).


How to disassemble Alcatel OT POP Star 5022D, Step 6/1 How to disassemble Alcatel OT POP Star 5022D, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the lower PCB.


How to disassemble Alcatel OT POP Star 5022D, Step 7/1 How to disassemble Alcatel OT POP Star 5022D, Step 7/2 How to disassemble Alcatel OT POP Star 5022D, Step 7/3 How to disassemble Alcatel OT POP Star 5022D, Step 7/4

Step 7.

Disconnect connectors on the lower PCB and remove it.


How to disassemble Alcatel OT POP Star 5022D, Step 8/1 How to disassemble Alcatel OT POP Star 5022D, Step 8/2

Step 8.

Disconnect connector on the PCB and remove the front (selfie) camera.


How to disassemble Alcatel OT POP Star 5022D, Step 9/1 How to disassemble Alcatel OT POP Star 5022D, Step 9/2

Step 9.

Pry & lift the flexible flat cable of the volume and power buttons.


How to disassemble Alcatel OT POP Star 5022D, Step 10/1 How to disassemble Alcatel OT POP Star 5022D, Step 10/2 How to disassemble Alcatel OT POP Star 5022D, Step 10/3

Step 10.

Disconnect connectors on the PCB.


How to disassemble Alcatel OT POP Star 5022D, Step 11/1 How to disassemble Alcatel OT POP Star 5022D, Step 11/2

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the PCB.


How to disassemble Alcatel OT POP Star 5022D, Step 12/1 How to disassemble Alcatel OT POP Star 5022D, Step 12/2 How to disassemble Alcatel OT POP Star 5022D, Step 12/3 How to disassemble Alcatel OT POP Star 5022D, Step 12/4

Step 12.

Overturn the board, disconnect the connectors from the inside and remove the PCB.


How to disassemble Alcatel OT POP Star 5022D, Step 13/1 How to disassemble Alcatel OT POP Star 5022D, Step 13/2

Step 13.

Pry & remove the coaxial cable and the Menu button key.


How to disassemble Alcatel OT POP Star 5022D, Step 14/1 How to disassemble Alcatel OT POP Star 5022D, Step 14/2

Step 14.

Pry & remove the ear speaker.


How to disassemble Alcatel OT POP Star 5022D, Step 15/1 How to disassemble Alcatel OT POP Star 5022D, Step 15/2 How to disassemble Alcatel OT POP Star 5022D, Step 15/3

Step 15.

Parts in the frame of the display module.

Detailed disassembly instructions of Alcatel OT POP Star 5022D in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Alcatel OT POP Star 5022D — Alcatel OneTouch Pop Star released for markets in different countries.
