Alcatel OT Shine Lite 5080X
Alcatel OT Shine Lite 5080X
Teardown difficulty:
Moderate
Duration:
13 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

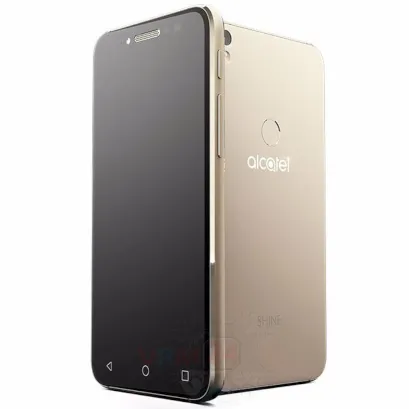

Disassembly/Repair of the mobile device Alcatel OT Shine Lite 5080X (Alcatel OneTouch Shine Lite) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Alcatel OT Shine Lite 5080X, Step 1/1 How to disassemble Alcatel OT Shine Lite 5080X, Step 1/2

Step 1.

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Alcatel OT Shine Lite 5080X, Step 2/1 How to disassemble Alcatel OT Shine Lite 5080X, Step 2/2

Step 2.

Open the back cover. Also, disconnect the fingerprint sensor connector.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Alcatel OT Shine Lite 5080X, Step 3/1 How to disassemble Alcatel OT Shine Lite 5080X, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 15 bolts in the frame of the phone.

How to disassemble Alcatel OT Shine Lite 5080X, Step 4/1 How to disassemble Alcatel OT Shine Lite 5080X, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Alcatel OT Shine Lite 5080X, Step 5/1 How to disassemble Alcatel OT Shine Lite 5080X, Step 5/2

Step 5.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Alcatel OT Shine Lite 5080X, Step 6/1

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Alcatel OT Shine Lite 5080X, Step 7/1 How to disassemble Alcatel OT Shine Lite 5080X, Step 7/2

Step 7.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Alcatel OT Shine Lite 5080X, Step 8/1 How to disassemble Alcatel OT Shine Lite 5080X, Step 8/2

Step 8.

Disconnect connectors on the lower PCB.

How to disassemble Alcatel OT Shine Lite 5080X, Step 9/1 How to disassemble Alcatel OT Shine Lite 5080X, Step 9/2

Step 9.

Remove the lower PCB.

How to disassemble Alcatel OT Shine Lite 5080X, Step 10/1 How to disassemble Alcatel OT Shine Lite 5080X, Step 10/2 How to disassemble Alcatel OT Shine Lite 5080X, Step 10/3

Step 10.

Disconnect connectors on the PCB. In addition, remove the battery.

How to disassemble Alcatel OT Shine Lite 5080X, Step 11/1 How to disassemble Alcatel OT Shine Lite 5080X, Step 11/2

Step 11.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Alcatel OT Shine Lite 5080X, Step 12/1 How to disassemble Alcatel OT Shine Lite 5080X, Step 12/2

Step 12.

Remove the PCB.

How to disassemble Alcatel OT Shine Lite 5080X, Step 13/1 How to disassemble Alcatel OT Shine Lite 5080X, Step 13/2 How to disassemble Alcatel OT Shine Lite 5080X, Step 13/3

Step 13.

Parts are in the frame of the display module.

Detailed disassembly instructions of Alcatel OT Shine Lite 5080X in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Alcatel #Alcatel OT Shine Lite 5080X
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 13 minutes in time.
Our manual is suitable for all models Alcatel OT Shine Lite 5080X — Alcatel OneTouch Shine Lite released for markets in different countries.
