Disassembly of the mobile device Apple iPhone 11 Pro (Apple iPhone 11 Pro A2160, A2215, A2217) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Apple iPhone 11 Pro, Step 1/1 How to disassemble Apple iPhone 11 Pro, Step 1/2

Step 1. Before disassembling!

⚠️ Before disassembling, do not forget to turn your phone off.


How to disassemble Apple iPhone 11 Pro, Step 2/1 How to disassemble Apple iPhone 11 Pro, Step 2/2 How to disassemble Apple iPhone 11 Pro, Step 2/3 How to disassemble Apple iPhone 11 Pro, Step 2/4

Step 2. Remove the tray

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray out.

⚠️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.


How to disassemble Apple iPhone 11 Pro, Step 3/1 How to disassemble Apple iPhone 11 Pro, Step 3/2 How to disassemble Apple iPhone 11 Pro, Step 3/3

Step 3. Unscrew the screws

Using a screwdriver (precision star-shaped 0.8 mm aka Pentalobe), unscrew/drive 2 screws out at the end of the phone.


How to disassemble Apple iPhone 11 Pro, Step 4/1 How to disassemble Apple iPhone 11 Pro, Step 4/2 How to disassemble Apple iPhone 11 Pro, Step 4/3 How to disassemble Apple iPhone 11 Pro, Step 4/4 How to disassemble Apple iPhone 11 Pro, Step 4/5 How to disassemble Apple iPhone 11 Pro, Step 4/6

Step 4. Open the display module

⚠️ Pay attention! Disassembly has a maximum 3rd difficulty because the process begins with the disassembly of the display module. If you have no experience or are not sure of your skills, we strongly recommend that you contact a specialized service center.

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹ️️ The surface of the display module must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside. The process can be seen in our video entirely so as well as in detail, at the end of the instructions.


How to disassemble Apple iPhone 11 Pro, Step 5/1 How to disassemble Apple iPhone 11 Pro, Step 5/2 How to disassemble Apple iPhone 11 Pro, Step 5/3 How to disassemble Apple iPhone 11 Pro, Step 5/4 How to disassemble Apple iPhone 11 Pro, Step 5/5

Step 5. Disconnect the battery connector

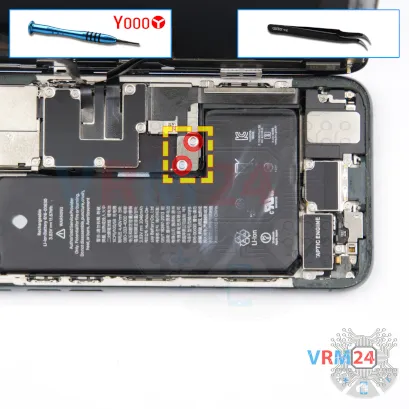

Using a screwdriver (Tri-point Y000 2.0mm), unscrew two screws and remove the bracket securing the connectors.

Disconnect the battery connector as soon as possible.

ℹ️️ The iPhone 11 Pro model has a battery 616-00630 with 3046 mAh capacity (aka rechargeable battery).

⚠️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.


How to disassemble Apple iPhone 11 Pro, Step 6/1 How to disassemble Apple iPhone 11 Pro, Step 6/2 How to disassemble Apple iPhone 11 Pro, Step 6/3 How to disassemble Apple iPhone 11 Pro, Step 6/4

Step 6. Unscrew the screws

Using a screwdriver (Tri-point Y000 2.0mm), unscrew six screws and remove the bracket securing the connectors.


How to disassemble Apple iPhone 11 Pro, Step 7/1 How to disassemble Apple iPhone 11 Pro, Step 7/2 How to disassemble Apple iPhone 11 Pro, Step 7/3 How to disassemble Apple iPhone 11 Pro, Step 7/4 How to disassemble Apple iPhone 11 Pro, Step 7/5

Step 7. Disconnect the connectors

Pry up the connectors and remove the display module.


How to disassemble Apple iPhone 11 Pro, Step 8/1 How to disassemble Apple iPhone 11 Pro, Step 8/2 How to disassemble Apple iPhone 11 Pro, Step 8/3 How to disassemble Apple iPhone 11 Pro, Step 8/4

Step 8. Unscrew the screws

Using a screwdriver (Tri-point Y000 2.0mm), unscrew two screws and remove the bracket securing the rear cameras.


How to disassemble Apple iPhone 11 Pro, Step 9/1 How to disassemble Apple iPhone 11 Pro, Step 9/2 How to disassemble Apple iPhone 11 Pro, Step 9/3 How to disassemble Apple iPhone 11 Pro, Step 9/4

Step 9. Remove the rear camera

Pry up the connectors and remove two rear cameras assembly.


How to disassemble Apple iPhone 11 Pro, Step 10/1 How to disassemble Apple iPhone 11 Pro, Step 10/2 How to disassemble Apple iPhone 11 Pro, Step 10/3 How to disassemble Apple iPhone 11 Pro, Step 10/4

Step 10. Remove the front camera

Disconnect the connector and remove the assembly with the front camera and face id.


How to disassemble Apple iPhone 11 Pro, Step 11/1 How to disassemble Apple iPhone 11 Pro, Step 11/2 How to disassemble Apple iPhone 11 Pro, Step 11/3 How to disassemble Apple iPhone 11 Pro, Step 11/4 How to disassemble Apple iPhone 11 Pro, Step 11/5 How to disassemble Apple iPhone 11 Pro, Step 11/6 How to disassemble Apple iPhone 11 Pro, Step 11/7

Step 11. Unscrew the screws

Using a screwdriver (Tri-point Y000 2.0mm), unscrew two screws and remove the bracket securing the cable. Also, using a screwdriver (Phillips iPhone 2.5 mm barrel screwdriver), unscrew three barrel-screws.


How to disassemble Apple iPhone 11 Pro, Step 12/1 How to disassemble Apple iPhone 11 Pro, Step 12/2 How to disassemble Apple iPhone 11 Pro, Step 12/3 How to disassemble Apple iPhone 11 Pro, Step 12/4 How to disassemble Apple iPhone 11 Pro, Step 12/5

Step 12. Disconnect the connectors

Pry up the connectors.


How to disassemble Apple iPhone 11 Pro, Step 13/1 How to disassemble Apple iPhone 11 Pro, Step 13/2 How to disassemble Apple iPhone 11 Pro, Step 13/3 How to disassemble Apple iPhone 11 Pro, Step 13/4

Step 13. Remove the motherboard

Do not forget to press the card ejection pusher back. Because it will catch the housing side and hold the motherboard.

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Apple iPhone 11 Pro, Step 14/1 How to disassemble Apple iPhone 11 Pro, Step 14/2 How to disassemble Apple iPhone 11 Pro, Step 14/3 How to disassemble Apple iPhone 11 Pro, Step 14/4 How to disassemble Apple iPhone 11 Pro, Step 14/5

Step 14. Unscrew the screws

Using a screwdriver (Tri-point Y000 2.0mm), unscrew four screws and remove the bracket securing the connectors.


How to disassemble Apple iPhone 11 Pro, Step 15/1 How to disassemble Apple iPhone 11 Pro, Step 15/2 How to disassemble Apple iPhone 11 Pro, Step 15/3 How to disassemble Apple iPhone 11 Pro, Step 15/4 How to disassemble Apple iPhone 11 Pro, Step 15/5 How to disassemble Apple iPhone 11 Pro, Step 15/6 How to disassemble Apple iPhone 11 Pro, Step 15/7 How to disassemble Apple iPhone 11 Pro, Step 15/8 How to disassemble Apple iPhone 11 Pro, Step 15/9

Step 15. Remove the battery

Disconnect the second battery connector and remove the battery. There is only one way to remove the battery - pulling the tabs to remove the adhesive lines. If the tags are cut because of the adhesive lines drought, we need to use isopropyl alcohol to soften the adhesive and a plastic sheet to separate the battery.


How to disassemble Apple iPhone 11 Pro, Step 16/1 How to disassemble Apple iPhone 11 Pro, Step 16/2 How to disassemble Apple iPhone 11 Pro, Step 16/3 How to disassemble Apple iPhone 11 Pro, Step 16/4 How to disassemble Apple iPhone 11 Pro, Step 16/5 How to disassemble Apple iPhone 11 Pro, Step 16/6

Step 16. Unscrew the screws

Using a screwdriver (Philips 1.5 mm PH000), unscrew two screws. Also, using a screwdriver (Phillips iPhone 2.5 mm barrel screwdriver), unscrew one barrel screw. After, disconnect the connector and remove the loudspeaker.


How to disassemble Apple iPhone 11 Pro, Step 17/1 How to disassemble Apple iPhone 11 Pro, Step 17/2 How to disassemble Apple iPhone 11 Pro, Step 17/3 How to disassemble Apple iPhone 11 Pro, Step 17/4 How to disassemble Apple iPhone 11 Pro, Step 17/5 How to disassemble Apple iPhone 11 Pro, Step 17/6

Step 17. Remove the vibration motor

Using a screwdriver (Tri-point Y000 2.0mm), unscrew one screw. Also, using a screwdriver (Phillips iPhone 2.5 mm barrel screwdriver), unscrew one barrel screw. After, disconnect the connector and remove the taptic engine (aka vibration motor).


How to disassemble Apple iPhone 11 Pro, Step 18/1 How to disassemble Apple iPhone 11 Pro, Step 18/2 How to disassemble Apple iPhone 11 Pro, Step 18/3 How to disassemble Apple iPhone 11 Pro, Step 18/4 How to disassemble Apple iPhone 11 Pro, Step 18/5

Step 18. Unscrew one screw

Using a screwdriver (Philips 1.5 mm PH000), unscrew one screw and remove the bracket.


How to disassemble Apple iPhone 11 Pro, Step 19/1 How to disassemble Apple iPhone 11 Pro, Step 19/2 How to disassemble Apple iPhone 11 Pro, Step 19/3 How to disassemble Apple iPhone 11 Pro, Step 19/4 How to disassemble Apple iPhone 11 Pro, Step 19/5 How to disassemble Apple iPhone 11 Pro, Step 19/6 How to disassemble Apple iPhone 11 Pro, Step 19/7

Step 19. Unscrew the screws

Using screwdrivers Philips 1.5 mm PH000, Tri-point Y000, Philips iPhone 2.5 mm unscrew 9 screws.

ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its part. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.


How to disassemble Apple iPhone 11 Pro, Step 20/1 How to disassemble Apple iPhone 11 Pro, Step 20/2 How to disassemble Apple iPhone 11 Pro, Step 20/3 How to disassemble Apple iPhone 11 Pro, Step 20/4 How to disassemble Apple iPhone 11 Pro, Step 20/5

Step 20. Remove the charging port

Carefully peel off the flat cable with a charging port, microphones.


How to disassemble Apple iPhone 11 Pro, Step 21/1 How to disassemble Apple iPhone 11 Pro, Step 21/2 How to disassemble Apple iPhone 11 Pro, Step 21/3

Step 21. In the housing remained

The housing.

Detailed disassembly instructions of Apple iPhone 11 Pro in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has hard complexity and takes about minutes in time. Our manual is suitable for all models Apple iPhone 11 Pro — Apple iPhone 11 Pro A2160, A2215, A2217 released for markets in different countries.
