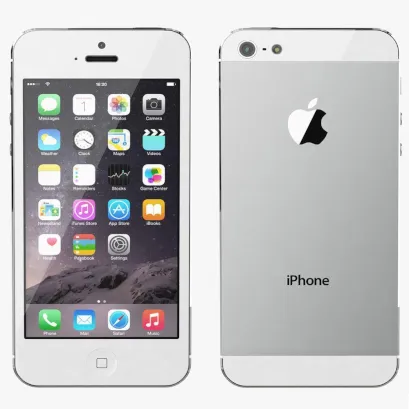

Apple iPhone 5
Apple iPhone 5
Teardown difficulty:
Moderate
Duration:
8 min

Recommended tools

Clamp Clamp
Screwdriver Five-point P0.8 mm Screwdriver five-point p0.8 mm
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers
Eject tool Eject tool

Disassembly/Repair of the mobile device Apple iPhone 5 (iPhone 5 A1429, A1428) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Apple iPhone 5, Step 1/1 How to disassemble Apple iPhone 5, Step 1/2

Step 1.

Using the key tool, open the SIM card slot and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Apple iPhone 5, Step 2/1 How to disassemble Apple iPhone 5, Step 2/2

Step 2.

Using screwdriver (Star Shape 0.8mm Pentalobe), unscrew the 2 bolts on the end of the phone.

How to disassemble Apple iPhone 5, Step 3/1 How to disassemble Apple iPhone 5, Step 3/2

Step 3.

Lift the display module.

How to disassemble Apple iPhone 5, Step 4/1 How to disassemble Apple iPhone 5, Step 4/2 How to disassemble Apple iPhone 5, Step 4/3

Step 4.

Using screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts and remove the brackets retaining connectors.

How to disassemble Apple iPhone 5, Step 5/1 How to disassemble Apple iPhone 5, Step 5/2 How to disassemble Apple iPhone 5, Step 5/3

Step 5.

Using  screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts and remove another bracket retaining connectors.

How to disassemble Apple iPhone 5, Step 6/1 How to disassemble Apple iPhone 5, Step 6/2 How to disassemble Apple iPhone 5, Step 6/3

Step 6.

Remove the display module.

How to disassemble Apple iPhone 5, Step 7/1 How to disassemble Apple iPhone 5, Step 7/2

Step 7.

Separate and remove the battery.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Apple iPhone 5, Step 8/1 How to disassemble Apple iPhone 5, Step 8/2 How to disassemble Apple iPhone 5, Step 8/3

Step 8.

Disconnect connectors and remove coaxial cables.

How to disassemble Apple iPhone 5, Step 9/1 How to disassemble Apple iPhone 5, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 bolts.

How to disassemble Apple iPhone 5, Step 10/1 How to disassemble Apple iPhone 5, Step 10/2 How to disassemble Apple iPhone 5, Step 10/3 How to disassemble Apple iPhone 5, Step 10/4 How to disassemble Apple iPhone 5, Step 10/5 How to disassemble Apple iPhone 5, Step 10/6

Step 10.

Disconnect connectors on the PCB.

How to disassemble Apple iPhone 5, Step 11/1 How to disassemble Apple iPhone 5, Step 11/2 How to disassemble Apple iPhone 5, Step 11/3

Step 11.

Turn over the PCB, disconnect connector of the coaxial cable and remove the board.

How to disassemble Apple iPhone 5, Step 12/1 How to disassemble Apple iPhone 5, Step 12/2 How to disassemble Apple iPhone 5, Step 12/3

Step 12.

Parts in the housing.

Detailed disassembly instructions of Apple iPhone 5 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Apple #Apple iPhone 5
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 8 minutes in time.
Our manual is suitable for all models Apple iPhone 5 — iPhone 5 A1429, A1428 released for markets in different countries.
