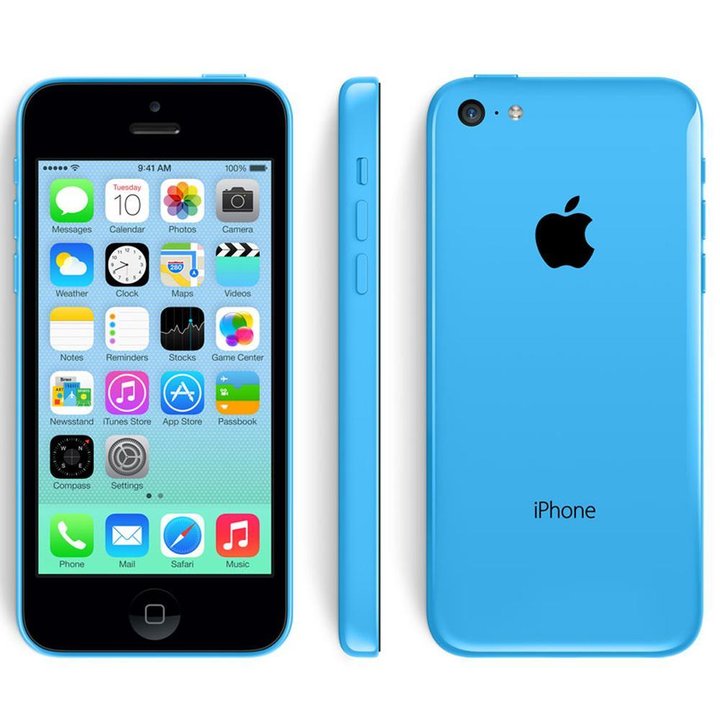

Apple iPhone 5C
Apple iPhone 5C 655 0
Teardown difficulty:
Moderate
Duration:
4 min

Recommended tools


Specialist in content creation, distribution and content management.


How to disassemble Apple iPhone 5C, Step 1/1

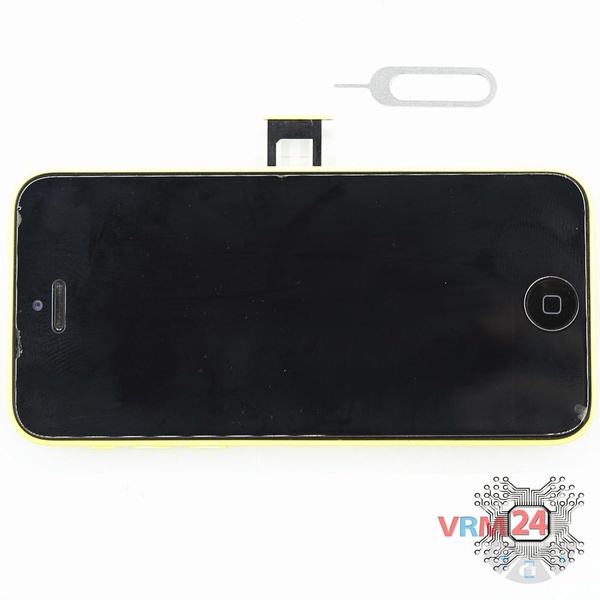

Step 1

Using the key tool, open the SIM card slot and remove it.

Warning!

Do not push too hard this may cause damage.

How to disassemble Apple iPhone 5C, Step 2/1 How to disassemble Apple iPhone 5C, Step 2/2

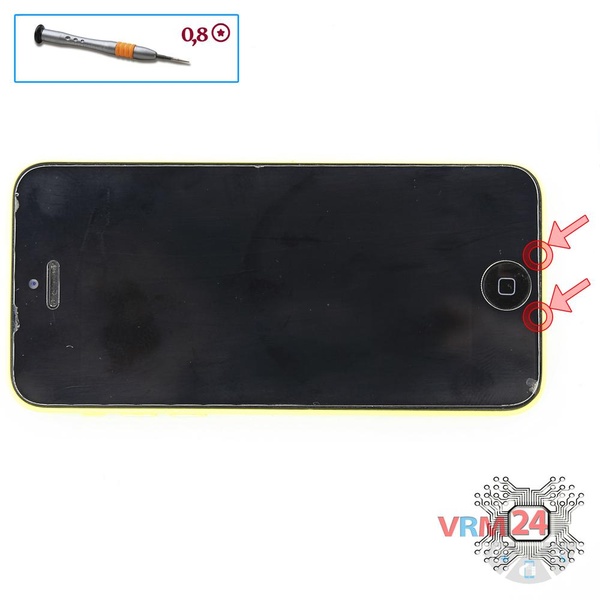

Step 2

Using a screwdriver ((Star Shape 0.8mm Pentalobe), unscrew the 2 bolts on the end of the phone.

How to disassemble Apple iPhone 5C, Step 3/1 How to disassemble Apple iPhone 5C, Step 3/2

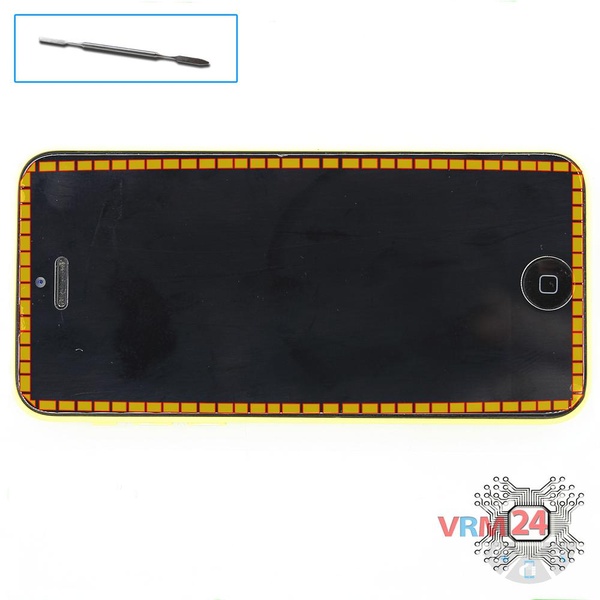

Step 3

Lift the display module.

How to disassemble Apple iPhone 5C, Step 4/1 How to disassemble Apple iPhone 5C, Step 4/2

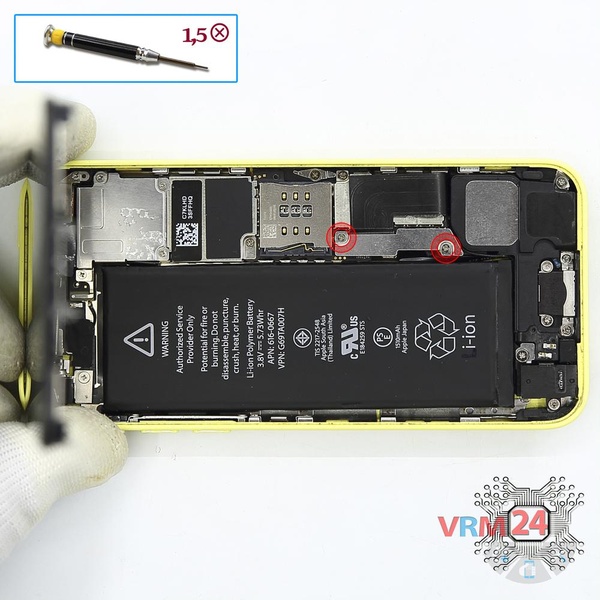

Step 4

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the bracket holds the connectors.

How to disassemble Apple iPhone 5C, Step 5/1 How to disassemble Apple iPhone 5C, Step 5/2
Step 5

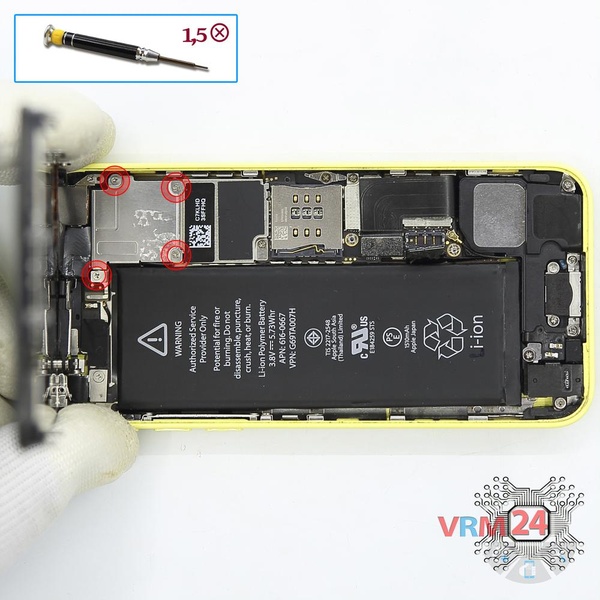

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts and remove the bracket holds of the connector of the display.

How to disassemble Apple iPhone 5C, Step 6/1 How to disassemble Apple iPhone 5C, Step 6/2 How to disassemble Apple iPhone 5C, Step 6/3
Step 6

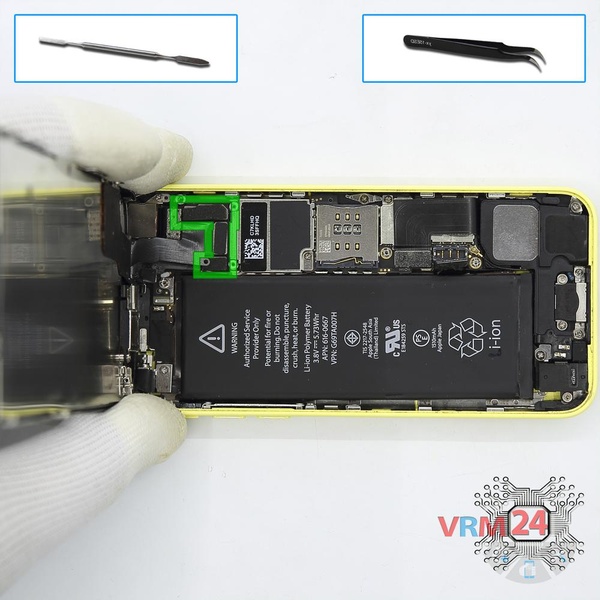

Remove the display module.

How to disassemble Apple iPhone 5C, Step 7/1 How to disassemble Apple iPhone 5C, Step 7/2 How to disassemble Apple iPhone 5C, Step 7/3

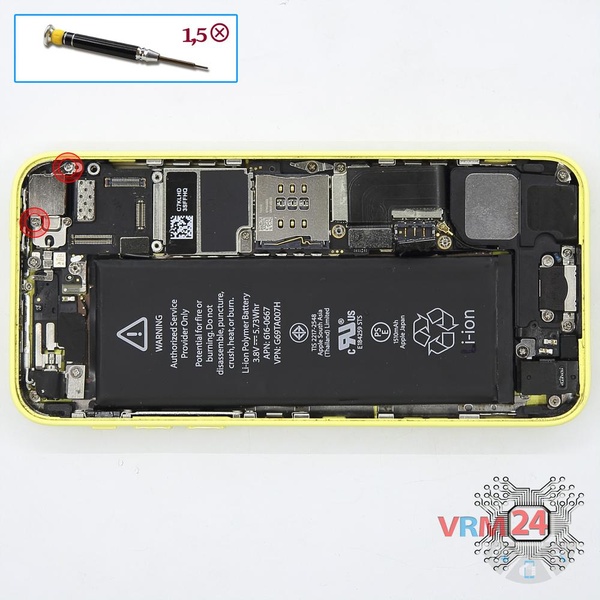

Step 7

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts & remove the protection of the front-facing camera and remove it.

How to disassemble Apple iPhone 5C, Step 8/1 How to disassemble Apple iPhone 5C, Step 8/2
Step 8

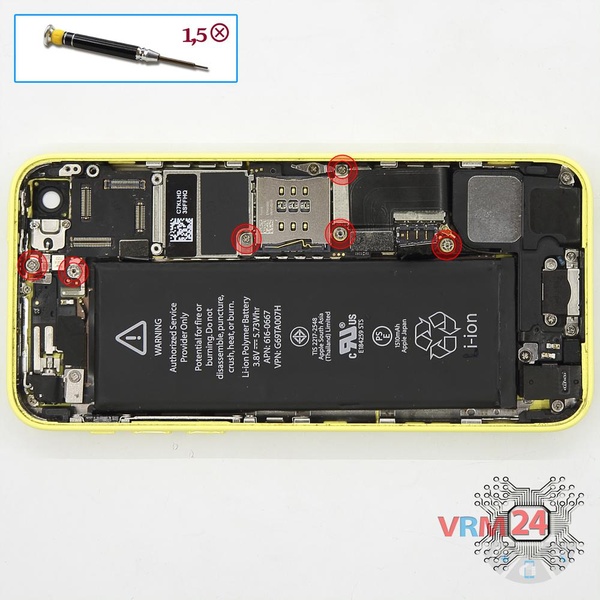

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts.

How to disassemble Apple iPhone 5C, Step 9/1 How to disassemble Apple iPhone 5C, Step 9/2 How to disassemble Apple iPhone 5C, Step 9/3 How to disassemble Apple iPhone 5C, Step 9/4 How to disassemble Apple iPhone 5C, Step 9/5 How to disassemble Apple iPhone 5C, Step 9/6

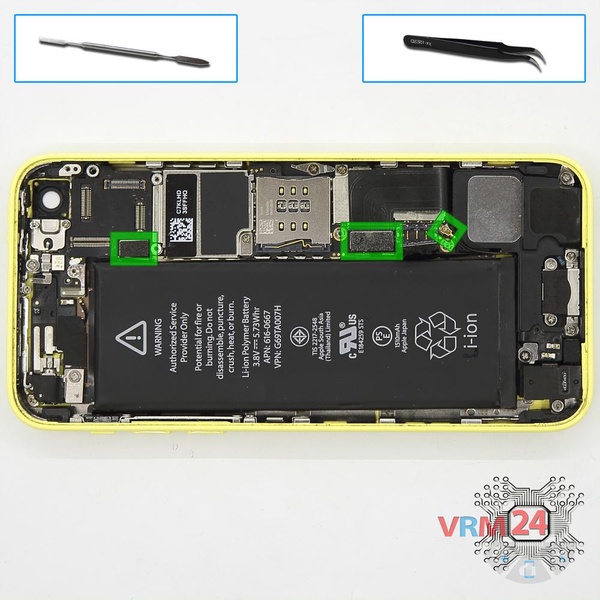

Step 9

Disconnect connectors on the PCB.

How to disassemble Apple iPhone 5C, Step 10/1 How to disassemble Apple iPhone 5C, Step 10/2

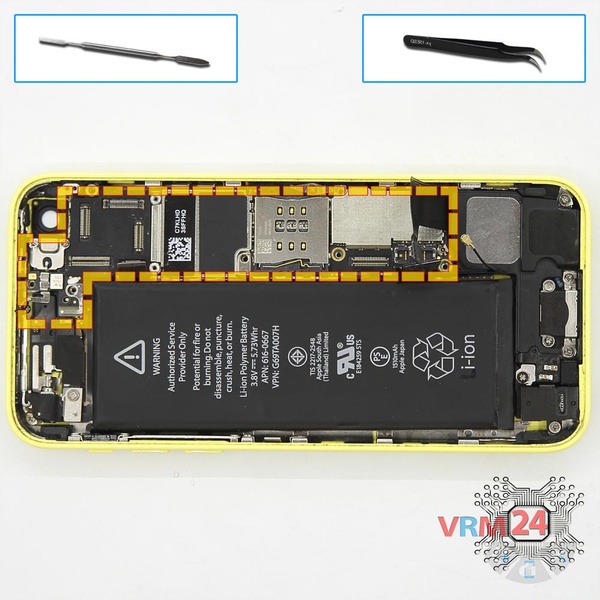

Step 10

Remove the PCB.

How to disassemble Apple iPhone 5C, Step 11/1 How to disassemble Apple iPhone 5C, Step 11/2 How to disassemble Apple iPhone 5C, Step 11/3 How to disassemble Apple iPhone 5C, Step 11/4

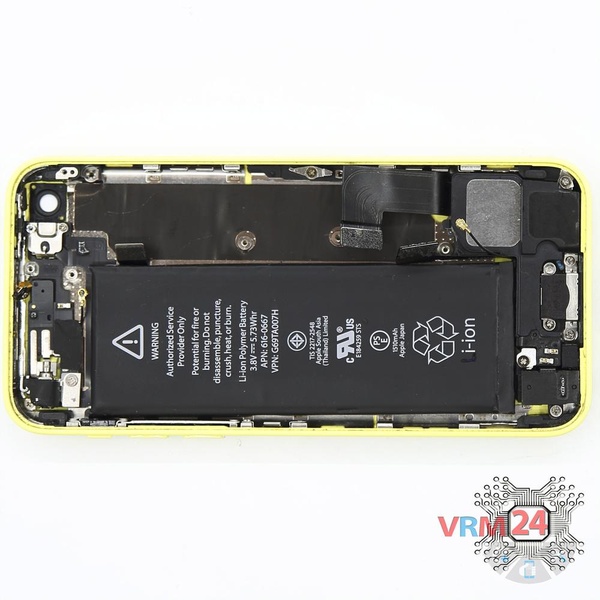

Step 11

Parts in the device case (housing or back cover).

Detailed disassembly instructions of Apple iPhone 5C in the video, made by our mobile repair & service center:


Disassembling\Repair has medium complexity and takes about 4 minutes in time.
Our manual is suitable for all models Apple iPhone 5C released for markets in different countries.
