Apple iPhone 5S
Apple iPhone 5S
Teardown difficulty:
Moderate
Duration:
4 min

Recommended tools

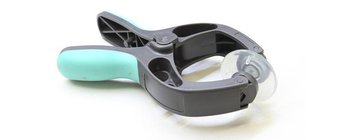

Clamp Clamp
Screwdriver Five-point P0.8 mm Screwdriver five-point p0.8 mm
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers
Eject tool Eject tool

Disassembly/Repair of the mobile device Apple iPhone 5S (iPhone 5S A1457, A1533, A1453) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Apple iPhone 5S, Step 1/1

Step 1.

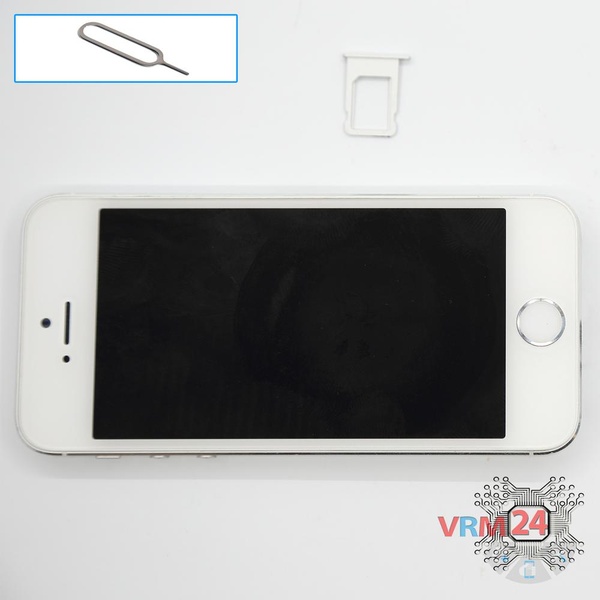

Using the key tool, open the SIM card slot and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Apple iPhone 5S, Step 2/1

Step 2.

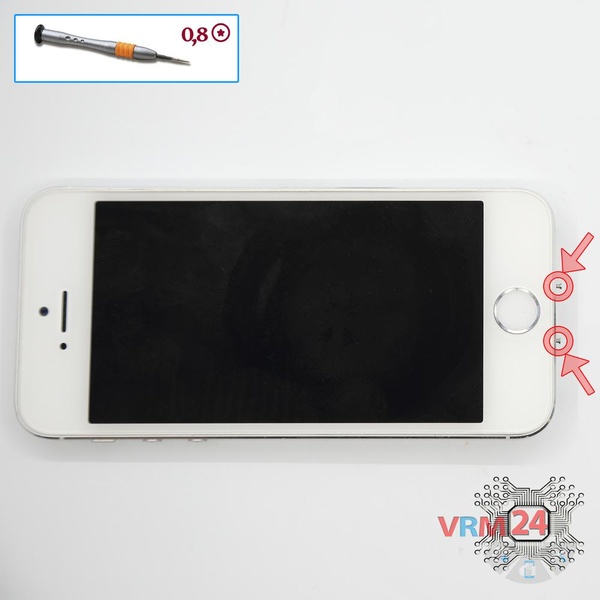

Using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew the 2 bolts on the end of the phone.

How to disassemble Apple iPhone 5S, Step 3/1 How to disassemble Apple iPhone 5S, Step 3/2 How to disassemble Apple iPhone 5S, Step 3/3 How to disassemble Apple iPhone 5S, Step 3/4

Step 3.

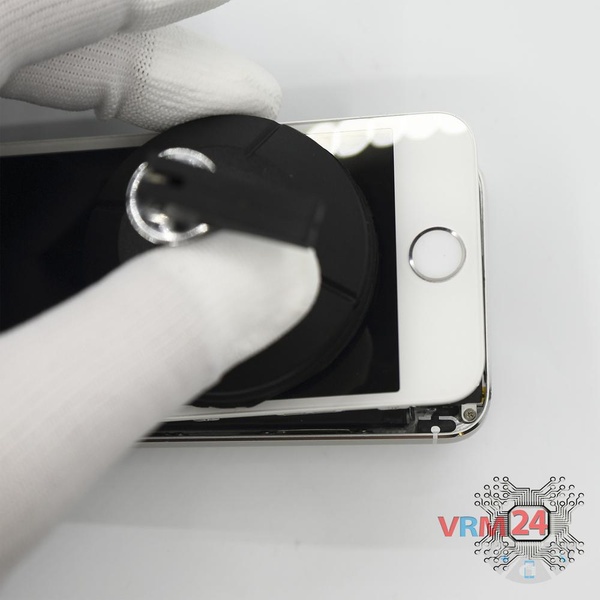

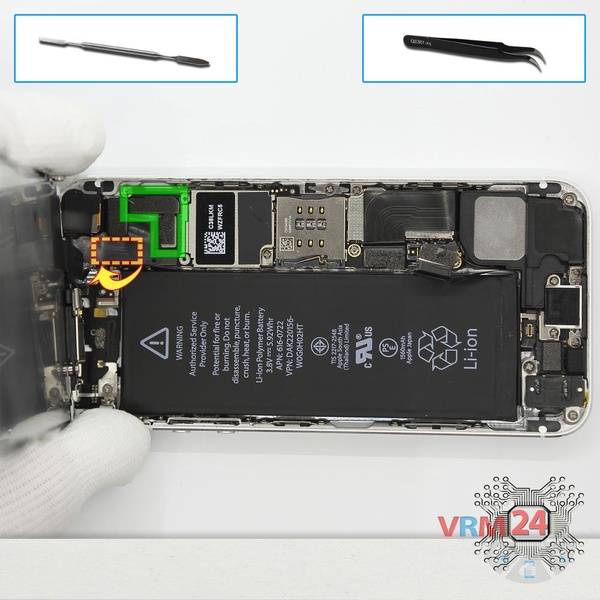

Lift the display module, disconnect the Home button connector on the PCB and open the module.

⚠️ Warning!

It is necessary to lift the module carefully so as not to damage the FF cable of the Home button.

How to disassemble Apple iPhone 5S, Step 4/1 How to disassemble Apple iPhone 5S, Step 4/2

Step 4.

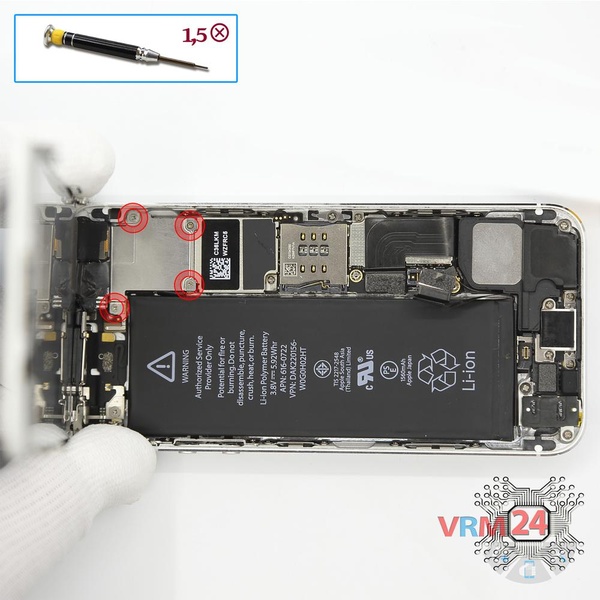

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts and remove the bracket holds of the connectors.

How to disassemble Apple iPhone 5S, Step 5/1 How to disassemble Apple iPhone 5S, Step 5/2 How to disassemble Apple iPhone 5S, Step 5/3

Step 5.

Remove the display.

How to disassemble Apple iPhone 5S, Step 6/1 How to disassemble Apple iPhone 5S, Step 6/2

Step 6.

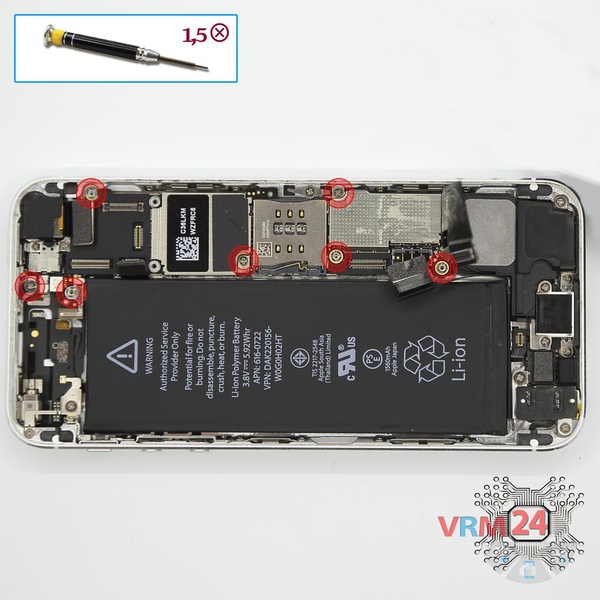

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the 7 bolts.

How to disassemble Apple iPhone 5S, Step 7/1 How to disassemble Apple iPhone 5S, Step 7/2 How to disassemble Apple iPhone 5S, Step 7/3 How to disassemble Apple iPhone 5S, Step 7/4 How to disassemble Apple iPhone 5S, Step 7/5

Step 7.

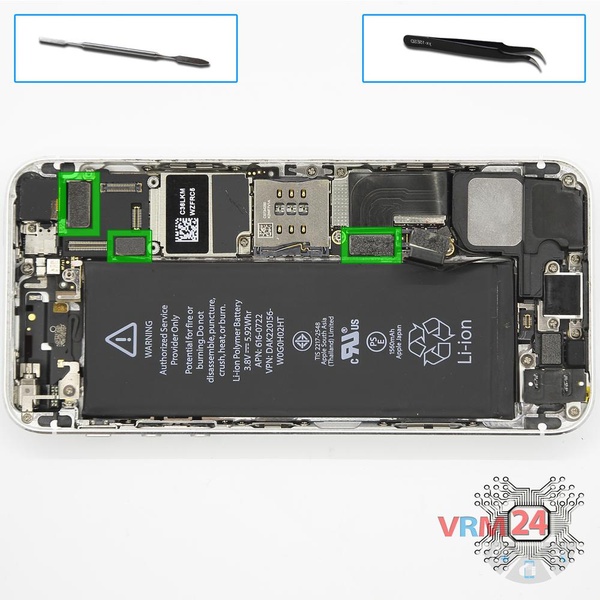

Disconnect connectors on the PCB.

How to disassemble Apple iPhone 5S, Step 8/1 How to disassemble Apple iPhone 5S, Step 8/2 How to disassemble Apple iPhone 5S, Step 8/3

Step 8.

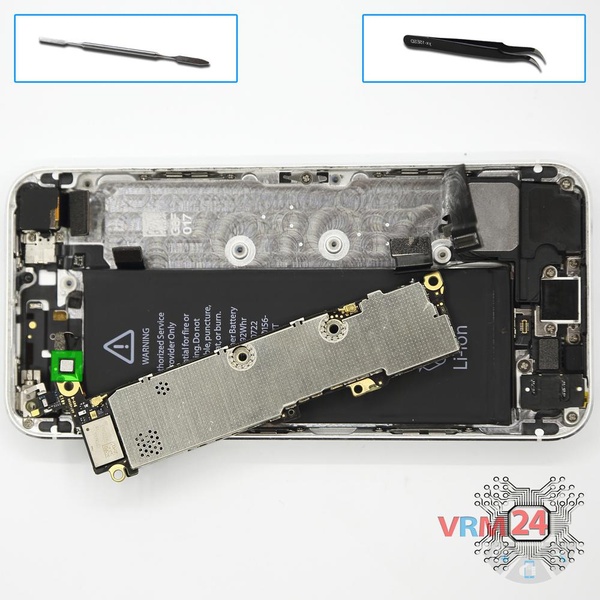

Remove the PCB.

How to disassemble Apple iPhone 5S, Step 9/1 How to disassemble Apple iPhone 5S, Step 9/2 How to disassemble Apple iPhone 5S, Step 9/3 How to disassemble Apple iPhone 5S, Step 9/4

Step 9.

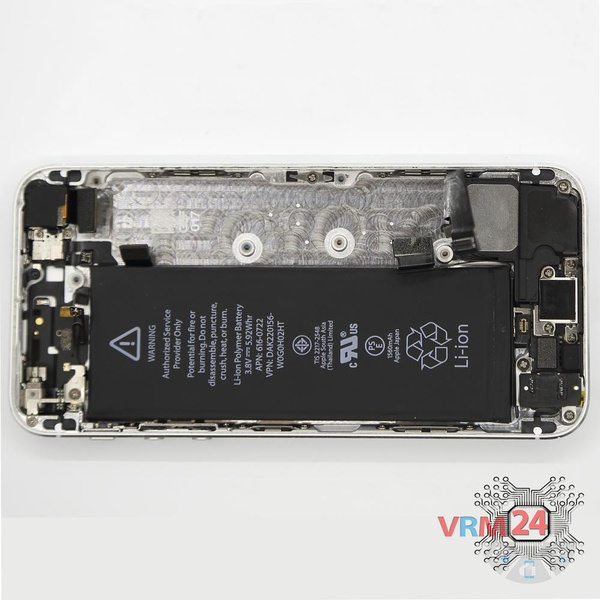

Parts in the housing / back cover / case.

Detailed disassembly instructions of Apple iPhone 5S in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Apple #Apple iPhone 5S
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 4 minutes in time.
Our manual is suitable for all models Apple iPhone 5S — iPhone 5S A1457, A1533, A1453 released for markets in different countries.
