Disassembly of the mobile device Apple iPhone 7 (Apple iPhone 7 A1660, A1778, A1779) with each step description and the required set of tools.

Load more
Teardown difficulty:
Moderate
Duration:
19 min

Specialist in content creation, distribution and content management.

Recommended tools

How to disassemble Apple iPhone 7, Step 1/1

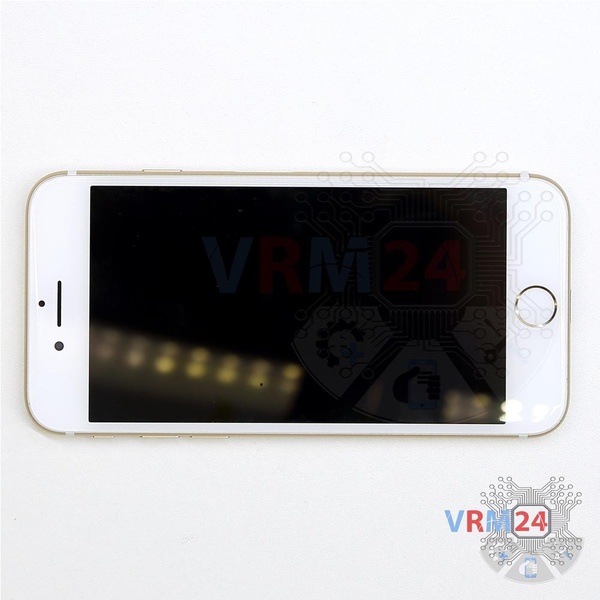

Step 1. Before disassembling!

⚠️ Before disassembling, do not forget to turn your phone off.


How to disassemble Apple iPhone 7, Step 2/1 How to disassemble Apple iPhone 7, Step 2/2

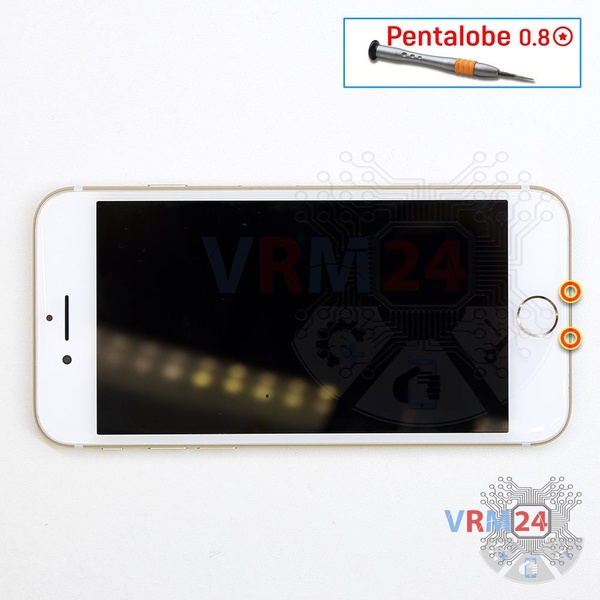

Step 2. Unscrew the screws

Using a screwdriver (precision star-shaped 0.8 mm aka Pentalobe), unscrew/drive two screws out at the end of the phone.


How to disassemble Apple iPhone 7, Step 3/1 How to disassemble Apple iPhone 7, Step 3/2

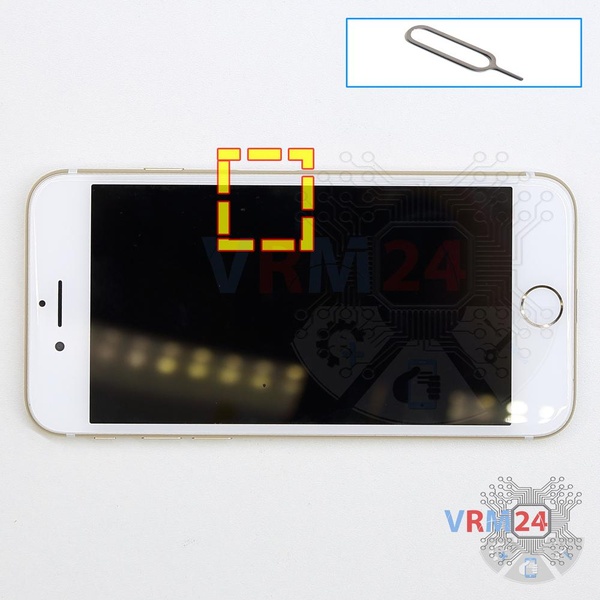

Step 3. Remove the tray

Use the Key tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the SIM card tray out.

⚠️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.


How to disassemble Apple iPhone 7, Step 4/1 How to disassemble Apple iPhone 7, Step 4/2

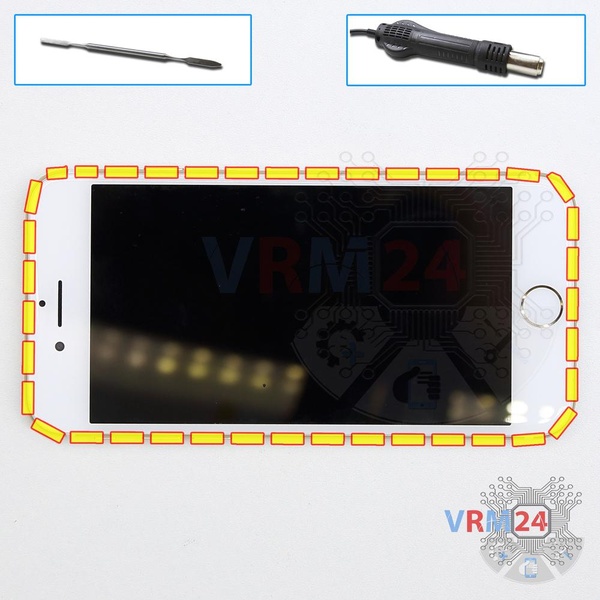

Step 4. Open the display module

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹ️️ The surface of the display module must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Do not use a lever or any force for separation that could damage the elements inside.

The process can be seen in our video entirely so as well as in detail, at the end of the instructions.


How to disassemble Apple iPhone 7, Step 5/1 How to disassemble Apple iPhone 7, Step 5/2

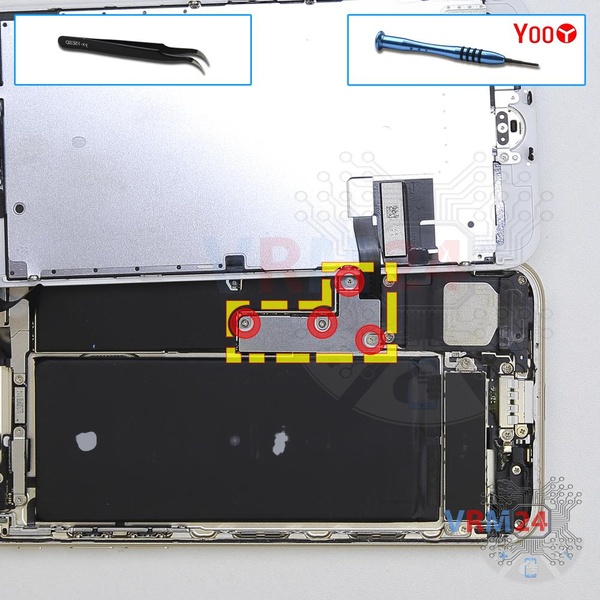

Step 5. Unscrew the screws

Using a screwdriver (Tri-point Y00), unscrew the 4 screws and remove the bracket holding the connectors.


How to disassemble Apple iPhone 7, Step 6/1 How to disassemble Apple iPhone 7, Step 6/2

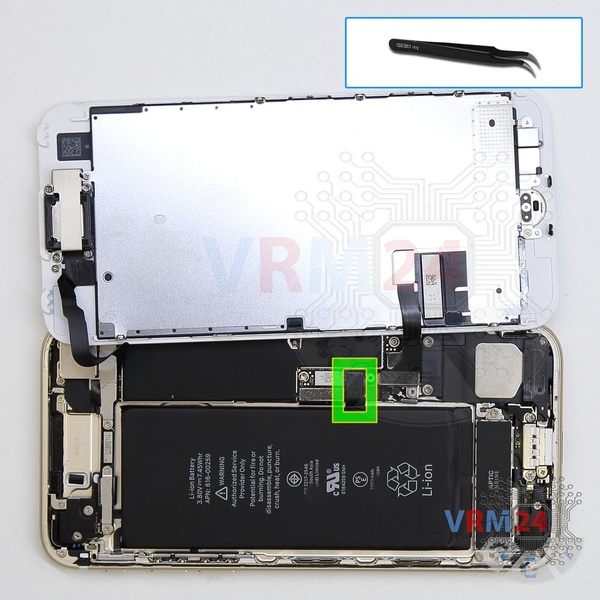

Step 6. Disconnect the battery connector

Disconnect the battery connector as soon as possible.

ℹ️️ The Apple iPhone 7 model has a battery 616-00259 with 1960 mAh capacity (aka rechargeable battery).

⚠️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.


How to disassemble Apple iPhone 7, Step 7/1 How to disassemble Apple iPhone 7, Step 7/2

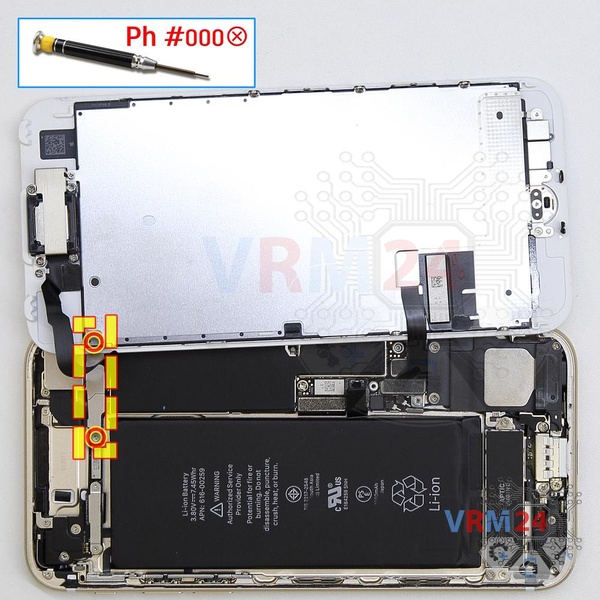

Step 7. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the two screws and remove the bracket holding the connectors.


How to disassemble Apple iPhone 7, Step 8/1 How to disassemble Apple iPhone 7, Step 8/2

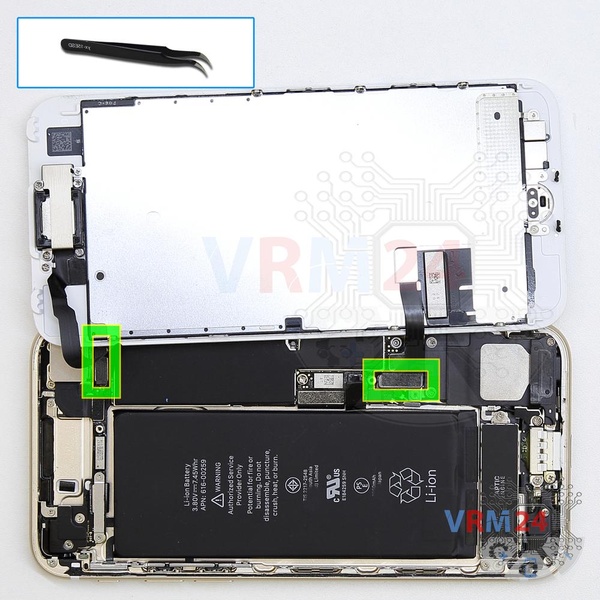

Step 8. Disconnect the connectors

Pry up the connectors and remove the display module.


How to disassemble Apple iPhone 7, Step 9/1 How to disassemble Apple iPhone 7, Step 9/2

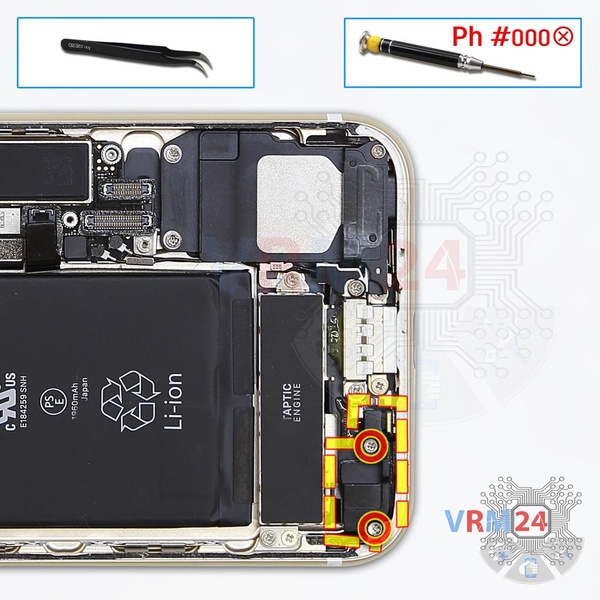

Step 9. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the two screws and remove the cover.


How to disassemble Apple iPhone 7, Step 10/1 How to disassemble Apple iPhone 7, Step 10/2

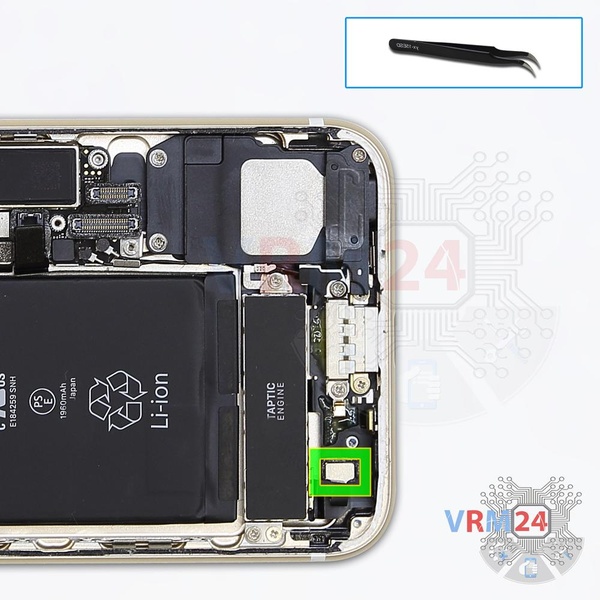

Step 10. Disconnect the connector

Pry up the vibration motor connector.


How to disassemble Apple iPhone 7, Step 11/1 How to disassemble Apple iPhone 7, Step 11/2

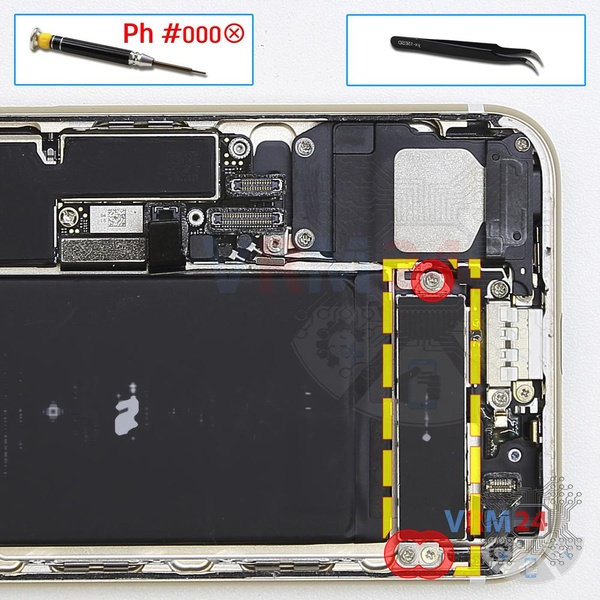

Step 11. Remove the vibration motor

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the 3 screws and remove the TapTic engine, aka vibration motor.


How to disassemble Apple iPhone 7, Step 12/1 How to disassemble Apple iPhone 7, Step 12/2

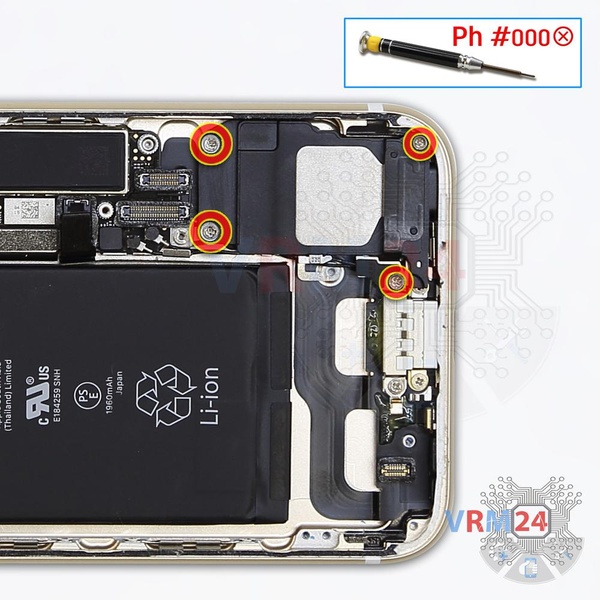

Step 12. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 screws.


How to disassemble Apple iPhone 7, Step 13/1 How to disassemble Apple iPhone 7, Step 13/2

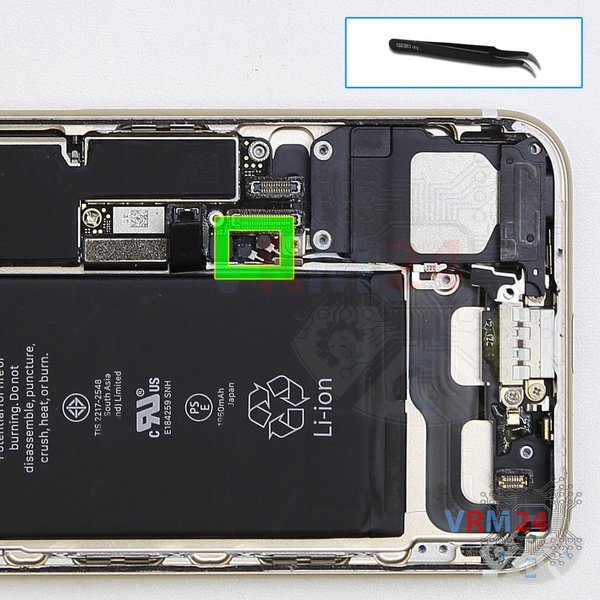

Step 13. Disconnect the connectors

Pry up the two coaxial cable connectors.


How to disassemble Apple iPhone 7, Step 14/1 How to disassemble Apple iPhone 7, Step 14/2 How to disassemble Apple iPhone 7, Step 14/3

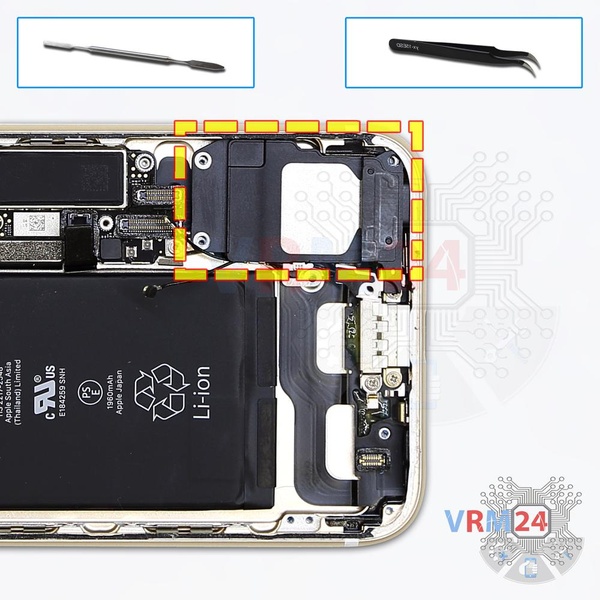

Step 14. Remove the loudspeaker

Remove the loudspeaker assembly with one coaxial cable.


How to disassemble Apple iPhone 7, Step 15/1 How to disassemble Apple iPhone 7, Step 15/2

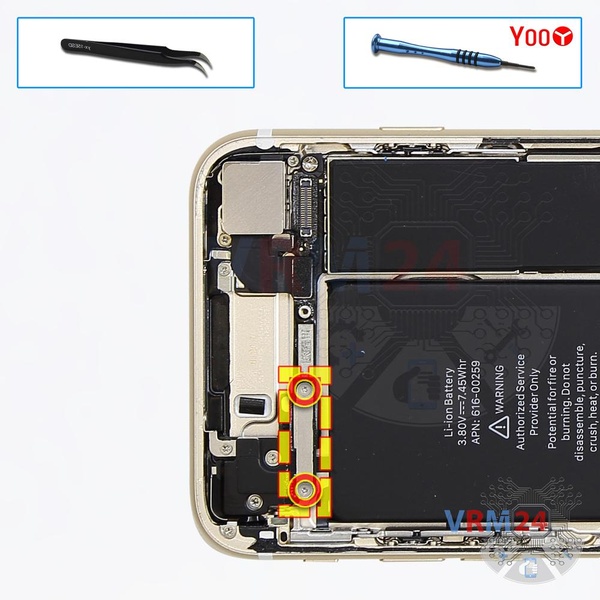

Step 15. Unscrew the screws

Using a screwdriver (Tri-point Y00), unscrew the two screws and remove the bracket holding the connector.


How to disassemble Apple iPhone 7, Step 16/1 How to disassemble Apple iPhone 7, Step 16/2

Step 16. Remove the antenna

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 screws and remove the antenna.


How to disassemble Apple iPhone 7, Step 17/1 How to disassemble Apple iPhone 7, Step 17/2

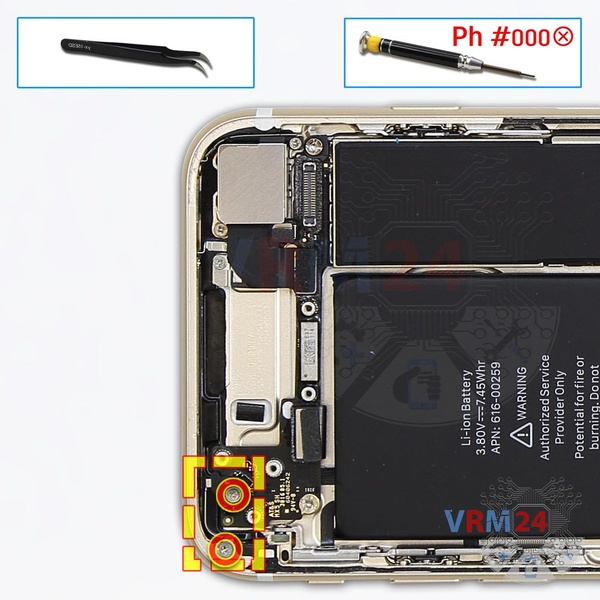

Step 17. Remove the antenna

Using a screwdriver (Phillips 1.5 mm PH000), unscrew two screws and remove the antenna.


How to disassemble Apple iPhone 7, Step 18/1 How to disassemble Apple iPhone 7, Step 18/2

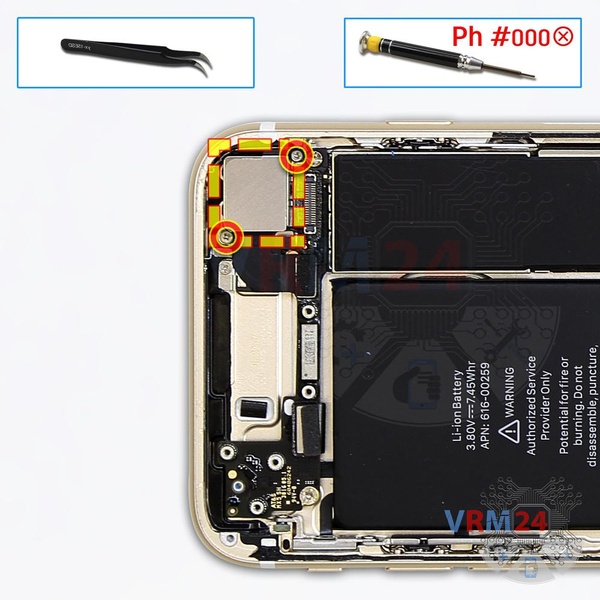

Step 18. Open the cover

Using a screwdriver (Phillips 1.5 mm PH000), unscrew two screws and remove the camera bracket.


How to disassemble Apple iPhone 7, Step 19/1 How to disassemble Apple iPhone 7, Step 19/2

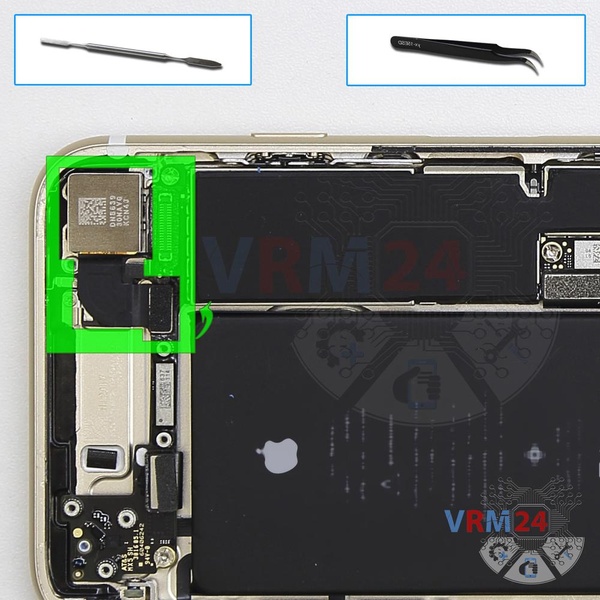

Step 19. Remove the rear camera

Pry up the connector and remove the rear camera.


How to disassemble Apple iPhone 7, Step 20/1 How to disassemble Apple iPhone 7, Step 20/2

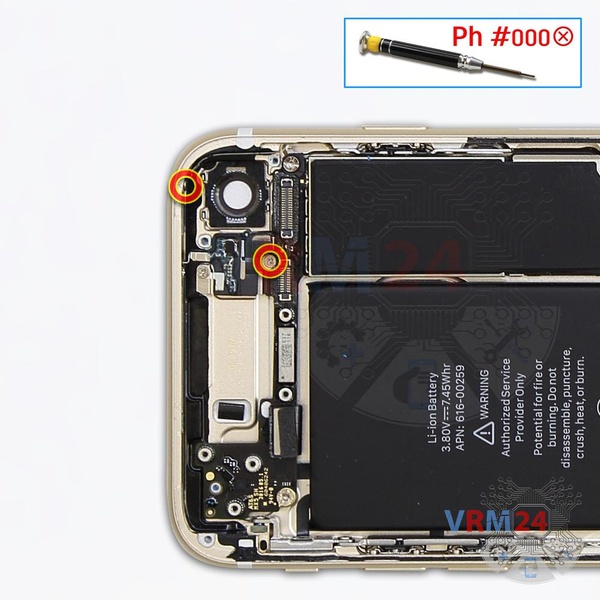

Step 20. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew two screws.


How to disassemble Apple iPhone 7, Step 21/1 How to disassemble Apple iPhone 7, Step 21/2

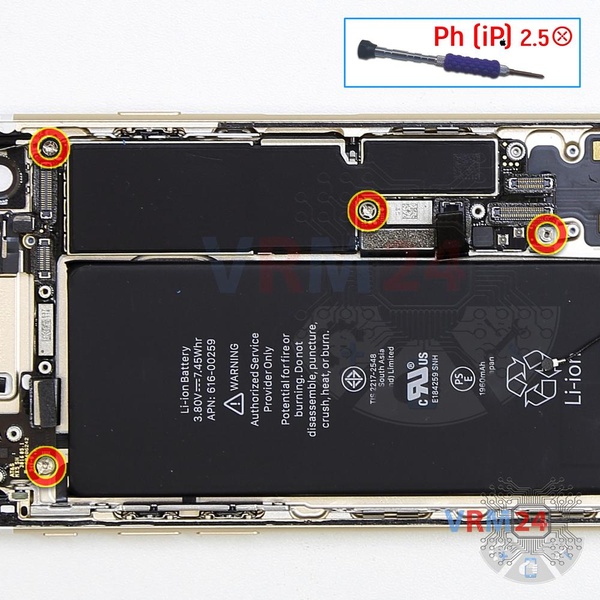

Step 21. Unscrew the screws

Using a screwdriver (Phillips iPhone 2.5 mm), unscrew four screws.


How to disassemble Apple iPhone 7, Step 22/1 How to disassemble Apple iPhone 7, Step 22/2

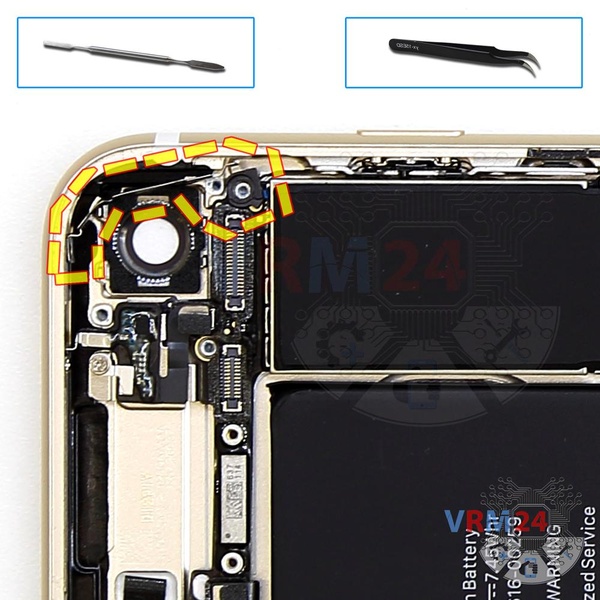

Step 22. Remove the antenna

Carefully remove the antenna.


How to disassemble Apple iPhone 7, Step 23/1 How to disassemble Apple iPhone 7, Step 23/2

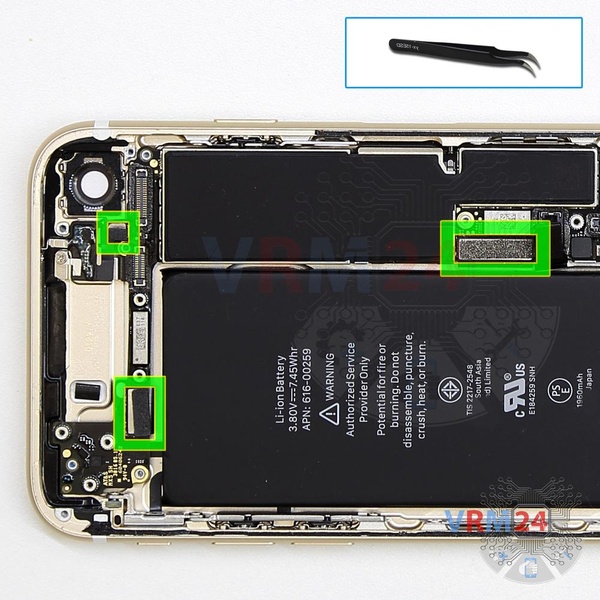

Step 23. Disconnect the connectors

Disconnect the connectors for the volume and power buttons, the lightning port and the microphone, and the GPS antenna unit.

⚠️ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).


How to disassemble Apple iPhone 7, Step 24/1 How to disassemble Apple iPhone 7, Step 24/2

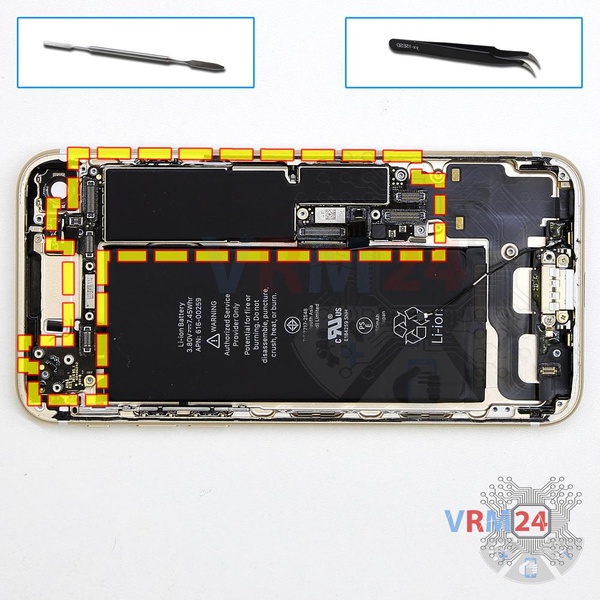

Step 24. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Apple iPhone 7, Step 25/1 How to disassemble Apple iPhone 7, Step 25/2 How to disassemble Apple iPhone 7, Step 25/3

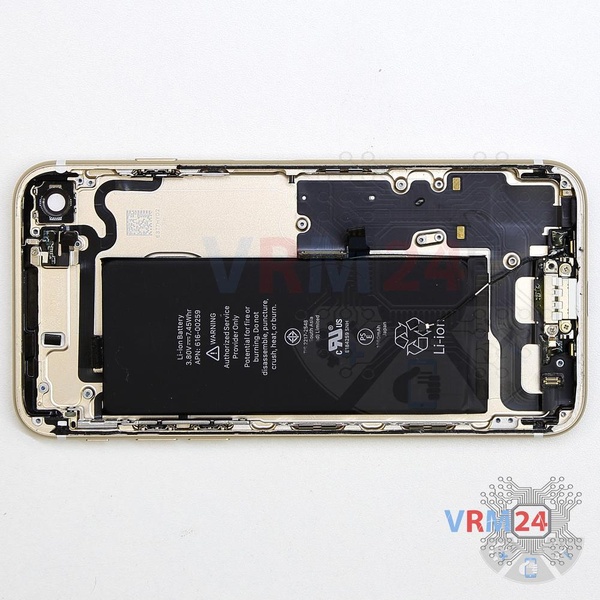

Step 25. In the housing remained

ℹ️️ In the housing remained: cables, battery, microphones, lightning port.

Detailed disassembly instructions of Apple iPhone 7 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Load more

Disassembling\Repair has hard complexity and takes about 19 minutes in time. Our manual is suitable for all models Apple iPhone 7 — Apple iPhone 7 A1660, A1778, A1779 released for markets in different countries.
