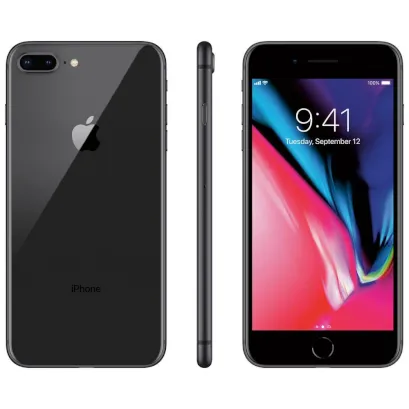

Disassembly/Repair of the mobile device Apple iPhone 8 Plus (iPhone 8 Plus A1864, A1897, A1898) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Apple iPhone 8 Plus, Step 1/1 How to disassemble Apple iPhone 8 Plus, Step 1/2

Step 1.

Using the key tool, open the SIM card slot and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.


How to disassemble Apple iPhone 8 Plus, Step 2/1 How to disassemble Apple iPhone 8 Plus, Step 2/2

Step 2.

Using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew the 2 bolts on the end of the phone.


How to disassemble Apple iPhone 8 Plus, Step 3/1 How to disassemble Apple iPhone 8 Plus, Step 3/2

Step 3.

Lift the display.


How to disassemble Apple iPhone 8 Plus, Step 4/1 How to disassemble Apple iPhone 8 Plus, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts and remove the bracket holds the connectors.


How to disassemble Apple iPhone 8 Plus, Step 5/1 How to disassemble Apple iPhone 8 Plus, Step 5/2

Step 5.

Using a screwdriver (Tri-Wing Precision Screwdriver 0.6mm), unscrew 2 bolts and remove the bracket holds the connectors.


How to disassemble Apple iPhone 8 Plus, Step 6/1 How to disassemble Apple iPhone 8 Plus, Step 6/2 How to disassemble Apple iPhone 8 Plus, Step 6/3

Step 6.

Disconnect connectors and remove the display.


How to disassemble Apple iPhone 8 Plus, Step 7/1 How to disassemble Apple iPhone 8 Plus, Step 7/2

Step 7.

Using a screwdriver (Tri-Wing Precision Screwdriver 0.6mm), unscrew 2 bolts and remove the bracket holds the connectors.


How to disassemble Apple iPhone 8 Plus, Step 8/1 How to disassemble Apple iPhone 8 Plus, Step 8/2 How to disassemble Apple iPhone 8 Plus, Step 8/3

Step 8.

Disconnect connector on the PCB.


How to disassemble Apple iPhone 8 Plus, Step 9/1 How to disassemble Apple iPhone 8 Plus, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the bracket holds the battery connector.


How to disassemble Apple iPhone 8 Plus, Step 10/1 How to disassemble Apple iPhone 8 Plus, Step 10/2 How to disassemble Apple iPhone 8 Plus, Step 10/3

Step 10.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.


How to disassemble Apple iPhone 8 Plus, Step 11/1 How to disassemble Apple iPhone 8 Plus, Step 11/2

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolt and remove the bracket holds cameras.


How to disassemble Apple iPhone 8 Plus, Step 12/1 How to disassemble Apple iPhone 8 Plus, Step 12/2

Step 12.

Disconnect connectors on the PCB and remove the cameras.


How to disassemble Apple iPhone 8 Plus, Step 13/1 How to disassemble Apple iPhone 8 Plus, Step 13/2 How to disassemble Apple iPhone 8 Plus, Step 13/3

Step 13.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the Wi Fi antenna.


How to disassemble Apple iPhone 8 Plus, Step 14/1 How to disassemble Apple iPhone 8 Plus, Step 14/2

Step 14.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts and remove the part Wi Fi antenna.


How to disassemble Apple iPhone 8 Plus, Step 15/1 How to disassemble Apple iPhone 8 Plus, Step 15/2

Step 15.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the antenna part.


How to disassemble Apple iPhone 8 Plus, Step 16/1 How to disassemble Apple iPhone 8 Plus, Step 16/2

Step 16.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts in the PCB.


How to disassemble Apple iPhone 8 Plus, Step 17/1 How to disassemble Apple iPhone 8 Plus, Step 17/2

Step 17.

Remove the PCB.


How to disassemble Apple iPhone 8 Plus, Step 18/1 How to disassemble Apple iPhone 8 Plus, Step 18/2 How to disassemble Apple iPhone 8 Plus, Step 18/3

Step 18.

Parts in the back cover (housing).

Detailed disassembly instructions of Apple iPhone 8 Plus in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has hard complexity and takes about 17 minutes in time.
Our manual is suitable for all models Apple iPhone 8 Plus — iPhone 8 Plus A1864, A1897, A1898 released for markets in different countries.
