Recommended tools
Heat gun
Screwdriver Five-point P0.8 mm
Screwdriver Tri-point Y00
Screwdriver Phillips #000
Opening tool / Spudger
Tweezers
Disassembly/Repair of the mobile device Apple iPhone X (iPhone X A1901, A1865, A1902) with each step description and the required set of tools.
25990
Views
35
Likes
—
Share
5
Questions
Step 1.
Remove the tray
Using the key tool, open the SIM card slot and remove it.
âš Warning!
Do not push too hard this may cause damage.
Step 2.
Unscrew the screws
Using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew the 2 bolts on the end of the phone.
Step 3.
Open the display
Lift the display.
Step 4.
Remove the bracket
Using a screwdriver (Tri-Wing Precision Screwdriver 0.6mm), unscrew 5 bolts and remove the bracket holds the connectors.
Step 5.
Open the display module
Disconnect connectors and remove the display.
Step 6.
Disconnect the connectors
Disconnect connectors on the PCB.
Step 7.
Unscrew the screws
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.
Step 8.
Remove the motherboard
Remove the PCB.
Step 9.
Unscrew the screws
Using a screwdriver (Phillips 1.5 mm PH000) & a screwdriver (Tri-Wing Precision Screwdriver 0.6mm) unscrew 9 bolts in the lower part.
Step 10.
Remove the loudspeaker
Pry and remove the lower part with buzzer (speaker).
Step 11.

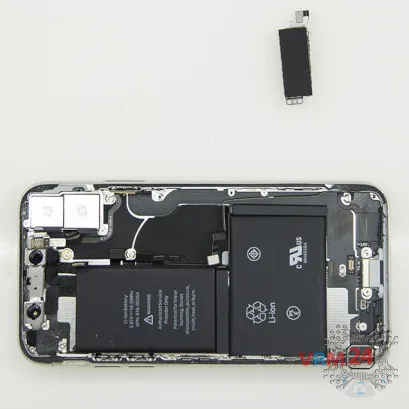

Remove the vibration motor
Remove the vibrator.
Step 12.
Remove the battery
Lift and remove the battery.
If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.
