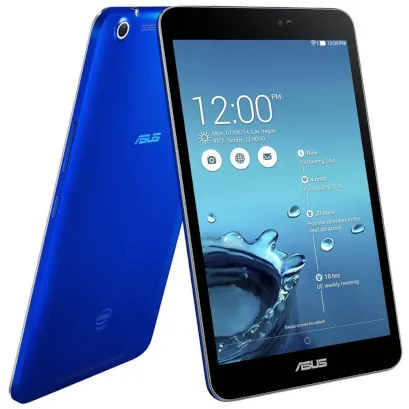

Asus MeMO Pad 8 ME581CL
Asus MeMO Pad 8 ME581CL
Teardown difficulty:
Moderate
Duration:
12 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Asus MeMO Pad 8 ME581CL with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Asus MeMO Pad 8 ME581CL, Step 1/1

Step 1.

Open the back cover.

How to disassemble Asus MeMO Pad 8 ME581CL, Step 2/1 How to disassemble Asus MeMO Pad 8 ME581CL, Step 2/2 How to disassemble Asus MeMO Pad 8 ME581CL, Step 2/3

Step 2.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Asus MeMO Pad 8 ME581CL, Step 3/1 How to disassemble Asus MeMO Pad 8 ME581CL, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the battery.

How to disassemble Asus MeMO Pad 8 ME581CL, Step 4/1 How to disassemble Asus MeMO Pad 8 ME581CL, Step 4/2 How to disassemble Asus MeMO Pad 8 ME581CL, Step 4/3

Step 4.

Disconnect connectors and remove inter-board cable.

How to disassemble Asus MeMO Pad 8 ME581CL, Step 5/1 How to disassemble Asus MeMO Pad 8 ME581CL, Step 5/2 How to disassemble Asus MeMO Pad 8 ME581CL, Step 5/3

Step 5.

Disconnect connector of inter-board cable and remove the battery.

How to disassemble Asus MeMO Pad 8 ME581CL, Step 6/1 How to disassemble Asus MeMO Pad 8 ME581CL, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts in the lower PCB.

How to disassemble Asus MeMO Pad 8 ME581CL, Step 7/1 How to disassemble Asus MeMO Pad 8 ME581CL, Step 7/2 How to disassemble Asus MeMO Pad 8 ME581CL, Step 7/3

Step 7.

Disconnect connector on the PCB & remove the buzzer (speaker) assembly.

How to disassemble Asus MeMO Pad 8 ME581CL, Step 8/1 How to disassemble Asus MeMO Pad 8 ME581CL, Step 8/2 How to disassemble Asus MeMO Pad 8 ME581CL, Step 8/3

Step 8.

Disconnect connectors on the lower PCB.

How to disassemble Asus MeMO Pad 8 ME581CL, Step 9/1 How to disassemble Asus MeMO Pad 8 ME581CL, Step 9/2 How to disassemble Asus MeMO Pad 8 ME581CL, Step 9/3

Step 9.

Overturn the board, disconnect the connector of the coaxial cable with the inner side and the removable card.

How to disassemble Asus MeMO Pad 8 ME581CL, Step 10/1 How to disassemble Asus MeMO Pad 8 ME581CL, Step 10/2

Step 10.

Disconnect connectors and remove inter-board cable.

How to disassemble Asus MeMO Pad 8 ME581CL, Step 11/1 How to disassemble Asus MeMO Pad 8 ME581CL, Step 11/2

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Asus MeMO Pad 8 ME581CL, Step 12/1 How to disassemble Asus MeMO Pad 8 ME581CL, Step 12/2 How to disassemble Asus MeMO Pad 8 ME581CL, Step 12/3

Step 12.

Disconnect connectors on the PCB and remove it.

How to disassemble Asus MeMO Pad 8 ME581CL, Step 13/1 How to disassemble Asus MeMO Pad 8 ME581CL, Step 13/2 How to disassemble Asus MeMO Pad 8 ME581CL, Step 13/3

Step 13.

Parts in the frame of the display module.

Detailed disassembly instructions of Asus MeMO Pad 8 ME581CL in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Asus #Asus MeMO Pad 8 ME581CL
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 12 minutes in time.
Our manual is suitable for all models Asus MeMO Pad 8 ME581CL released for markets in different countries.
