Asus PadFone 2 A68
Asus PadFone 2 A68
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Asus PadFone 2 A68 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Asus PadFone 2 A68, Step 1/1

Step 1.

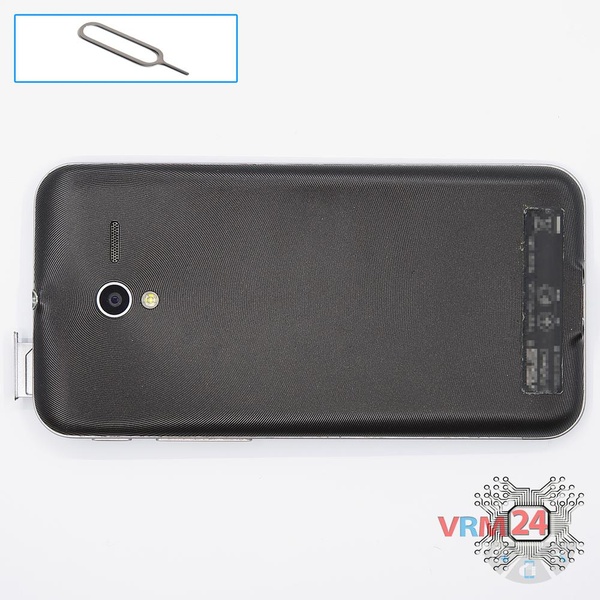

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Asus PadFone 2 A68, Step 2/1 How to disassemble Asus PadFone 2 A68, Step 2/2

Step 2.

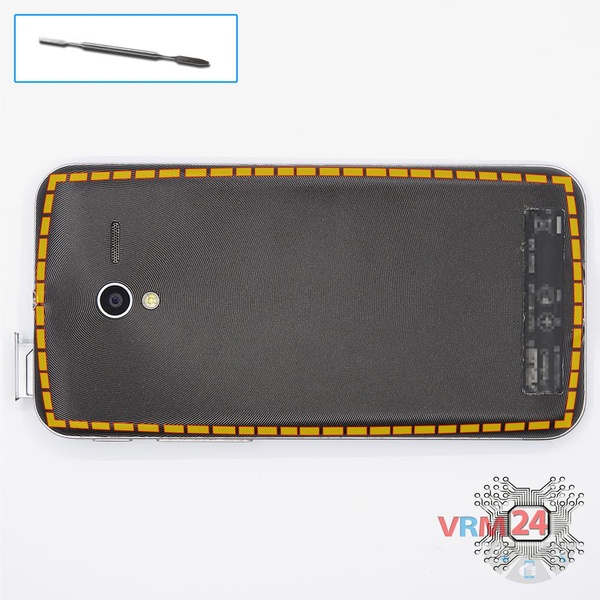

Open the back cover.

How to disassemble Asus PadFone 2 A68, Step 3/1 How to disassemble Asus PadFone 2 A68, Step 3/2

Step 3.

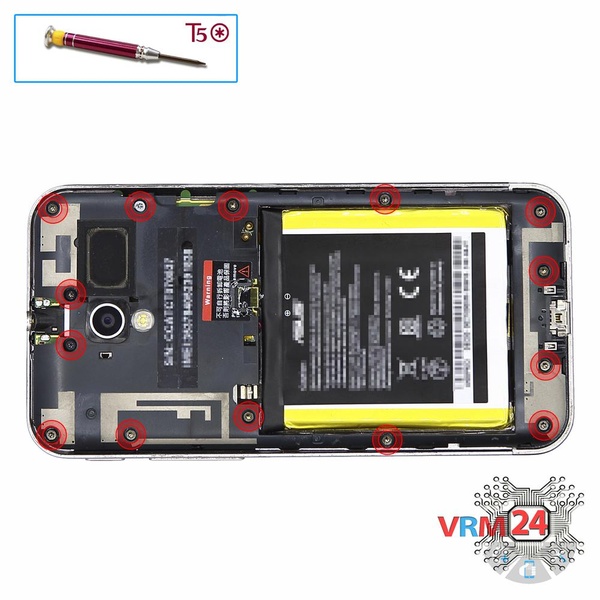

Using a screwdriver (hex T5), unscrew 14 bolts in the frame of the phone.

How to disassemble Asus PadFone 2 A68, Step 4/1 How to disassemble Asus PadFone 2 A68, Step 4/2

Step 4.

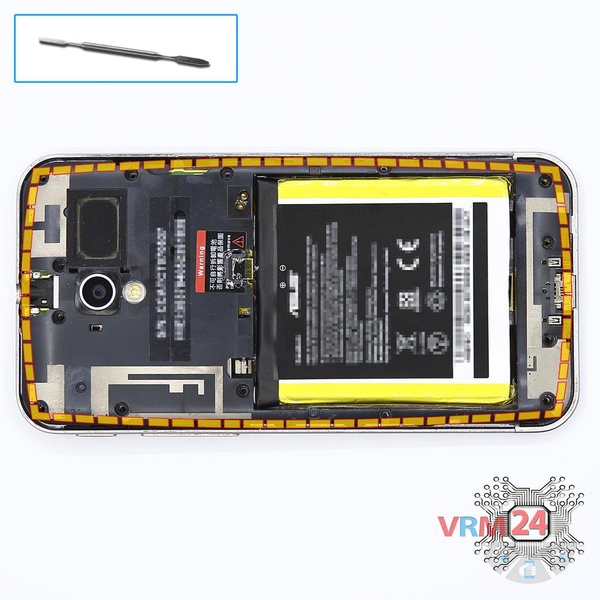

Pry and remove the middle frame.

How to disassemble Asus PadFone 2 A68, Step 5/1 How to disassemble Asus PadFone 2 A68, Step 5/2 How to disassemble Asus PadFone 2 A68, Step 5/3 How to disassemble Asus PadFone 2 A68, Step 5/4

Step 5.

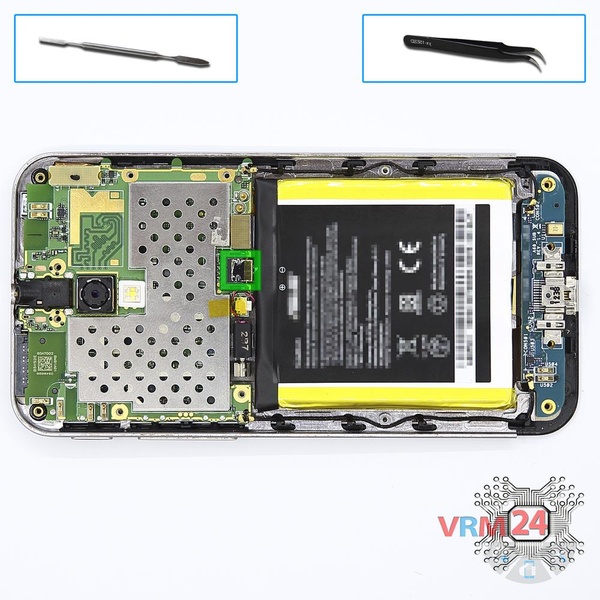

Disconnect connector on the PCB and remove the battery.

How to disassemble Asus PadFone 2 A68, Step 6/1 How to disassemble Asus PadFone 2 A68, Step 6/2 How to disassemble Asus PadFone 2 A68, Step 6/3 How to disassemble Asus PadFone 2 A68, Step 6/4 How to disassemble Asus PadFone 2 A68, Step 6/5

Step 6.

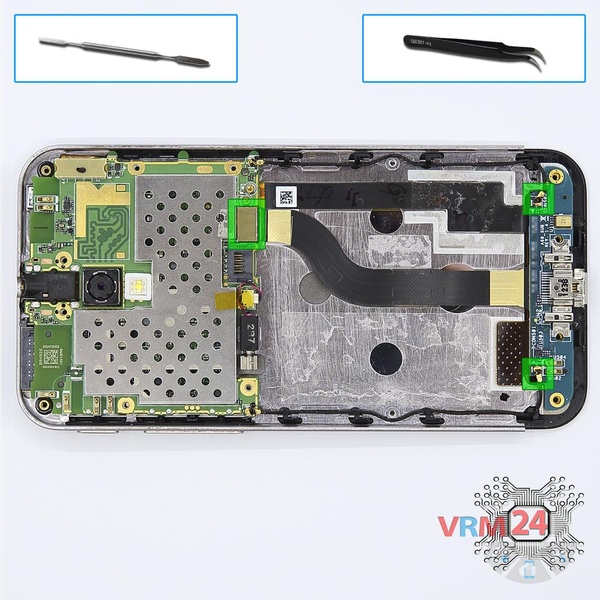

Disconnect the inter-board connector on the main PCB and coaxial cable connectors on the lower board and remove the lower board.

How to disassemble Asus PadFone 2 A68, Step 7/1 How to disassemble Asus PadFone 2 A68, Step 7/2 How to disassemble Asus PadFone 2 A68, Step 7/3 How to disassemble Asus PadFone 2 A68, Step 7/4

Step 7.

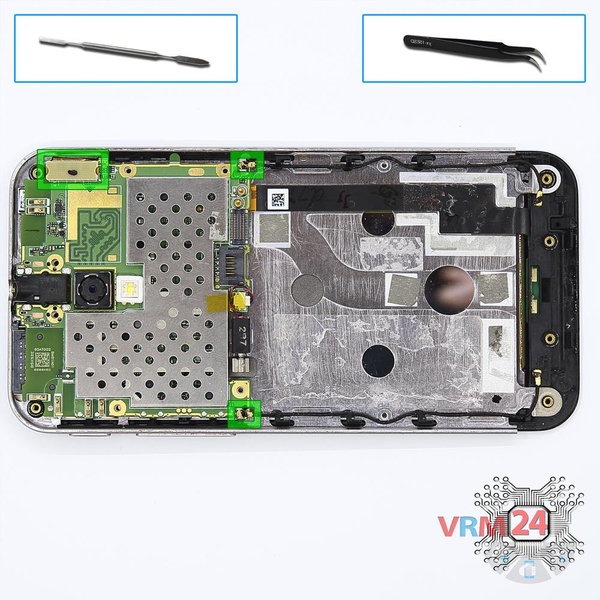

Disconnect connectors on the PCB.

How to disassemble Asus PadFone 2 A68, Step 8/1 How to disassemble Asus PadFone 2 A68, Step 8/2 How to disassemble Asus PadFone 2 A68, Step 8/3

Step 8.

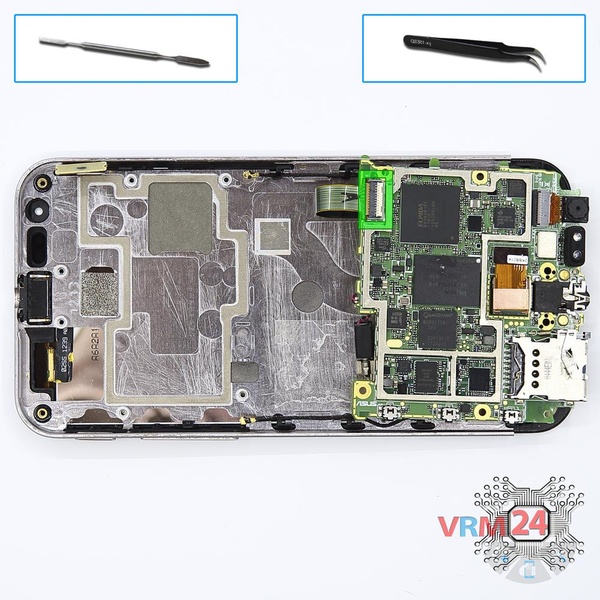

Overturn the main board, disconnect the connector and remove it.

How to disassemble Asus PadFone 2 A68, Step 9/1 How to disassemble Asus PadFone 2 A68, Step 9/2 How to disassemble Asus PadFone 2 A68, Step 9/3

Step 9.

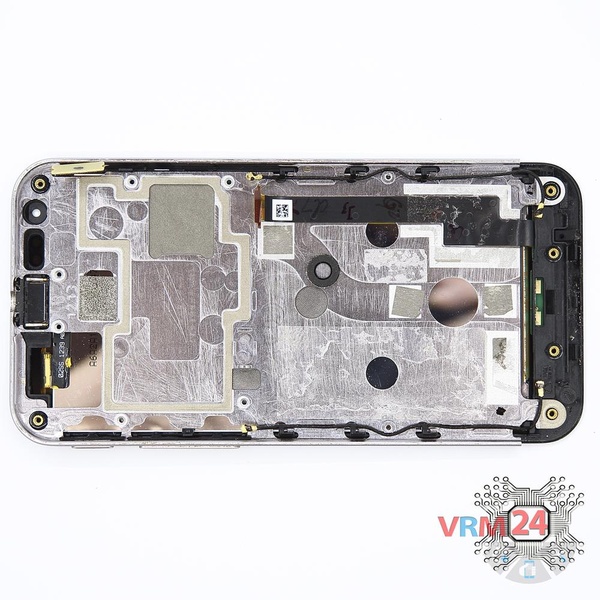

Parts in the frame of the display module.

Detailed disassembly instructions of Asus PadFone 2 A68 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Asus #Asus PadFone 2 A68
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Asus PadFone 2 A68 released for markets in different countries.
