Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

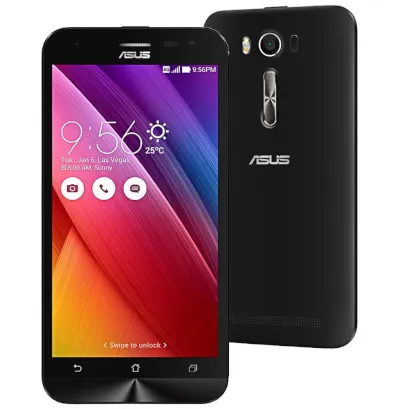

Disassembly/Repair of the mobile device Asus ZenFone 2 Laser ZE500KL with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 1/1 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 1/2

Step 1. Open the back cover

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.

⚠️ Be careful when opening the cover from the volume and power buttons side. Thin cable and fragile buttons are straightforward to damage.


How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 2/1 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 2/2

Step 2. Remove the battery

Remove the battery.

ℹ️️ The Asus ZenFone 2 Laser ZE500KL model has a battery C11P1428 with 2400 mAh capacity (aka rechargeable battery).


How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 3/1 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 3/2

Step 3. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 15 screws in the phone frame.


How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 4/1 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 4/2

Step 4. Open the middle cover

Remove the cover with antennas. The cover protects the printed circuit boards (PCBs). Try to lift the cover by the edges and not push anything between them to not accidentally touch or short-circuit anything on the PCBs.


How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 5/1 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 5/2

Step 5. Remove the loudspeaker

Remove the loudspeaker assembly with antennas.


How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 6/1 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 6/2

Step 6. Remove the rear camera

Disconnect the connector on the motherboard and remove the main camera.


How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 7/1 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 7/2 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 7/3 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 7/4 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 7/5

Step 7. Disconnect the connectors

Pry up the connectors of the display and touchscreen cables. Also, pry up the vibration motor.


How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 8/1 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 8/2

Step 8. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 9/1 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 9/2 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 9/3

Step 9. Disconnect the connector

Pry up the connector connecting two boards.


How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 10/1 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 10/2

Step 10. Remove the buttons

Remove the power button.


How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 11/1 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 11/2

Step 11. Remove the earpiece speaker

Pry and remove the earpiece speaker.


How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 12/1 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 12/2 How to disassemble Asus ZenFone 2 Laser ZE500KL, Step 12/3

Step 12. In the display frame remained

ℹ️️ In the display frame remained:

Detailed disassembly instructions of Asus ZenFone 2 Laser ZE500KL in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 8 minutes in time. Our manual is suitable for all models Asus ZenFone 2 Laser ZE500KL released for markets in different countries.
