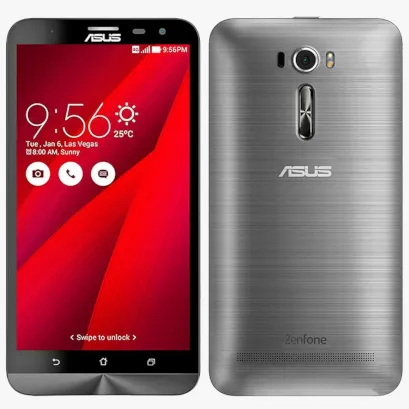

Asus ZenFone 2 Laser ZE601KL
Asus ZenFone 2 Laser ZE601KL
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Asus ZenFone 2 Laser ZE601KL with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 1/1 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 1/2

Step 1.

Open the back cover.

How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 2/1 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 3/1 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 17 bolts in the frame of the phone.

How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 4/1 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 5/1 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the buzzer (speaker) assembly and remove the coaxial cable.

How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 6/1 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 6/2

Step 6.

Pry and remove the buzzers (speakers) assembly.

How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 7/1 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 7/2

Step 7.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 8/1 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 8/2 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 8/3

Step 8.

Disconnect connectors on the PCB.

How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 9/1 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 10/1 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 10/2

Step 10.

Remove the PCB.

How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 11/1 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 11/2

Step 11.

Disconnect the connectors on the main PCB, remove the coaxial cable and separate the boards.

How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 12/1 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 12/2

Step 12.

Remove the power button.

How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 13/1 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 13/2

Step 13.

Pry and remove the earpiece (speaker).

How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 14/1 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 14/2 How to disassemble Asus ZenFone 2 Laser ZE601KL, Step 14/3

Step 14.

Parts in the frame of the display module.

Detailed disassembly instructions of Asus ZenFone 2 Laser ZE601KL in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Asus #Asus ZenFone 2 Laser ZE601KL
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Asus ZenFone 2 Laser ZE601KL released for markets in different countries.
