Teardown difficulty:
Moderate
Duration:
22 min

Recommended tools

Disassembly of the mobile device Asus ZenFone 7 Pro ZS671KS with each step description and the required set of tools.

Load more

Specialist in content creation, distribution and content management.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 1/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 1/2

Step 1. Before disassembling!

⚠️ Before disassembling, do not forget to turn your phone off.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 2/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 2/2 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 2/3 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 2/4

Step 2. Remove the tray

Use the Key tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 3/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 3/2 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 3/3 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 3/4 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 3/5

Step 3. Open the back cover

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹ️️ The surface of the back cover must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 4/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 4/2

Step 4. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 screws.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 5/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 5/2 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 5/3

Step 5. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew two long screws.

ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its part. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 6/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 6/2 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 6/3

Step 6. Open the cover

Remove the cover with antennas and an NFC tag that protect the printed circuit board (PCB). Try to lift the covers by the edges and not push anything between them to not accidentally touch or short-circuit anything on the PCB.

ℹ️️ On the upper cover, you can see the metalized coating on the plastic in the form of tracks and contact pads. These are Wi-Fi, Bluetooth, and GPS antennas.

⚠️ It is crucial while reassembling, checking the spring contacts on the board, and the contact pads on the cover match and touch. Otherwise, signal loss or signal may be quite weak.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 7/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 7/2 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 7/3

Step 7. Disconnect the battery connector

Disconnect the battery connector as soon as possible.

ℹ️️ The Asus ZenFone 7 Pro ZS671KS model has a battery C11P1904 with 5000 mAh capacity (aka rechargeable battery).

⚠️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 8/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 8/2 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 8/3

Step 8. Open the cover

Open the cover securing the connectors.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 9/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 9/2

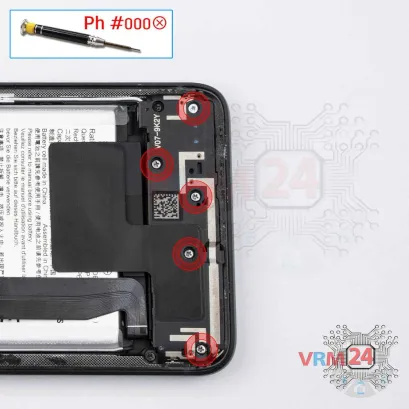

Step 9. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 screws.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 10/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 10/2 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 10/3

Step 10. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew two short screws.

ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its part. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 11/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 11/2 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 11/3

Step 11. Remove the loudspeaker

Remove the loudspeaker assembly with antennas.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 12/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 12/2

Step 12. Disconnect the connectors

Disconnect the coaxial cables connectors, cable to the mainboard, on the daughterboard.

⚠️ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 13/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 13/2 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 13/3

Step 13. Remove the daughterboard

Remove the sub-board. It is glued to the frame with metalized tape, so to facilitate the process, the board can be heated a bit.

ℹ️️ The board contains a charging port (Micro USB), microphone, spring contacts for the speaker, vibration motor, and an antenna unit.

⚠️ It is not necessary to insert the tool under the board when removing the sub-board. Internal components could be damaged.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 14/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 14/2 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 14/3 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 14/4

Step 14. Disconnect the connectors

Pry up the connectors of the display module cable, inter-board cables, flip cameras, and coaxial cables.

⚠️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 15/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 15/2 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 15/3 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 15/4

Step 15. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 screws.

ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its part.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 16/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 16/2 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 16/3 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 16/4

Step 16. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 17/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 17/2 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 17/3 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 17/4

Step 17. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew two screws securing the flip camera.


How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 18/1 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 18/2 How to disassemble Asus ZenFone 7 Pro ZS671KS, Step 18/3

Step 18. Remove the cameras

Remove the flip camera.

Detailed disassembly instructions of Asus ZenFone 7 Pro ZS671KS in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Load more

Disassembling\Repair has medium complexity and takes about 22 minutes in time. Our manual is suitable for all models Asus ZenFone 7 Pro ZS671KS released for markets in different countries.
