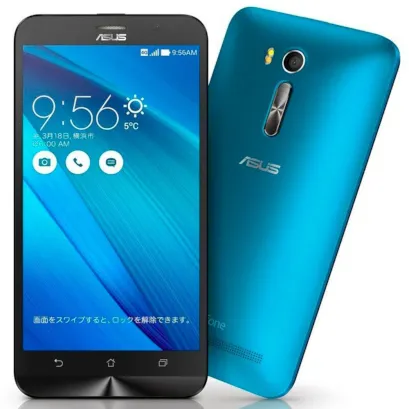

Asus ZenFone Go ZB551KL
Asus ZenFone Go ZB551KL
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Asus ZenFone Go ZB551KL with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Asus ZenFone Go ZB551KL, Step 1/1 How to disassemble Asus ZenFone Go ZB551KL, Step 1/2

Step 1.

Open the back cover.

How to disassemble Asus ZenFone Go ZB551KL, Step 2/1 How to disassemble Asus ZenFone Go ZB551KL, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Asus ZenFone Go ZB551KL, Step 3/1 How to disassemble Asus ZenFone Go ZB551KL, Step 3/2

Step 3.

Using a screwdriver (hex T5), unscrew 8 bolts in the frame of the phone.

How to disassemble Asus ZenFone Go ZB551KL, Step 4/1 How to disassemble Asus ZenFone Go ZB551KL, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Asus ZenFone Go ZB551KL, Step 5/1

Step 5.

The middle frame.

How to disassemble Asus ZenFone Go ZB551KL, Step 6/1 How to disassemble Asus ZenFone Go ZB551KL, Step 6/2

Step 6.

Pry off the board with SIM and Memory card connectors/holders.

⚠️ Warning!

The connector locates on the inside.

How to disassemble Asus ZenFone Go ZB551KL, Step 7/1 How to disassemble Asus ZenFone Go ZB551KL, Step 7/2

Step 7.

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble Asus ZenFone Go ZB551KL, Step 8/1 How to disassemble Asus ZenFone Go ZB551KL, Step 8/2 How to disassemble Asus ZenFone Go ZB551KL, Step 8/3

Step 8.

Disconnect connectors on the PCB.

How to disassemble Asus ZenFone Go ZB551KL, Step 9/1 How to disassemble Asus ZenFone Go ZB551KL, Step 9/2

Step 9.

Remove the PCB.

How to disassemble Asus ZenFone Go ZB551KL, Step 10/1 How to disassemble Asus ZenFone Go ZB551KL, Step 10/2

Step 10.

Pry and remove the earpiece speaker.

How to disassemble Asus ZenFone Go ZB551KL, Step 11/1 How to disassemble Asus ZenFone Go ZB551KL, Step 11/2 How to disassemble Asus ZenFone Go ZB551KL, Step 11/3

Step 11.

Parts in the frame of the display module.

Detailed disassembly instructions of Asus ZenFone Go ZB551KL in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Asus #Asus ZenFone Go ZB551KL
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Asus ZenFone Go ZB551KL released for markets in different countries.
