Asus ZenFone Go ZB552KL
Asus ZenFone Go ZB552KL
Teardown difficulty:
Easy
Duration:
14 min

Recommended tools

Screwdriver Torx T6 Screwdriver torx t6
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

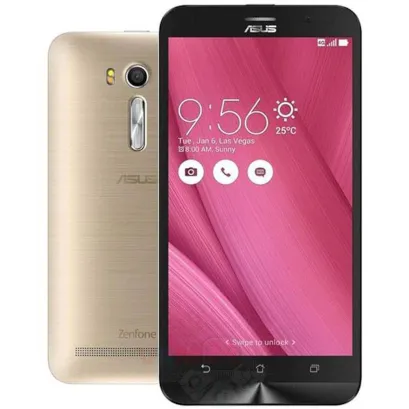

Disassembly/Repair of the mobile device Asus ZenFone Go ZB552KL with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Asus ZenFone Go ZB552KL, Step 1/1 How to disassemble Asus ZenFone Go ZB552KL, Step 1/2

Step 1.

Open the back cover.
How to disassemble Asus ZenFone Go ZB552KL, Step 2/1 How to disassemble Asus ZenFone Go ZB552KL, Step 2/2

Step 2.

Using a screwdriver (Torx T6), unscrew 9 screws.
How to disassemble Asus ZenFone Go ZB552KL, Step 3/1 How to disassemble Asus ZenFone Go ZB552KL, Step 3/2

Step 3.

Open the middle cover.
How to disassemble Asus ZenFone Go ZB552KL, Step 4/1 How to disassemble Asus ZenFone Go ZB552KL, Step 4/2

Step 4.

Disconnect the connector on PCB and remove the battery. The battery model of Asus ZenFone Go ZB552KL is C11P1424.

How to disassemble Asus ZenFone Go ZB552KL, Step 5/1

Step 5.

Disconnect connectors on the daughterboard.
How to disassemble Asus ZenFone Go ZB552KL, Step 6/1 How to disassemble Asus ZenFone Go ZB552KL, Step 6/2

Step 6.

Remove the daughterboard, also known as sub-board.
How to disassemble Asus ZenFone Go ZB552KL, Step 7/1 How to disassemble Asus ZenFone Go ZB552KL, Step 7/2

Step 7.

Remove the PCB with Sim card holders.

⚠️ Warning!

The PCB is glued to the main board.

How to disassemble Asus ZenFone Go ZB552KL, Step 8/1 How to disassemble Asus ZenFone Go ZB552KL, Step 8/2

Step 8.

Pry up the connector and remove the coaxial cable.
How to disassemble Asus ZenFone Go ZB552KL, Step 9/1 How to disassemble Asus ZenFone Go ZB552KL, Step 9/2

Step 9.

Disconnect the connectors on the PCB.
How to disassemble Asus ZenFone Go ZB552KL, Step 10/1 How to disassemble Asus ZenFone Go ZB552KL, Step 10/2

Step 10.

Remove the PCB.
How to disassemble Asus ZenFone Go ZB552KL, Step 11/1 How to disassemble Asus ZenFone Go ZB552KL, Step 11/2 How to disassemble Asus ZenFone Go ZB552KL, Step 11/3

Step 11.

Peel back the protective films, pry up the connectors and remove the front (selfie) and main cameras.

Detailed disassembly instructions of Asus ZenFone Go ZB552KL in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Asus #Asus ZenFone Go ZB552KL
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 14 minutes in time.
Our manual is suitable for all models Asus ZenFone Go ZB552KL — released for markets in different countries.
