Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

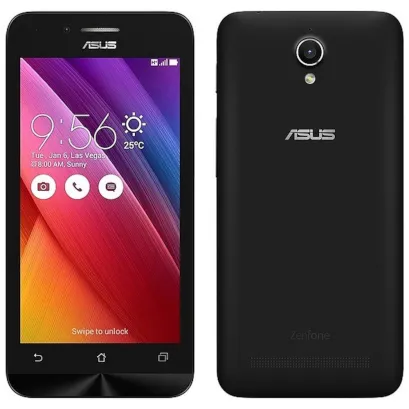

Disassembly/Repair of the mobile device Asus ZenFone Go ZC451TG with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Asus ZenFone Go ZC451TG, Step 1/1 How to disassemble Asus ZenFone Go ZC451TG, Step 1/2

Step 1.

Open the back cover.


How to disassemble Asus ZenFone Go ZC451TG, Step 2/1 How to disassemble Asus ZenFone Go ZC451TG, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble Asus ZenFone Go ZC451TG, Step 3/1 How to disassemble Asus ZenFone Go ZC451TG, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 bolts in the frame of the phone.


How to disassemble Asus ZenFone Go ZC451TG, Step 4/1 How to disassemble Asus ZenFone Go ZC451TG, Step 4/2

Step 4.

Pry and remove the middle frame.


How to disassemble Asus ZenFone Go ZC451TG, Step 5/1 How to disassemble Asus ZenFone Go ZC451TG, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the main PCB.


How to disassemble Asus ZenFone Go ZC451TG, Step 6/1 How to disassemble Asus ZenFone Go ZC451TG, Step 6/2 How to disassemble Asus ZenFone Go ZC451TG, Step 6/3

Step 6.

Disconnect connector on the PCB and remove the main camera.


How to disassemble Asus ZenFone Go ZC451TG, Step 7/1 How to disassemble Asus ZenFone Go ZC451TG, Step 7/2 How to disassemble Asus ZenFone Go ZC451TG, Step 7/3 How to disassemble Asus ZenFone Go ZC451TG, Step 7/4 How to disassemble Asus ZenFone Go ZC451TG, Step 7/5 How to disassemble Asus ZenFone Go ZC451TG, Step 7/6

Step 7.

Disconnect connectors on the PCB.


How to disassemble Asus ZenFone Go ZC451TG, Step 8/1 How to disassemble Asus ZenFone Go ZC451TG, Step 8/2

Step 8.

Remove the PCB.


How to disassemble Asus ZenFone Go ZC451TG, Step 9/1 How to disassemble Asus ZenFone Go ZC451TG, Step 9/2 How to disassemble Asus ZenFone Go ZC451TG, Step 9/3

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the lower PCB.


How to disassemble Asus ZenFone Go ZC451TG, Step 10/1 How to disassemble Asus ZenFone Go ZC451TG, Step 10/2 How to disassemble Asus ZenFone Go ZC451TG, Step 10/3 How to disassemble Asus ZenFone Go ZC451TG, Step 10/4

Step 10.

Overturn the lower board, disconnect the connector and remove it.


How to disassemble Asus ZenFone Go ZC451TG, Step 11/1 How to disassemble Asus ZenFone Go ZC451TG, Step 11/2 How to disassemble Asus ZenFone Go ZC451TG, Step 11/3

Step 11.

Parts in the frame of the display module.

Detailed disassembly instructions of Asus ZenFone Go ZC451TG in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Asus ZenFone Go ZC451TG released for markets in different countries.
