Teardown difficulty:
Moderate
Duration:
8 min

Recommended tools

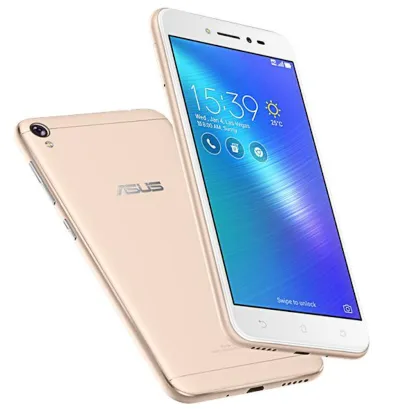

Disassembly/Repair of the mobile device Asus ZenFone Live ZB501KL with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Asus ZenFone Live ZB501KL, Step 1/1 How to disassemble Asus ZenFone Live ZB501KL, Step 1/2

Step 1.

Using the key tool, open the SIM card slot and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.


How to disassemble Asus ZenFone Live ZB501KL, Step 2/1 How to disassemble Asus ZenFone Live ZB501KL, Step 2/2

Step 2.

Open the back cover.


How to disassemble Asus ZenFone Live ZB501KL, Step 3/1 How to disassemble Asus ZenFone Live ZB501KL, Step 3/2

Step 3.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.


How to disassemble Asus ZenFone Live ZB501KL, Step 4/1 How to disassemble Asus ZenFone Live ZB501KL, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts in the lower part.


How to disassemble Asus ZenFone Live ZB501KL, Step 5/1 How to disassemble Asus ZenFone Live ZB501KL, Step 5/2 How to disassemble Asus ZenFone Live ZB501KL, Step 5/3 How to disassemble Asus ZenFone Live ZB501KL, Step 5/4

Step 5.

Disconnect connectors on the lower PCB.


How to disassemble Asus ZenFone Live ZB501KL, Step 6/1 How to disassemble Asus ZenFone Live ZB501KL, Step 6/2 How to disassemble Asus ZenFone Live ZB501KL, Step 6/3

Step 6.

Turn over the lower PCB, disconnect the connector of the coaxial cable from the inside and remove the board.


How to disassemble Asus ZenFone Live ZB501KL, Step 7/1 How to disassemble Asus ZenFone Live ZB501KL, Step 7/2

Step 7.

Pry and remove the lower part with buzzer (speaker).


How to disassemble Asus ZenFone Live ZB501KL, Step 8/1 How to disassemble Asus ZenFone Live ZB501KL, Step 8/2

Step 8.

Disconnect connector on the PCB and remove the main camera.


How to disassemble Asus ZenFone Live ZB501KL, Step 9/1 How to disassemble Asus ZenFone Live ZB501KL, Step 9/2 How to disassemble Asus ZenFone Live ZB501KL, Step 9/3

Step 9.

Disconnect connectors on the PCB.


How to disassemble Asus ZenFone Live ZB501KL, Step 10/1 How to disassemble Asus ZenFone Live ZB501KL, Step 10/2

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the main PCB.


How to disassemble Asus ZenFone Live ZB501KL, Step 11/1 How to disassemble Asus ZenFone Live ZB501KL, Step 11/2

Step 11.

Remove the PCB.


How to disassemble Asus ZenFone Live ZB501KL, Step 12/1 How to disassemble Asus ZenFone Live ZB501KL, Step 12/2 How to disassemble Asus ZenFone Live ZB501KL, Step 12/3 How to disassemble Asus ZenFone Live ZB501KL, Step 12/4

Step 12.

Pry and remove coaxial cable and vibrator.


How to disassemble Asus ZenFone Live ZB501KL, Step 13/1 How to disassemble Asus ZenFone Live ZB501KL, Step 13/2

Step 13.

Pry and remove ear speaker.


How to disassemble Asus ZenFone Live ZB501KL, Step 14/1 How to disassemble Asus ZenFone Live ZB501KL, Step 14/2 How to disassemble Asus ZenFone Live ZB501KL, Step 14/3

Step 14.

Parts in the frame of the display module.

Detailed disassembly instructions of Asus ZenFone Live ZB501KL in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about 8 minutes in time.
Our manual is suitable for all models Asus ZenFone Live ZB501KL released for markets in different countries.
