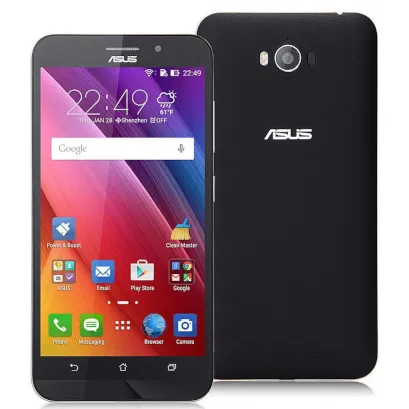

Asus ZenFone Max ZC550KL
Asus ZenFone Max ZC550KL
Teardown difficulty:
Moderate
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Asus ZenFone Max ZC550KL with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Asus ZenFone Max ZC550KL, Step 1/1 How to disassemble Asus ZenFone Max ZC550KL, Step 1/2

Step 1.

Open the back cover.

How to disassemble Asus ZenFone Max ZC550KL, Step 2/1 How to disassemble Asus ZenFone Max ZC550KL, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.

How to disassemble Asus ZenFone Max ZC550KL, Step 3/1 How to disassemble Asus ZenFone Max ZC550KL, Step 3/2

Step 3.

Pry and remove the middle frame.

How to disassemble Asus ZenFone Max ZC550KL, Step 4/1 How to disassemble Asus ZenFone Max ZC550KL, Step 4/2

Step 4.

Inside the frame are located: speaker (buzzer), vibrator and FFC with laser auto-focus technology. Pry & remove these parts.

How to disassemble Asus ZenFone Max ZC550KL, Step 5/1 How to disassemble Asus ZenFone Max ZC550KL, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the 6 bolts securing the back cover.

How to disassemble Asus ZenFone Max ZC550KL, Step 6/1 How to disassemble Asus ZenFone Max ZC550KL, Step 6/2

Step 6.

Lift and remove the battery.

How to disassemble Asus ZenFone Max ZC550KL, Step 7/1 How to disassemble Asus ZenFone Max ZC550KL, Step 7/2 How to disassemble Asus ZenFone Max ZC550KL, Step 7/3

Step 7.

Disconnect connectors on the lower PCB.

How to disassemble Asus ZenFone Max ZC550KL, Step 8/1 How to disassemble Asus ZenFone Max ZC550KL, Step 8/2

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the lower PCB.

How to disassemble Asus ZenFone Max ZC550KL, Step 9/1 How to disassemble Asus ZenFone Max ZC550KL, Step 9/2

Step 9.

Remove the lower PCB.

How to disassemble Asus ZenFone Max ZC550KL, Step 10/1 How to disassemble Asus ZenFone Max ZC550KL, Step 10/2

Step 10.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Asus ZenFone Max ZC550KL, Step 11/1 How to disassemble Asus ZenFone Max ZC550KL, Step 11/2

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Asus ZenFone Max ZC550KL, Step 12/1 How to disassemble Asus ZenFone Max ZC550KL, Step 12/2 How to disassemble Asus ZenFone Max ZC550KL, Step 12/3

Step 12.

Disconnect connectors on the PCB.

How to disassemble Asus ZenFone Max ZC550KL, Step 13/1 How to disassemble Asus ZenFone Max ZC550KL, Step 13/2 How to disassemble Asus ZenFone Max ZC550KL, Step 13/3

Step 13.

Overturn the PCB, disconnect the connector from the inside and remove the board.

How to disassemble Asus ZenFone Max ZC550KL, Step 14/1 How to disassemble Asus ZenFone Max ZC550KL, Step 14/2

Step 14.

Remove the coaxial cable, the FFC (flexible flat cable) of the volume and power buttons and the ear speaker.

How to disassemble Asus ZenFone Max ZC550KL, Step 15/1 How to disassemble Asus ZenFone Max ZC550KL, Step 15/2 How to disassemble Asus ZenFone Max ZC550KL, Step 15/3

Step 15.

Parts in the frame of the display module.

Detailed disassembly instructions of Asus ZenFone Max ZC550KL in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Asus #Asus ZenFone Max ZC550KL
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 8 minutes in time.
Our manual is suitable for all models Asus ZenFone Max ZC550KL released for markets in different countries.
