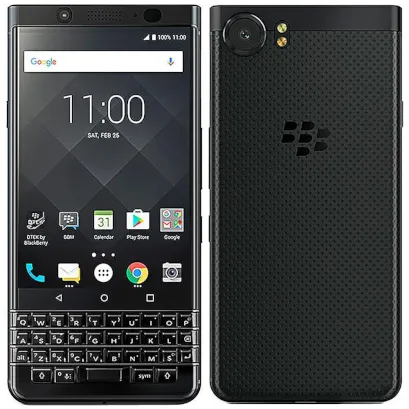

Disassembly/Repair of the mobile device BlackBerry KEYone with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble BlackBerry KEYone, Step 1/1 How to disassemble BlackBerry KEYone, Step 1/2

Step 1.

Using the key tool, open the SIM card slot and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble BlackBerry KEYone, Step 2/1 How to disassemble BlackBerry KEYone, Step 2/2

Step 2.

Open the cap hiding the bolts at the upper part.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble BlackBerry KEYone, Step 3/1 How to disassemble BlackBerry KEYone, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew the 2 bolts securing the back cover.

How to disassemble BlackBerry KEYone, Step 4/1 How to disassemble BlackBerry KEYone, Step 4/2

Step 4.

Pry and remove the cover at the upper part.

How to disassemble BlackBerry KEYone, Step 5/1 How to disassemble BlackBerry KEYone, Step 5/2

Step 5.

Open the back cover.

How to disassemble BlackBerry KEYone, Step 6/1 How to disassemble BlackBerry KEYone, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew the 2 bolts securing the battery connector and disconnect the connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble BlackBerry KEYone, Step 7/1 How to disassemble BlackBerry KEYone, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 7 bolts in the lower PCB.

How to disassemble BlackBerry KEYone, Step 8/1 How to disassemble BlackBerry KEYone, Step 8/2

Step 8.

Pry and remove the protective panel at the bottom part.

How to disassemble BlackBerry KEYone, Step 9/1 How to disassemble BlackBerry KEYone, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 3 bolts at the upper part.

How to disassemble BlackBerry KEYone, Step 10/1 How to disassemble BlackBerry KEYone, Step 10/2

Step 10.

Pry and remove the protective panel at the upper part.

How to disassemble BlackBerry KEYone, Step 11/1 How to disassemble BlackBerry KEYone, Step 11/2

Step 11.

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 5 bolts in the PCB.

How to disassemble BlackBerry KEYone, Step 12/1 How to disassemble BlackBerry KEYone, Step 12/2

Step 12.

Remove the panel covering the connectors.

How to disassemble BlackBerry KEYone, Step 13/1 How to disassemble BlackBerry KEYone, Step 13/2

Step 13.

Disconnect the connectors on the PCB.

How to disassemble BlackBerry KEYone, Step 14/1 How to disassemble BlackBerry KEYone, Step 14/2

Step 14.

Remove the PCB.

How to disassemble BlackBerry KEYone, Step 15/1 How to disassemble BlackBerry KEYone, Step 15/2 How to disassemble BlackBerry KEYone, Step 15/3

Step 15.

Parts in the frame of the display module.

Detailed disassembly instructions of BlackBerry KEYone in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #BlackBerry #BlackBerry KEYone
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 10 minutes in time.
Our manual is suitable for all models BlackBerry KEYone released for markets in different countries.
