Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

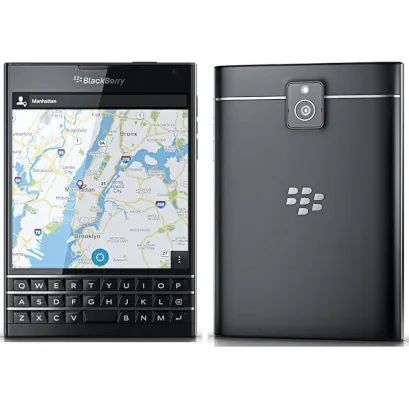

Disassembly/Repair of the mobile device BlackBerry Passport (Q30) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble BlackBerry Passport (Q30), Step 1/1 How to disassemble BlackBerry Passport (Q30), Step 1/2

Step 1.

Open the cover on the front panel.


How to disassemble BlackBerry Passport (Q30), Step 2/1 How to disassemble BlackBerry Passport (Q30), Step 2/2

Step 2.

Using a screwdriver (hex T4), unscrew the 2 bolts securing the back cover.


How to disassemble BlackBerry Passport (Q30), Step 3/1 How to disassemble BlackBerry Passport (Q30), Step 3/2

Step 3.

Open the panel.


How to disassemble BlackBerry Passport (Q30), Step 4/1 How to disassemble BlackBerry Passport (Q30), Step 4/2

Step 4.

Using a screwdriver (hex T4), unscrew the 5 bolts securing the back cover.


How to disassemble BlackBerry Passport (Q30), Step 5/1 How to disassemble BlackBerry Passport (Q30), Step 5/2

Step 5.

Open the back cover.


How to disassemble BlackBerry Passport (Q30), Step 6/1 How to disassemble BlackBerry Passport (Q30), Step 6/2 How to disassemble BlackBerry Passport (Q30), Step 6/3

Step 6.

Using a screwdriver (hex T4), unscrew 1 bolt and disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.


How to disassemble BlackBerry Passport (Q30), Step 7/1 How to disassemble BlackBerry Passport (Q30), Step 7/2 How to disassemble BlackBerry Passport (Q30), Step 7/3

Step 7.

Disconnect the connectors on the PCB


How to disassemble BlackBerry Passport (Q30), Step 8/1 How to disassemble BlackBerry Passport (Q30), Step 8/2

Step 8.

Using a screwdriver (hex T4) unscrew 6 bolts in the PCB.


How to disassemble BlackBerry Passport (Q30), Step 9/1 How to disassemble BlackBerry Passport (Q30), Step 9/2

Step 9.

Remove the PCB.


How to disassemble BlackBerry Passport (Q30), Step 10/1 How to disassemble BlackBerry Passport (Q30), Step 10/2 How to disassemble BlackBerry Passport (Q30), Step 10/3

Step 10.

Parts in the frame of the display module.

Detailed disassembly instructions of BlackBerry Passport (Q30) in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models BlackBerry Passport (Q30) released for markets in different countries.
