BlackBerry Z10
BlackBerry Z10
Teardown difficulty:
Easy
Duration:
9 min

Recommended tools

Screwdriver Torx Т2 Screwdriver torx т2
Screwdriver Torx T6 Screwdriver torx t6
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

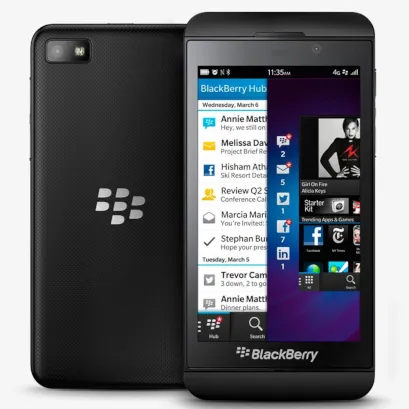

Disassembly/Repair of the mobile device BlackBerry Z10 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble BlackBerry Z10, Step 1/1 How to disassemble BlackBerry Z10, Step 1/2

Step 1.

Open the back cover.

How to disassemble BlackBerry Z10, Step 2/1 How to disassemble BlackBerry Z10, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble BlackBerry Z10, Step 3/1 How to disassemble BlackBerry Z10, Step 3/2

Step 3.

Using a screwdriver (hex T6), unscrew 8 bolts in the frame of the phone.

How to disassemble BlackBerry Z10, Step 4/1 How to disassemble BlackBerry Z10, Step 4/2

Step 4.

Pry and remove the middle cover.

How to disassemble BlackBerry Z10, Step 5/1 How to disassemble BlackBerry Z10, Step 5/2

Step 5.

Disconnect connector on the PCB and remove the main camera.

How to disassemble BlackBerry Z10, Step 6/1 How to disassemble BlackBerry Z10, Step 6/2 How to disassemble BlackBerry Z10, Step 6/3

Step 6.

Disconnect connectors on the PCB.

How to disassemble BlackBerry Z10, Step 7/1 How to disassemble BlackBerry Z10, Step 7/2

Step 7.

Remove the PCB.

How to disassemble BlackBerry Z10, Step 8/1 How to disassemble BlackBerry Z10, Step 8/2

Step 8.

Using a screwdriver (hex T2), unscrew the 3 bolts in the display frame

How to disassemble BlackBerry Z10, Step 9/1 How to disassemble BlackBerry Z10, Step 9/2

Step 9.

Remove the flexible flat cable of the volume and power buttons.

How to disassemble BlackBerry Z10, Step 10/1 How to disassemble BlackBerry Z10, Step 10/2

Step 10.

Remove the flexible flat cable with the headphone jack/socket and earpiece speaker.

How to disassemble BlackBerry Z10, Step 11/1 How to disassemble BlackBerry Z10, Step 11/2

Step 11.

Remove the PCB with vibrator motor.

How to disassemble BlackBerry Z10, Step 12/1 How to disassemble BlackBerry Z10, Step 12/2 How to disassemble BlackBerry Z10, Step 12/3

Step 12.

Parts in the frame of the display module.

Detailed disassembly instructions of BlackBerry Z10 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #BlackBerry #BlackBerry Z10
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 9 minutes in time.
Our manual is suitable for all models BlackBerry Z10 released for markets in different countries.
