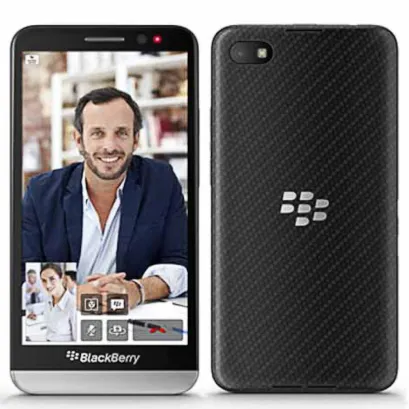

Disassembly of the mobile device BlackBerry Z30 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble BlackBerry Z30, Step 1/1 How to disassemble BlackBerry Z30, Step 1/2

Step 1

Open the back cover.

How to disassemble BlackBerry Z30, Step 2/1 How to disassemble BlackBerry Z30, Step 2/2

Step 2

Using a screwdriver (hex T5), unscrew 10 bolts.

How to disassemble BlackBerry Z30, Step 3/1 How to disassemble BlackBerry Z30, Step 3/2

Step 3

Pry and remove the buzzer (speaker) assembly.

How to disassemble BlackBerry Z30, Step 4/1 How to disassemble BlackBerry Z30, Step 4/2 How to disassemble BlackBerry Z30, Step 4/3

Step 4

Lift the display module.

⚠️ Warning!

The display module cable connects by a connector on the PCB. Therefore, to separate the display module and the cover must be carefully.

How to disassemble BlackBerry Z30, Step 5/1 How to disassemble BlackBerry Z30, Step 5/2

Step 5

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

How to disassemble BlackBerry Z30, Step 6/1 How to disassemble BlackBerry Z30, Step 6/2 How to disassemble BlackBerry Z30, Step 6/3 How to disassemble BlackBerry Z30, Step 6/4 How to disassemble BlackBerry Z30, Step 6/5 How to disassemble BlackBerry Z30, Step 6/6 How to disassemble BlackBerry Z30, Step 6/7

Step 6

Disconnect connectors on the PCB.

How to disassemble BlackBerry Z30, Step 7/1 How to disassemble BlackBerry Z30, Step 7/2

Step 7

Remove the PCB.

How to disassemble BlackBerry Z30, Step 8/1 How to disassemble BlackBerry Z30, Step 8/2 How to disassemble BlackBerry Z30, Step 8/3

Step 8

Parts in the frame of the display module.

How to disassemble BlackBerry Z30, Step 9/1 How to disassemble BlackBerry Z30, Step 9/2

Step 9

Pry and remove the earpiece (speaker).

Ask a question

Detailed disassembly instructions of BlackBerry Z30 in the video, made by our mobile repair & service center:

#instructions #BlackBerry #BlackBerry Z30
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models BlackBerry Z30 released for markets in different countries.
