Teardown difficulty:
Easy
Duration:
12 min

Recommended tools

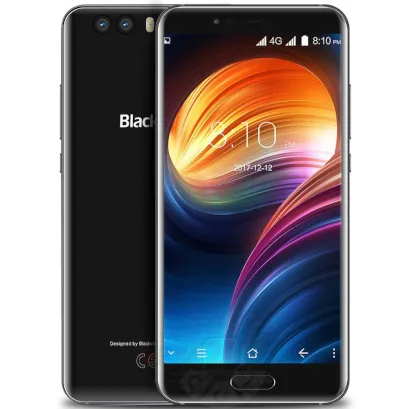

Disassembly/Repair of the mobile device Blackview P6000 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Blackview P6000, Step 1/1 How to disassemble Blackview P6000, Step 1/2

Step 1.

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.


How to disassemble Blackview P6000, Step 2/1 How to disassemble Blackview P6000, Step 2/2

Step 2.

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.


How to disassemble Blackview P6000, Step 3/1 How to disassemble Blackview P6000, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 15 bolts in the frame of the phone.


How to disassemble Blackview P6000, Step 4/1 How to disassemble Blackview P6000, Step 4/2

Step 4.

Pry and remove the middle frame.


How to disassemble Blackview P6000, Step 5/1 How to disassemble Blackview P6000, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts and remove the bracket holds the connectors.


How to disassemble Blackview P6000, Step 6/1 How to disassemble Blackview P6000, Step 6/2

Step 6.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.


How to disassemble Blackview P6000, Step 7/1 How to disassemble Blackview P6000, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts securing the battery.


How to disassemble Blackview P6000, Step 8/1 How to disassemble Blackview P6000, Step 8/2

Step 8.

Lift and remove the battery.


How to disassemble Blackview P6000, Step 9/1 How to disassemble Blackview P6000, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the lower PCB.


How to disassemble Blackview P6000, Step 10/1 How to disassemble Blackview P6000, Step 10/2 How to disassemble Blackview P6000, Step 10/3

Step 10.

Disconnect connectors on the lower PCB.


How to disassemble Blackview P6000, Step 11/1 How to disassemble Blackview P6000, Step 11/2

Step 11.

Remove the lower board.


How to disassemble Blackview P6000, Step 12/1 How to disassemble Blackview P6000, Step 12/2

Step 12.

Disconnect connectors on the PCB.


How to disassemble Blackview P6000, Step 13/1 How to disassemble Blackview P6000, Step 13/2

Step 13.

Remove the PCB.


How to disassemble Blackview P6000, Step 14/1 How to disassemble Blackview P6000, Step 14/2 How to disassemble Blackview P6000, Step 14/3

Step 14.

Parts are in the frame of the display module.

Detailed disassembly instructions of Blackview P6000 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 12 minutes in time.
Our manual is suitable for all models Blackview P6000 released for markets in different countries.
