Disassembly/Repair of the mobile device BQ-5504 Strike Selfie Max with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble BQ-5504 Strike Selfie Max, Step 1/1 How to disassemble BQ-5504 Strike Selfie Max, Step 1/2

Step 1.

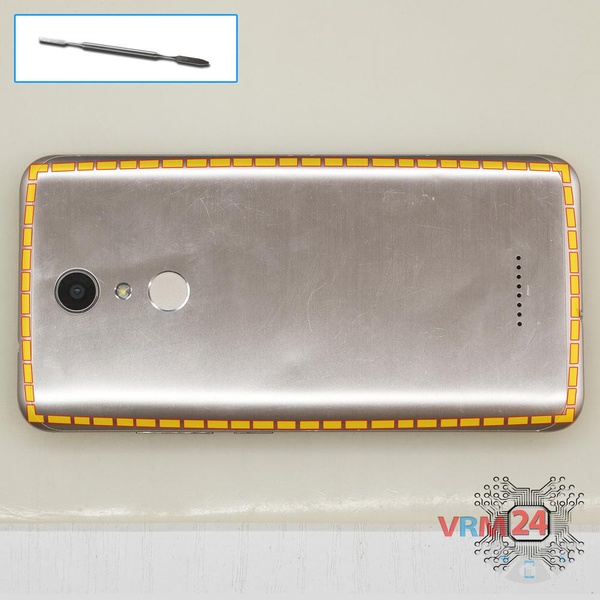

Open the back cover.


How to disassemble BQ-5504 Strike Selfie Max, Step 2/1 How to disassemble BQ-5504 Strike Selfie Max, Step 2/2

Step 2.

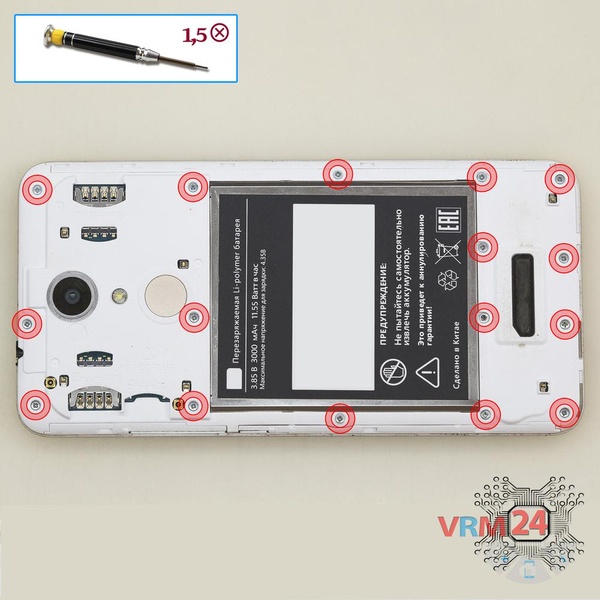

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 16 bolts in the frame of the phone.


How to disassemble BQ-5504 Strike Selfie Max, Step 3/1 How to disassemble BQ-5504 Strike Selfie Max, Step 3/2

Step 3.

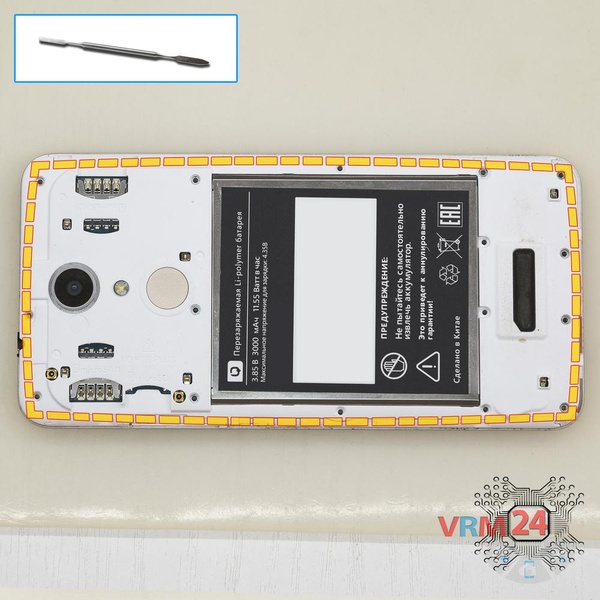

Pry and remove the middle frame.


How to disassemble BQ-5504 Strike Selfie Max, Step 4/1 How to disassemble BQ-5504 Strike Selfie Max, Step 4/2 How to disassemble BQ-5504 Strike Selfie Max, Step 4/3

Step 4.

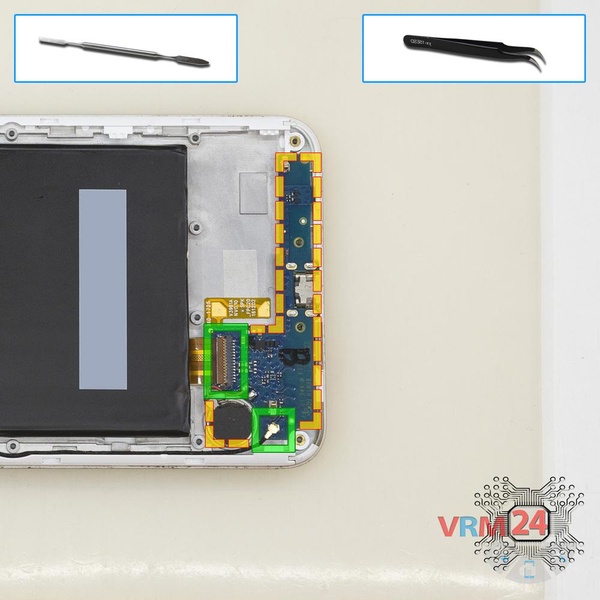

Disconnect connectors on the lower PCB and remove it.


How to disassemble BQ-5504 Strike Selfie Max, Step 5/1 How to disassemble BQ-5504 Strike Selfie Max, Step 5/2 How to disassemble BQ-5504 Strike Selfie Max, Step 5/3

Step 5.

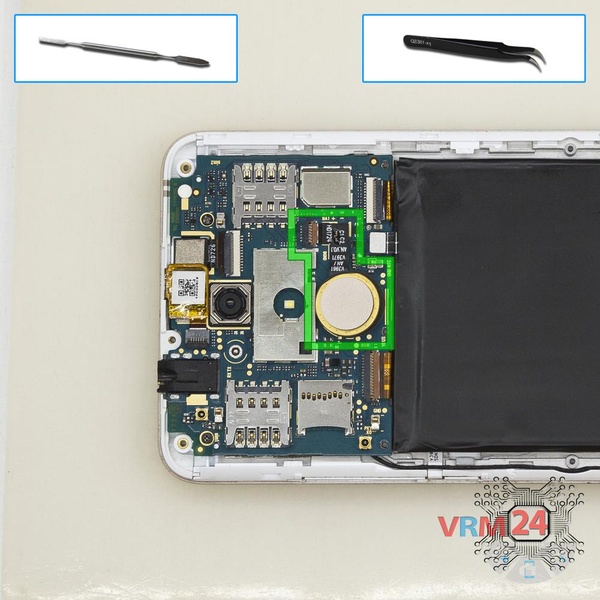

Disconnect the connector on PCB and remove the fingerprint sensor.


How to disassemble BQ-5504 Strike Selfie Max, Step 6/1 How to disassemble BQ-5504 Strike Selfie Max, Step 6/2

Step 6.

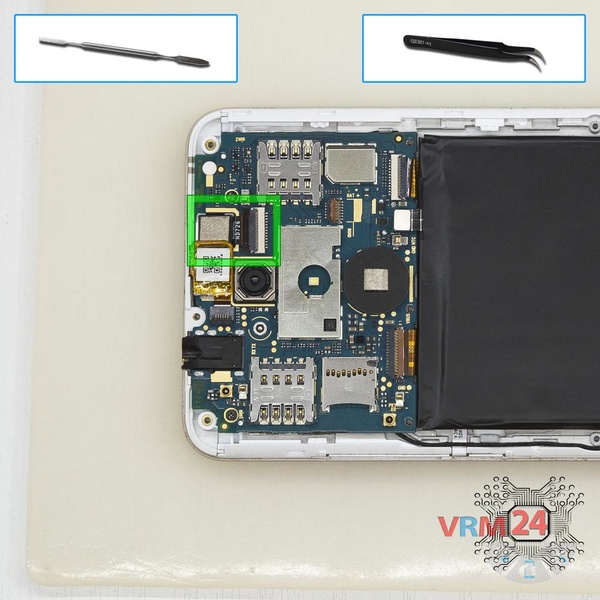

Disconnect the connector on PCB, and remove the front (selfie) camera.


How to disassemble BQ-5504 Strike Selfie Max, Step 7/1 How to disassemble BQ-5504 Strike Selfie Max, Step 7/2 How to disassemble BQ-5504 Strike Selfie Max, Step 7/3

Step 7.

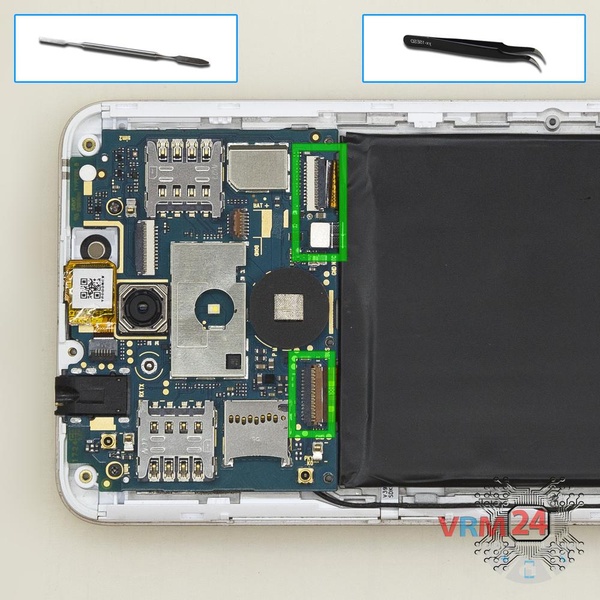

Disconnect connectors on the PCB.


How to disassemble BQ-5504 Strike Selfie Max, Step 8/1 How to disassemble BQ-5504 Strike Selfie Max, Step 8/2

Step 8.

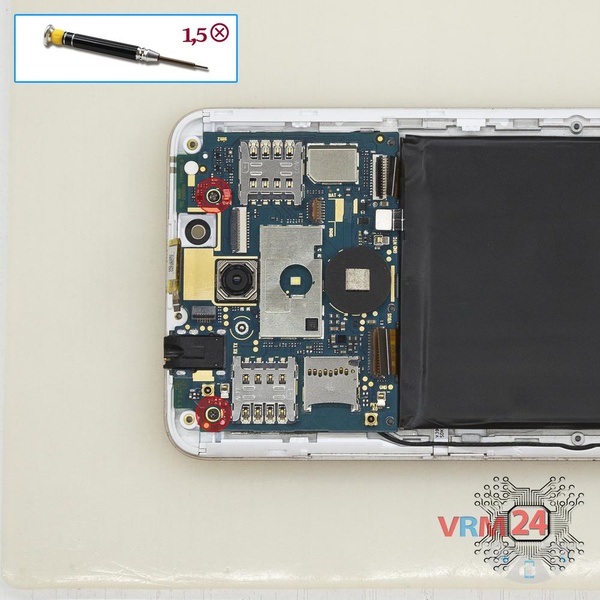

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.


How to disassemble BQ-5504 Strike Selfie Max, Step 9/1 How to disassemble BQ-5504 Strike Selfie Max, Step 9/2

Step 9.

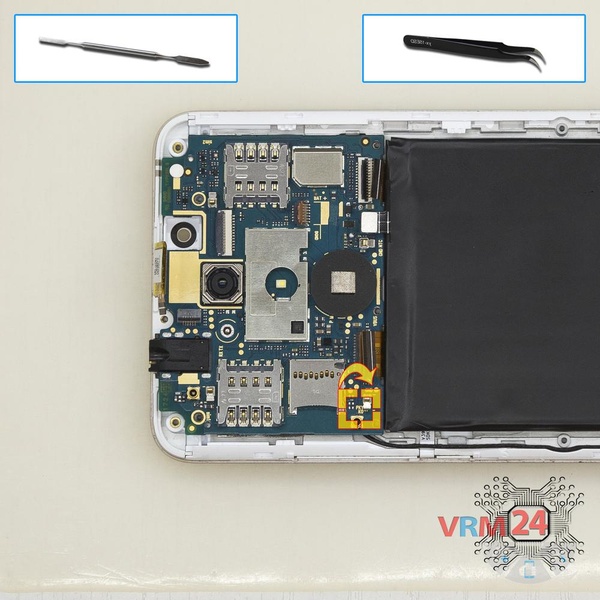

Overturn the board, disconnect the connector from the inside and remove it.


How to disassemble BQ-5504 Strike Selfie Max, Step 10/1 How to disassemble BQ-5504 Strike Selfie Max, Step 10/2 How to disassemble BQ-5504 Strike Selfie Max, Step 10/3

Step 10.

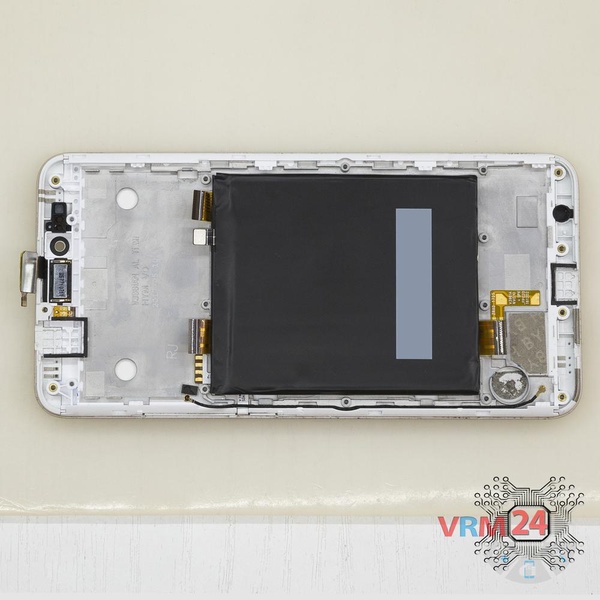

Parts are in the frame of the display module.

Detailed disassembly instructions of BQ-5504 Strike Selfie Max in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 9 minutes in time.
Our manual is suitable for all models BQ-5504 Strike Selfie Max released for markets in different countries.
