Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

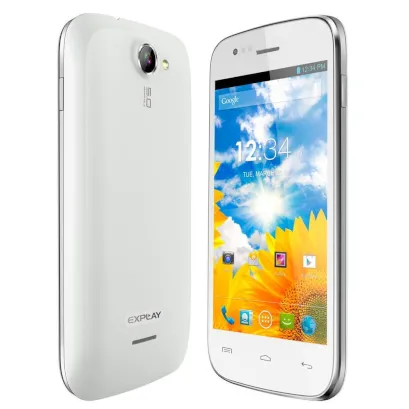

Disassembly/Repair of the mobile device Explay A400 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Explay A400, Step 1/1 How to disassemble Explay A400, Step 1/2

Step 1.

Open the back cover.


How to disassemble Explay A400, Step 2/1 How to disassemble Explay A400, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble Explay A400, Step 3/1 How to disassemble Explay A400, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the frame of the phone.


How to disassemble Explay A400, Step 4/1 How to disassemble Explay A400, Step 4/2

Step 4.

Pry and remove the middle frame.


How to disassemble Explay A400, Step 5/1 How to disassemble Explay A400, Step 5/2

Step 5.

Remove the keys of the volume and power buttons.


How to disassemble Explay A400, Step 6/1 How to disassemble Explay A400, Step 6/2

Step 6.

Disconnect connector on the PCB and remove the main camera.


How to disassemble Explay A400, Step 7/1 How to disassemble Explay A400, Step 7/2

Step 7.

Disconnect connector on the PCB.


How to disassemble Explay A400, Step 8/1 How to disassemble Explay A400, Step 8/2

Step 8.

Remove the PCB.


How to disassemble Explay A400, Step 9/1

Step 9.

The touchscreen.


How to disassemble Explay A400, Step 10/1 How to disassemble Explay A400, Step 10/2 How to disassemble Explay A400, Step 10/3

Step 10.

The display.

Detailed disassembly instructions of Explay A400 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Explay A400 released for markets in different countries.
