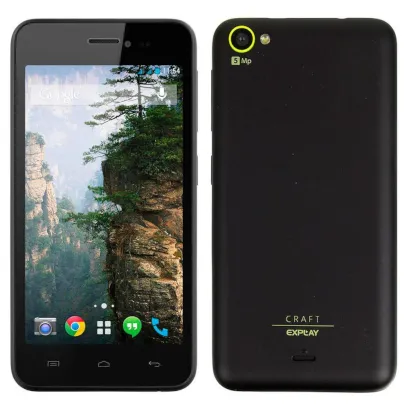

Explay Craft
Explay Craft
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Explay Craft with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Explay Craft, Step 1/1 How to disassemble Explay Craft, Step 1/2

Step 1.

Open the back cover.

How to disassemble Explay Craft, Step 2/1

Step 2.

Lift and remove the battery.

How to disassemble Explay Craft, Step 3/1 How to disassemble Explay Craft, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the phone.

How to disassemble Explay Craft, Step 4/1 How to disassemble Explay Craft, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Explay Craft, Step 5/1

Step 5.

The middle frame with the buzzer (speaker).

How to disassemble Explay Craft, Step 6/1 How to disassemble Explay Craft, Step 6/2

Step 6.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Explay Craft, Step 7/1 How to disassemble Explay Craft, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Explay Craft, Step 8/1 How to disassemble Explay Craft, Step 8/2 How to disassemble Explay Craft, Step 8/3

Step 8.

Disconnect the connectors on the PCB and remove FFC of the volume and power buttons, the vibrator motor and the microphone.

How to disassemble Explay Craft, Step 9/1 How to disassemble Explay Craft, Step 9/2

Step 9.

Remove the PCB.

How to disassemble Explay Craft, Step 10/1 How to disassemble Explay Craft, Step 10/2 How to disassemble Explay Craft, Step 10/3

Step 10.

Parts in the frame of the display module.

Detailed disassembly instructions of Explay Craft in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Explay #Explay Craft
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Explay Craft released for markets in different countries.
