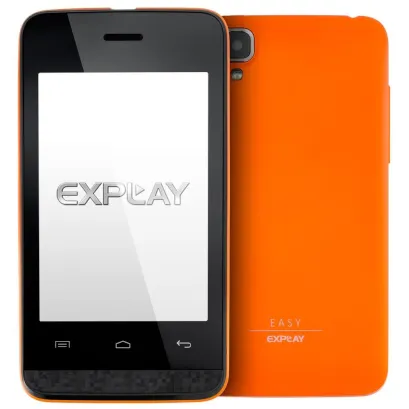

Disassembly/Repair of the mobile device Explay Easy with each step description and the required set of tools.

4131

Views

—

Share

5

Questions

Vadim Popoff

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

Open the back cover

Step 1.

Open the back cover

Open the back cover.

Remove the battery

Step 2.

Remove the battery

Lift and remove the battery.

Unscrew the screws

Step 3.

Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the frame of the phone.

Remove the tab

Step 4.

Remove the tab

Unstick the label.

⚠ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

Open the mid-frame

Step 5.

Open the mid-frame

Pry and remove the middle frame.

Remove the buttons

Step 6.

Remove the buttons

Remove the keys of volume and power buttons.

Disconnect the connectors

Step 7.

Disconnect the connectors

Disconnect connectors on the PCB.

Open the display module

Step 8.

Open the display module

Separate the PCB and Display.

In the display frame remained

Step 9.

In the display frame remained

The front frame with a touchscreen.

Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Disassembling\Repair has easy complexity and takes about 8 minutes in time. Our manual is suitable for all models Explay Easy or Эксплей Изи released for markets in different countries.
#instructions #Explay #Explay Easy
Detailed disassembly instructions of Explay Easy in the video, made by our mobile repair & service center:
