Disassembly/Repair of the mobile device Explay Hit with each step description and the required set of tools.

4462

Views

—

Share

5

Questions

Vadim Popoff

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

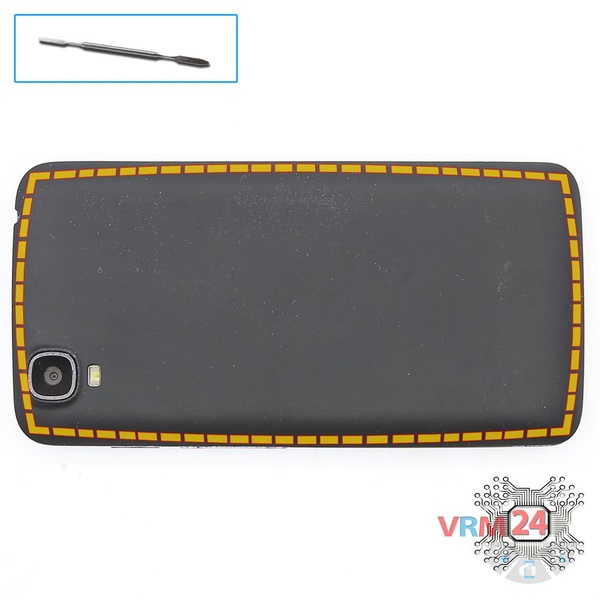

Open the back cover

Step 1.

Open the back cover

Open the back cover.

Remove the battery

Step 2.

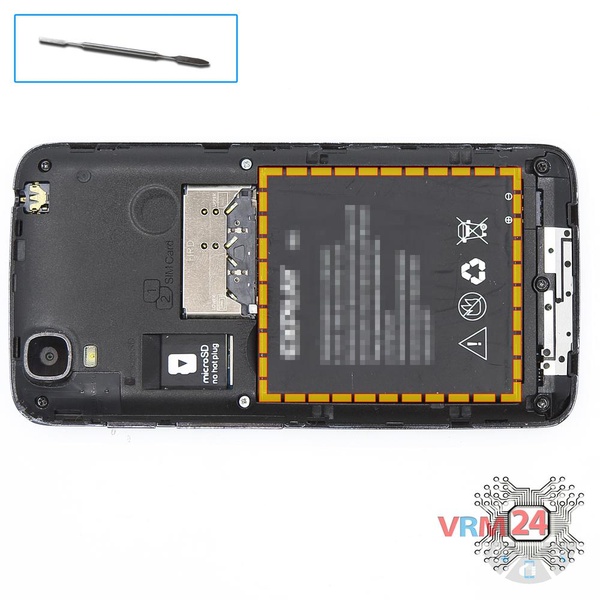

Remove the battery

Lift and remove the battery.

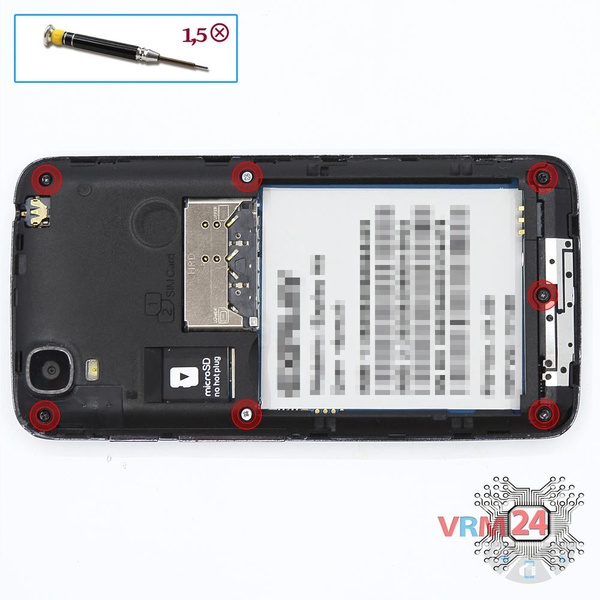

Unscrew the screws

Step 3.

Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the frame of the phone.

Open the cover

Step 4.

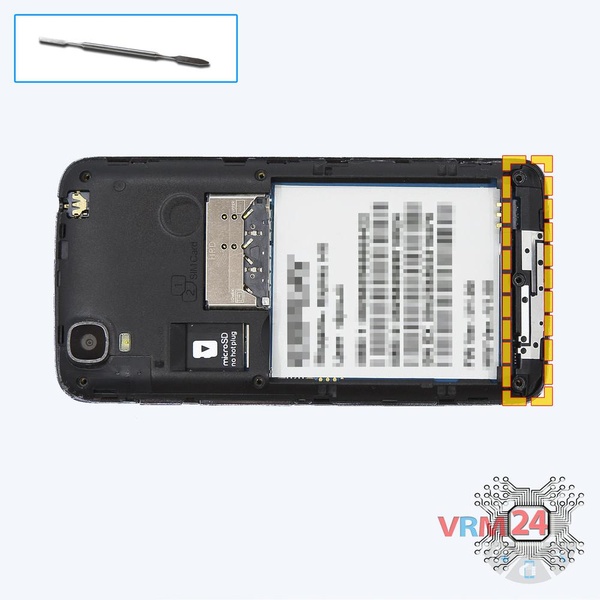

Open the cover

Pry and remove the lower cover with antennas.

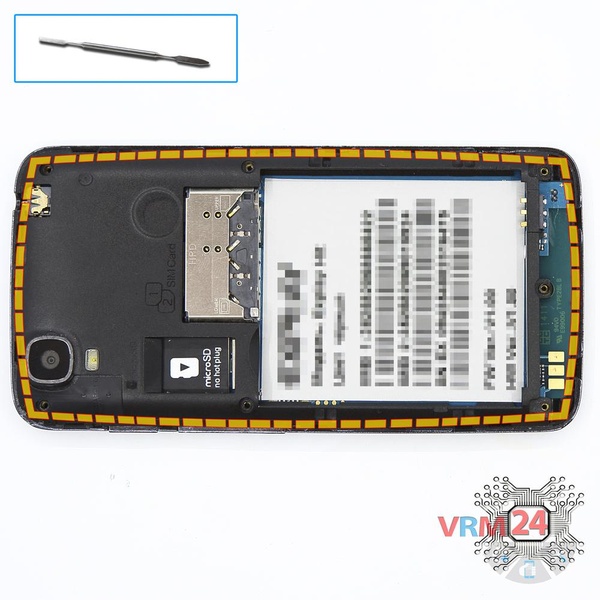

Open the mid-frame

Step 5.

Open the mid-frame

Pry and remove the middle frame.

Disconnect the connector

Step 6.

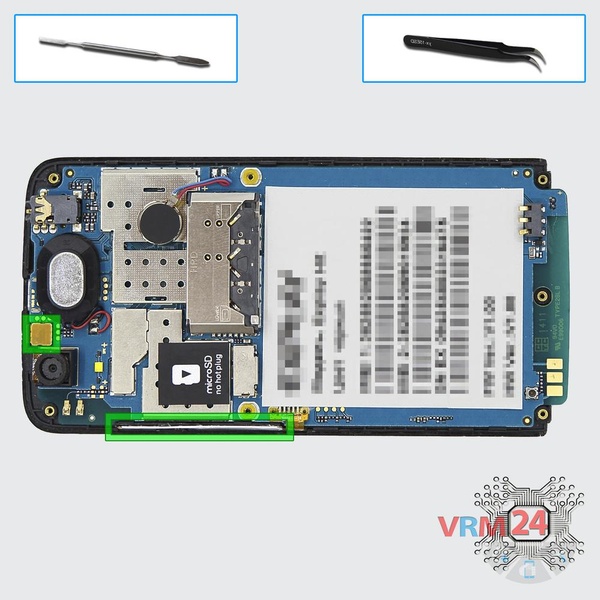

Disconnect the connector

Disconnect connectors on the PCB and pry up flexible flat cable of volume and power buttons.

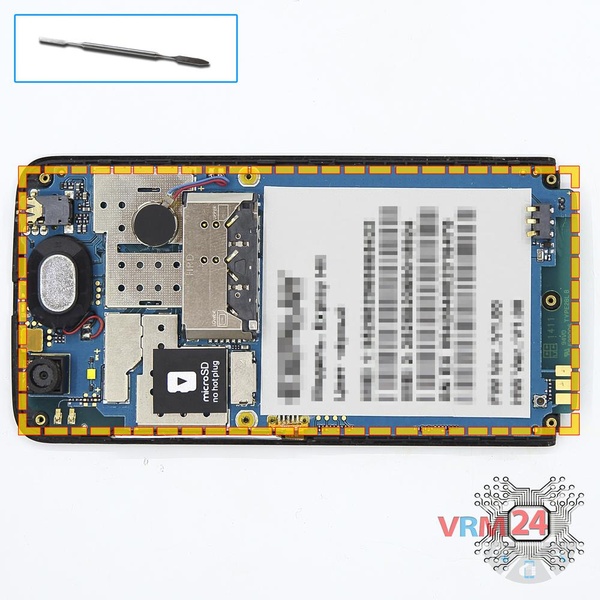

Remove the motherboard

Step 7.

Remove the motherboard

Remove the PCB.

In the display frame remained

Step 8.

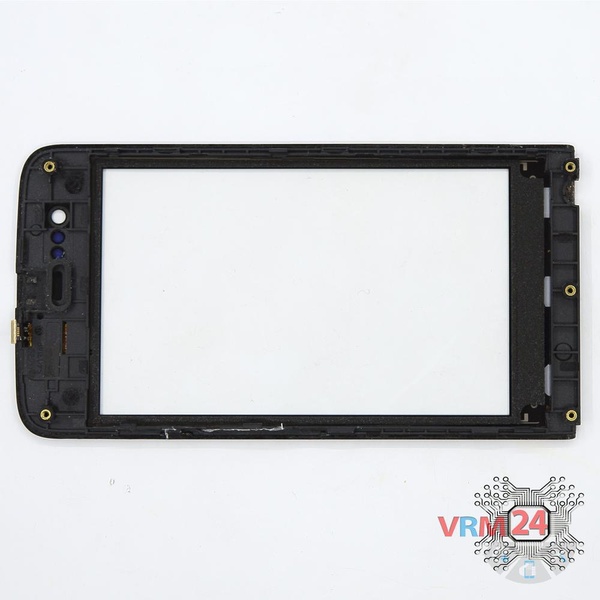

In the display frame remained

The front frame with touch screen.

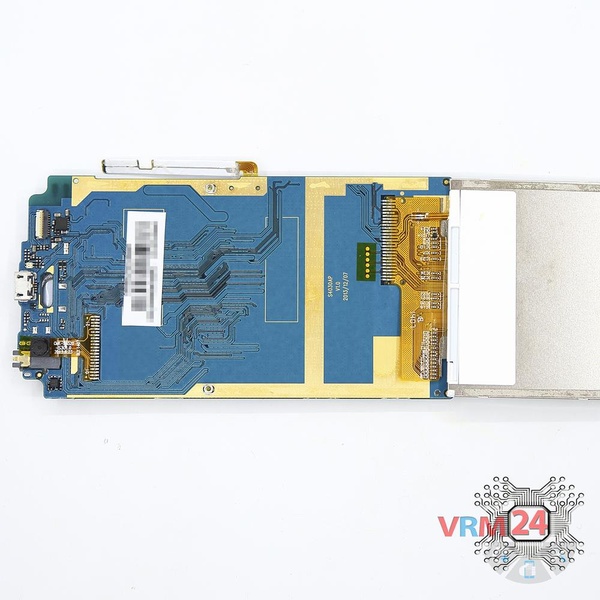

On the motherboard

Step 9.

On the motherboard

PCB

Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Disassembling\Repair has easy complexity and takes about 3 minutes in time. Our manual is suitable for all models Explay Hit or Эксплей Хит released for markets in different countries.
#instructions #Explay #Explay Hit
Detailed disassembly instructions of Explay Hit in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.
