Explay Phantom
Explay Phantom
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Explay Phantom with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Explay Phantom, Step 1/1

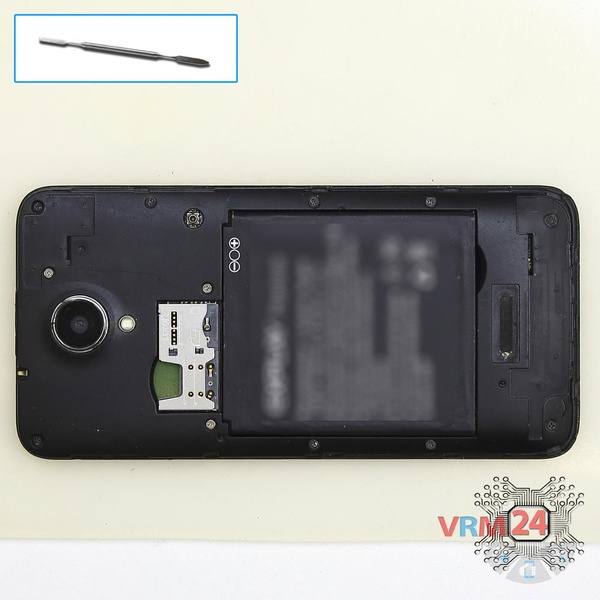

Step 1.

Open the back cover.

How to disassemble Explay Phantom, Step 2/1

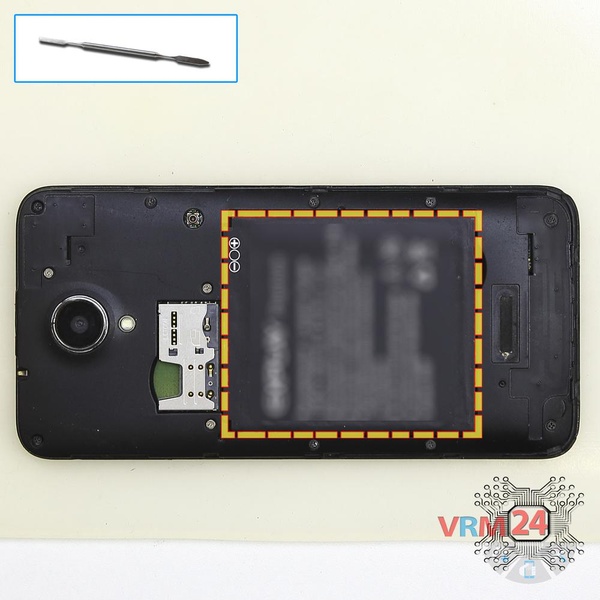

Step 2.

Lift and remove the battery.

How to disassemble Explay Phantom, Step 3/1 How to disassemble Explay Phantom, Step 3/2

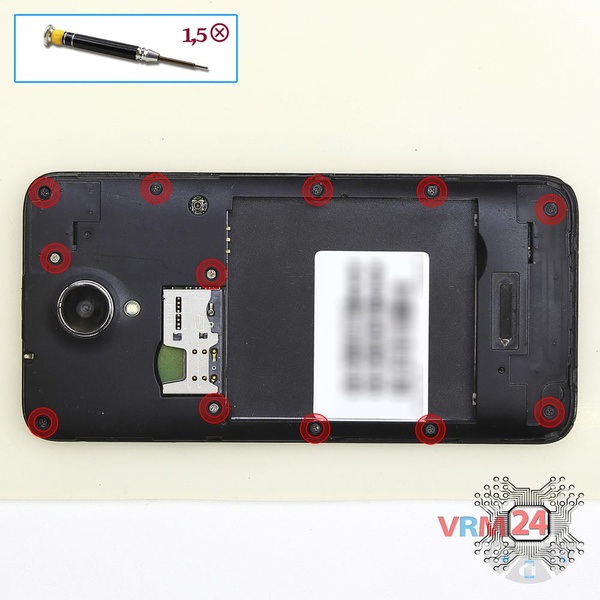

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.

How to disassemble Explay Phantom, Step 4/1 How to disassemble Explay Phantom, Step 4/2

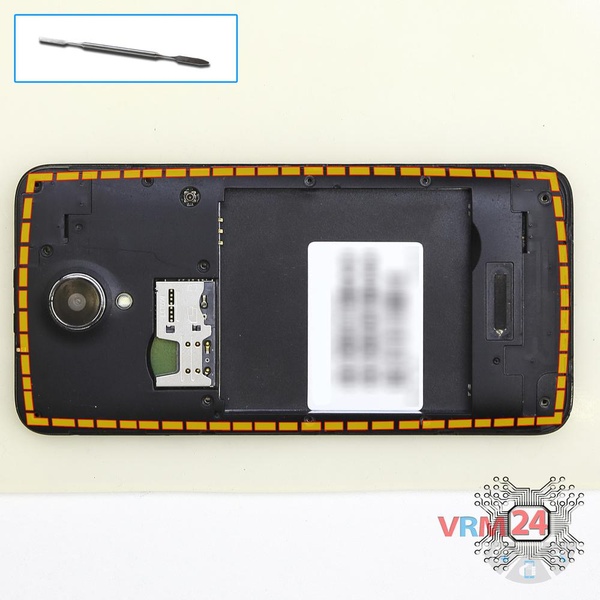

Step 4.

Pry and remove the middle frame.

How to disassemble Explay Phantom, Step 5/1 How to disassemble Explay Phantom, Step 5/2

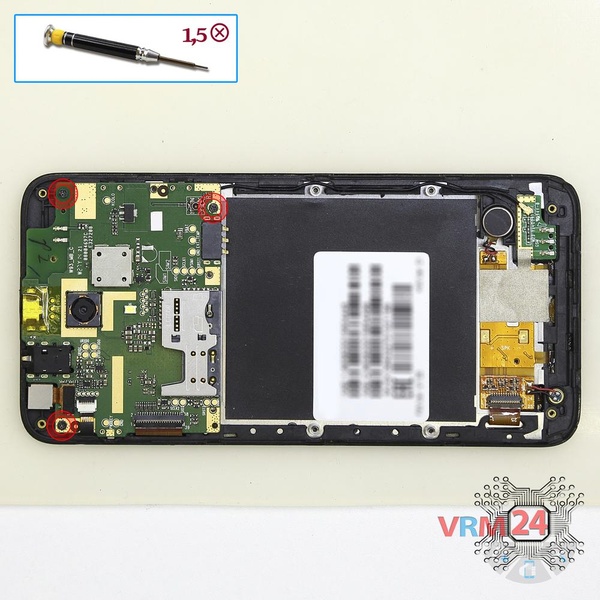

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Explay Phantom, Step 6/1 How to disassemble Explay Phantom, Step 6/2

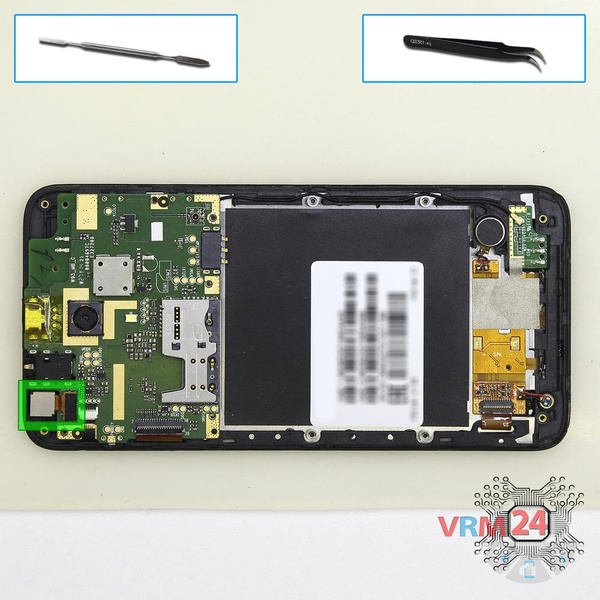

Step 6.

Disconnect connector on the PCB and remove the front (selfie) camera.

How to disassemble Explay Phantom, Step 7/1 How to disassemble Explay Phantom, Step 7/2 How to disassemble Explay Phantom, Step 7/3

Step 7.

Disconnect connectors on the PCB.

How to disassemble Explay Phantom, Step 8/1 How to disassemble Explay Phantom, Step 8/2

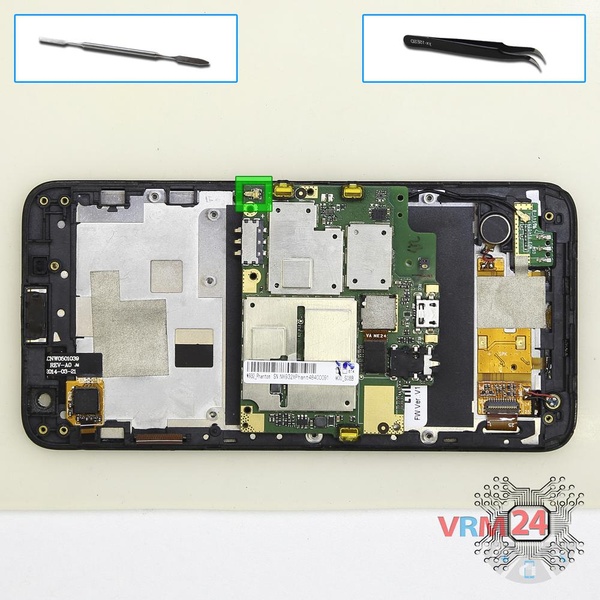

Step 8.

Overturn the board, disconnect the coaxial cable connector and remove it.

How to disassemble Explay Phantom, Step 9/1 How to disassemble Explay Phantom, Step 9/2

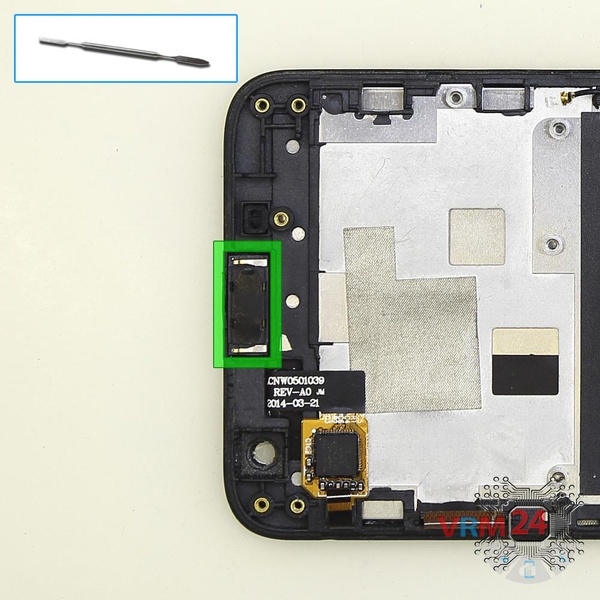

Step 9.

Pry and remove the earpiece (speaker).

How to disassemble Explay Phantom, Step 10/1 How to disassemble Explay Phantom, Step 10/2 How to disassemble Explay Phantom, Step 10/3

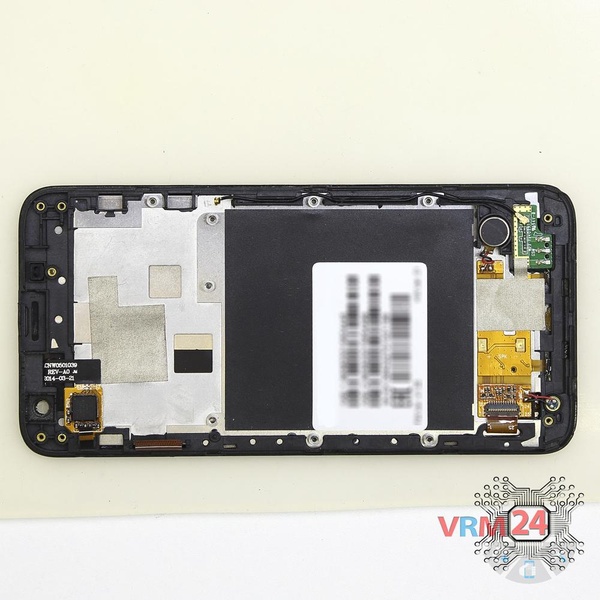

Step 10.

Parts in the frame of the display module.

Detailed disassembly instructions of Explay Phantom in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Explay #Explay Phantom
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Explay Phantom released for markets in different countries.
