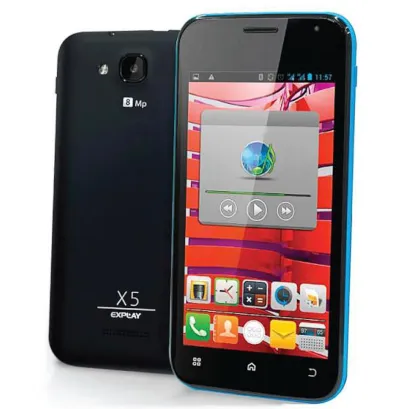

Explay X5
Explay X5
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Explay X5 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Explay X5, Step 1/1 How to disassemble Explay X5, Step 1/2

Step 1.

Open the back cover.

How to disassemble Explay X5, Step 2/1 How to disassemble Explay X5, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Explay X5, Step 3/1 How to disassemble Explay X5, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the frame of the phone.

How to disassemble Explay X5, Step 4/1 How to disassemble Explay X5, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Explay X5, Step 5/1 How to disassemble Explay X5, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the main PCB &1 bolt in the lower board.

How to disassemble Explay X5, Step 6/1 How to disassemble Explay X5, Step 6/2 How to disassemble Explay X5, Step 6/3

Step 6.

Disconnect connectors on the lower PCB and remove it.

How to disassemble Explay X5, Step 7/1 How to disassemble Explay X5, Step 7/2

Step 7.

Disconnect connectors on the PCB and pry up the power & volume button flex cable.

How to disassemble Explay X5, Step 8/1 How to disassemble Explay X5, Step 8/2 How to disassemble Explay X5, Step 8/3

Step 8.

Overturn the main board, disconnect the coaxial cable connector from the inside and remove the board.

How to disassemble Explay X5, Step 9/1 How to disassemble Explay X5, Step 9/2 How to disassemble Explay X5, Step 9/3

Step 9.

Parts in the frame of the display module.

Detailed disassembly instructions of Explay X5 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Explay #Explay X5
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Explay X5 released for markets in different countries.
