Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

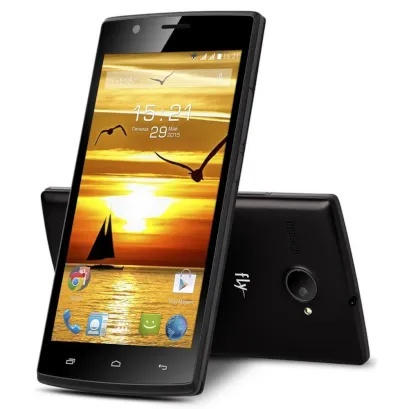

Disassembly/Repair of the mobile device Fly FS501 Nimbus 3 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Fly FS501 Nimbus 3, Step 1/1 How to disassemble Fly FS501 Nimbus 3, Step 1/2

Step 1.

Open the back cover.


How to disassemble Fly FS501 Nimbus 3, Step 2/1 How to disassemble Fly FS501 Nimbus 3, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble Fly FS501 Nimbus 3, Step 3/1 How to disassemble Fly FS501 Nimbus 3, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.


How to disassemble Fly FS501 Nimbus 3, Step 4/1 How to disassemble Fly FS501 Nimbus 3, Step 4/2

Step 4.

Pry and remove the middle frame with the buzzer (speaker).


How to disassemble Fly FS501 Nimbus 3, Step 5/1 How to disassemble Fly FS501 Nimbus 3, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.


How to disassemble Fly FS501 Nimbus 3, Step 6/1 How to disassemble Fly FS501 Nimbus 3, Step 6/2 How to disassemble Fly FS501 Nimbus 3, Step 6/3 How to disassemble Fly FS501 Nimbus 3, Step 6/4 How to disassemble Fly FS501 Nimbus 3, Step 6/5

Step 6.

Disconnect connectors on the PCB and pry up vibration motor & speaker in display frame.


How to disassemble Fly FS501 Nimbus 3, Step 7/1 How to disassemble Fly FS501 Nimbus 3, Step 7/2

Step 7.

Remove the PCB.


How to disassemble Fly FS501 Nimbus 3, Step 8/1 How to disassemble Fly FS501 Nimbus 3, Step 8/2

Step 8.

Parts in the frame of the display module.

Detailed disassembly instructions of Fly FS501 Nimbus 3 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Fly FS501 Nimbus 3 released for markets in different countries.
